DIODES

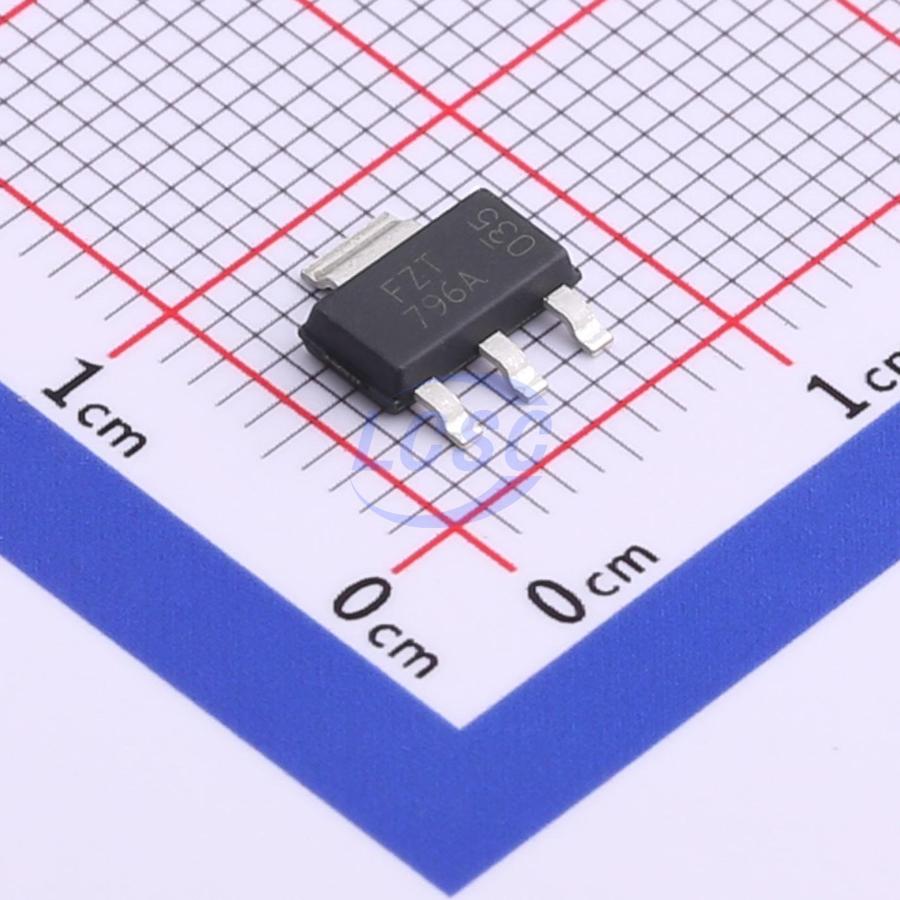

FZT796ATA

Bipolar (BJT) Transistor PNP 200V 500mA 100MHz 3W Surface Mount SOT-223

SOT-223ROHS3 CompliantActive

TRANS PNP 200V 500mA SOT-223

Manufacturer: DIODES
Manufacturer part #: FZT796ATA
Store part #: C526633
Package / case: SOT-223
Category: Single Bipolar Transistors
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

397 in stock

#C526633

Stock & price checked 41 h ago

Quantity	Unit price	Pack price
1+	₹166.78	₹166.78
10+	₹140.46	₹1,404.60
30+	₹127.42	₹3,822.60
100+	₹114.37	₹11,437.00
500+	₹100.02	₹50,010.00
1,000+	₹96.10	₹96,100.00

Quantity (min 1)

1 × ₹166.78

₹166.78

excl. GST

₹196.80 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 1,000 per reel

FZT796ATA

₹166.78 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -55℃~+150℃
Current - Collector Cutoff: 100nA
Transition frequency(fT): 100MHz
Collector - Emitter Voltage VCEO: 200V
Emitter-Base Voltage VEBO: 7V
DC Current Gain: 250
Current - Collector(Ic): 500mA
Pd - Power Dissipation: 3W
Configuration: Standalone
Number: 1 PNP
type: PNP
Vce Saturation(VCE(sat)): 300mV

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.18 g
