OMRON
G5NB-1A-E DC12Power Relay 1 Form A: 1A (SPST-NO) 12V Coil Through Hole,7x20.4mm
From
₹56.61
1,71,288 in stock
OMRONDatasheet (PDF)

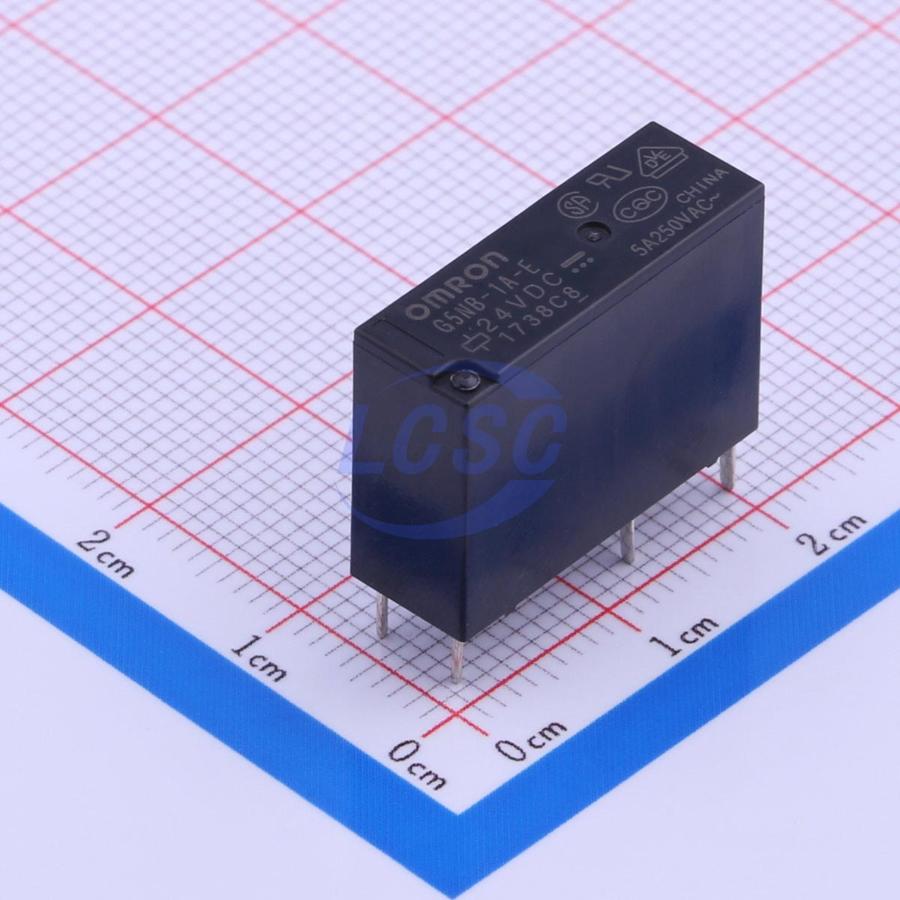

G5NB-1A-E-24VDC
Power Relay 1 Form A: 1A (SPST-NO) 24V Coil Through Hole,7x20.4mm
PopularThrough Hole,20.4x7mmRoHSActive
RELAY POWER SPST-NO 5A 24V
- Manufacturer
- OMRON
- Manufacturer part #
- G5NB-1A-E-24VDC
- Store part #
- C34758
- Package / case
- Through Hole,20.4x7mm
- Category
- Power Relays, Over 2 Amps
- Packaging
- Tray
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,04,557 in stock
#C34758
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹48.37 | ₹48.37 |
| 10+ | ₹40.12 | ₹401.20 |
| 30+ | ₹35.87 | ₹1,076.10 |
| 100+ | ₹32.38 | ₹3,238.00 |
| 500+ | ₹31.16 | ₹15,580.00 |
| 1,000+ | ₹30.34 | ₹30,340.00 |
1 × ₹48.37
₹48.37
excl. GST
₹57.08 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 100 per tray
G5NB-1A-E-24VDC
₹48.37 for 1 + GST
Specifications
- Coil Voltage
- 24V
- Switching Voltage(Max)
- 250V@AC;30V@DC
- Coil Resistance
- 2.88kΩ
- Release Time
- 10ms
- Operate Time
- 10ms
- Length
- 20.4mm
- Height
- 15mm
- Contact Resistance
- 100mΩ
- Number of Pins
- 4
- Coil Type
- Non-Polarized - Single Coil
- Width
- 7mm
- Operating Temperature
- -40℃~+85℃
- Switching Current(Max)
- 5A
- Coil Rated Power
- 200mW
- Contact Rating
- 5A@250VAC;3A@30VDC
- Contact Material
- Silver Alloy (Cd-Free)
- Contact Form
- 1 Set Normally Open: 1A (SPST NO)
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tray
- Standard pack
- 100 / Tray
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.84 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AC5N-S-DC24V#C7423103Zhejiang HKE · Through Hole | Zhejiang HKE | Through Hole | 17 | ₹58.72 · 17 in stock | View |
