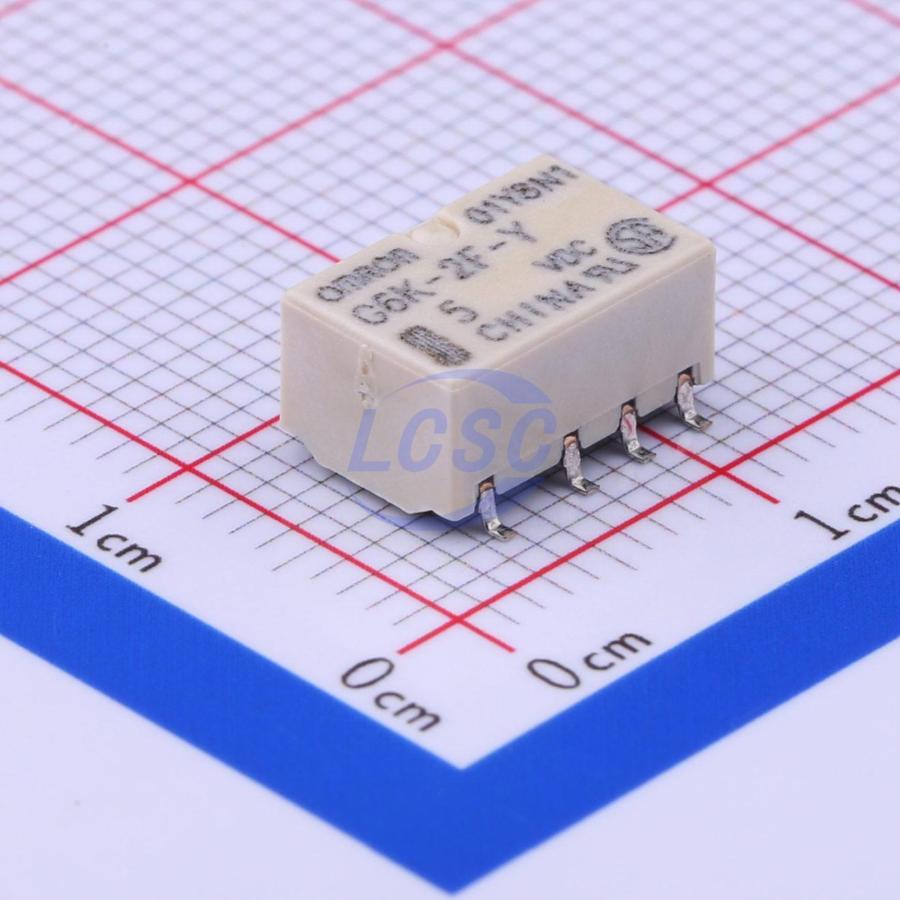

G6K-2F-Y-TR DC5

5V 1A Two sets of changeover: 2C (DPDT) SMD,10x6.5mm Signal Relays, Up to 2 Amps RoHS

PopularSMD,10x6.5mmROHS CompliantActive

Surface Mounting Relay

Manufacturer: OMRON
Manufacturer part #: G6K-2F-Y-TR DC5
Store part #: C47190
Package / case: SMD,10x6.5mm
Category: Signal Relays, Up to 2 Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

58,621 in stock

#C47190

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹138.36	₹138.36
10+	₹122.28	₹1,222.80
30+	₹107.08	₹3,212.40
100+	₹95.79	₹9,579.00
500+	₹91.01	₹45,505.00
900+	₹88.84	₹79,956.00

Quantity (min 1)

1 × ₹138.36

₹138.36

excl. GST

₹163.26 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 900 per reel

G6K-2F-Y-TR DC5

₹138.36 for 1 + GST

Specifications

Coil Resistance: 237Ω
Coil Voltage: 5V
Release Time: 3ms
Operate Time: 3ms
Operating Temperature: -40℃~+70℃
Width: 6.5mm
Contact Resistance: 100mΩ
Length: 10mm
Height: 5.2mm
Contact Rating: 300mA@125VAC;1A@30VDC
Switching Voltage(Max): 125V@AC;60V@DC
Switching Current(Max): 1A
Contact Form: Two sets of changeover: 2C (DPDT)
Coil Rated Power: 100mW
Contact Material: Silver + Gold Plated

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 900 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 1.111 g

Overview

Applications

Telecommunication equipment
Office automation machines
Test and measurement equipment
Building automation equipment
Security equipment
Industrial equipment
Amusement equipment
Home appliances

Key features

Subminiature model as small as 5.2(H)×6.5(W)×10(L) mm is ideal for high-density mounting (G6K(U)-2F(-Y)).
Low profile of 5.2 mm improves mounting efficiency (G6K(U)-2F(-Y)).
Light weight of 0.7 g contributes to higher speed mounting.
Surface mounting terminal models incorporate a unique terminal structure with high infrared irradiation efficiency which allows the terminal temperature to rise easily when mounting the IRS, thus ensuring excellent soldering.
Ensures a dielectric strength of 1,500 VAC and conforms to FCC Part 68 (i.e., withstanding an impulse withstand voltage of 1,500 V for 10×160 μs).
-Y models offer an impulse withstand voltage of 2,500 V for 2×10 μs (conforms to Telcordia specifications) by optimizing the distance between coil and contacts.
Standard model conforms to UL/CSA standards, certified by BSI (EN62368-1).
Models available with a 2.54-mm terminal pitch.
Rated carry current: 2A.

Questions about G6K-2F-Y-TR DC5

What Reliability Standards and Certifications Does the G6K-2F-Y-TR DC5 Meet?

OMRON G6K series relays are UL/CSA certified and BSI certified to EN62368-1 standard. They are designed for long mechanical and electrical life with impulse withstand ratings of 1,500 V (standard) and 2,500 V for -Y models. The relay is RoHS compliant and manufactured under strict quality control, as documented in official certification and datasheet information.

Is the OMRON G6K-2F-Y-TR DC5 Compatible With Other G6K Series Relays or Equivalent Parts?

Yes, the G6K-2F-Y-TR DC5 is part of the OMRON G6K series and is compatible with other relays of similar footprint, coil voltage, and contact configuration. Always verify pin layout, electrical ratings, and mechanical dimensions in the datasheet before selecting equivalent parts.

What Applications Is the G6K-2F-Y-TR DC5 Electronic Component Used For?

This signal relay is commonly used in telecommunications equipment, test and measurement instruments, industrial control systems, and consumer electronics. Its small footprint and reliable contact performance make it ideal for PCB-mounted applications requiring precise signal switching.

What Are the Key Specifications of the OMRON G6K-2F-Y-TR DC5 Relay?

The OMRON G6K-2F-Y-TR DC5 is a low-signal, surface-mount DPDT relay with a 5 V DC coil voltage. Key specifications include 1 A contact rating, compact dimensions (10 × 6.5 × 5.2 mm), low power consumption, high insulation resistance, and stable switching performance for sensitive electronic circuits. Full technical details are available in the official datasheet.
