TECH PUBLICDatasheet (PDF)

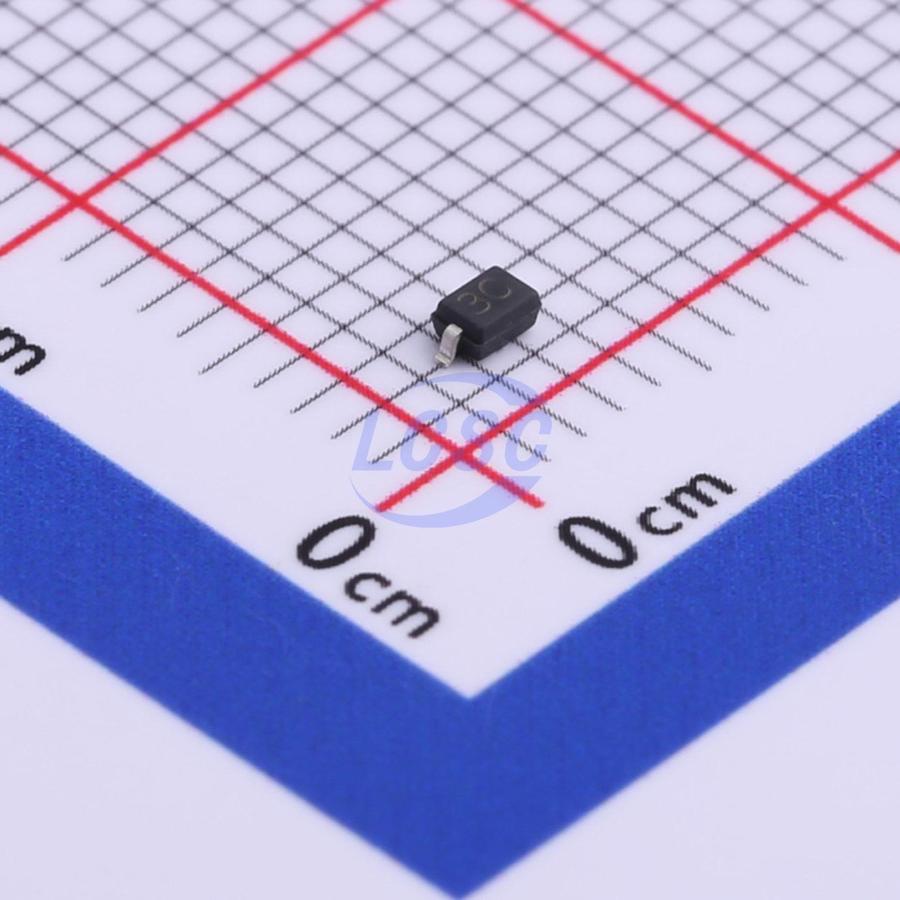

GBLC03C-TP
23VC Clamp ESD DIODE SOD-323
SOD-323RoHSActive
ESD DIODE 3.3VWM 23VC SOD-323
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- GBLC03C-TP
- Store part #
- C558423
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,220 in stock
#C558423
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.52 | ₹110.40 |
| 200+ | ₹4.43 | ₹886.00 |
| 600+ | ₹3.81 | ₹2,286.00 |
| 3,000+ | ₹3.06 | ₹9,180.00 |
| 9,000+ | ₹2.74 | ₹24,660.00 |
| 21,000+ | ₹2.57 | ₹53,970.00 |
20 × ₹5.52
₹110.40
excl. GST
₹130.27 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
GBLC03C-TP
₹110.40 for 20 + GST
Specifications
- Clamping Voltage
- 23V
- Operating Temperature
- -40℃~+85℃
- Peak Pulse Current (Ipp)
- 4A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 100W@8/20us
- Voltage - Breakdown
- 4V
- Number of Channels
- 1
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 200nA
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.053 g
Overview
Applications
- USB Ports
- Smart Phones
- Wireless Systems
- Ethernet10/100/1000Base T
Key features
- 100 W peak pulse power (8/20μs)
- Ultra low capacitance: 0.3pF typical
- Ultra low leakage: nA leel
- Low operating : 3.3V
- Low clamping voltage
- Protects one power line or data line
- Complies with following standards:
- IEC 61000 - 4 - 2 (ESD) immunity test Air discharge: ±20kV Contact discharge: ±15kV
- IEC61000 - 4 - 4 (EFT) 40A (5/50ns)
- RoHS Compliant
