TECH PUBLICDatasheet (PDF)

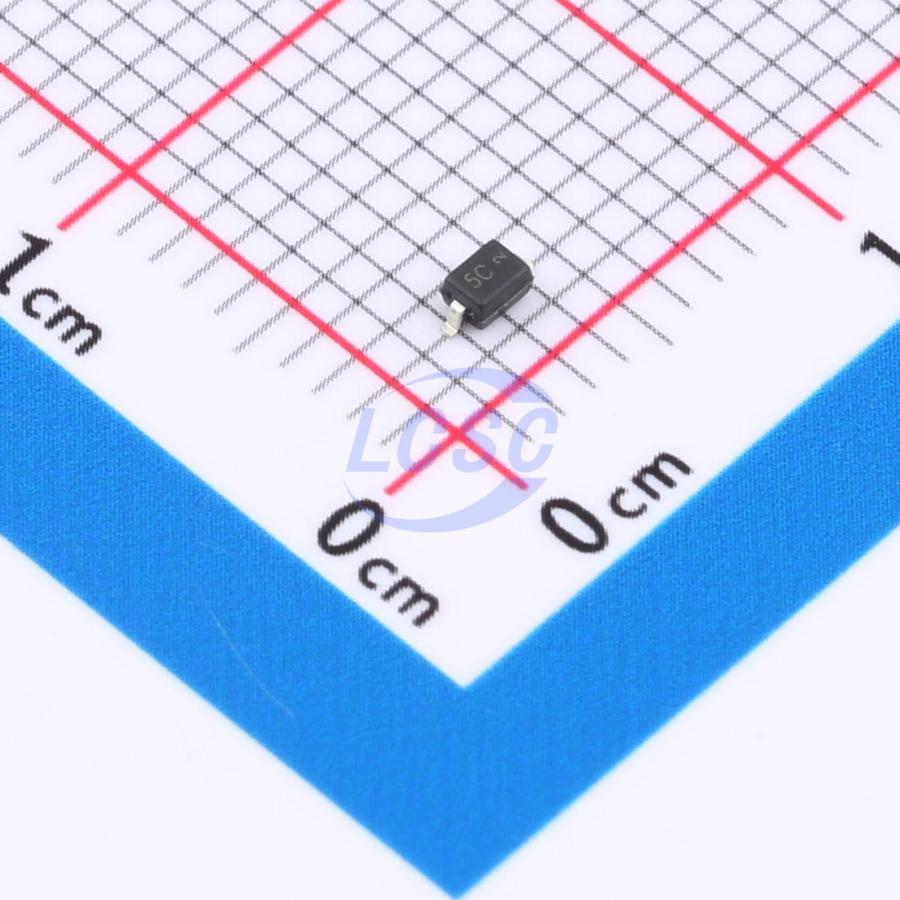

GBLC05C-TP
25VC Clamp 4A@8/20us Ipp ESD DIODE SOD-323
SOD-323RoHSActive
ESD DIODE 5VWM 25VC SOD-323
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- GBLC05C-TP
- Store part #
- C558424
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,730 in stock
#C558424
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.76 | ₹57.60 |
| 100+ | ₹4.60 | ₹460.00 |
| 300+ | ₹4.04 | ₹1,212.00 |
| 3,000+ | ₹3.44 | ₹10,320.00 |
| 6,000+ | ₹3.10 | ₹18,600.00 |
| 9,000+ | ₹2.92 | ₹26,280.00 |
10 × ₹5.76
₹57.60
excl. GST
₹67.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
GBLC05C-TP
₹57.60 for 10 + GST
Specifications
- Clamping Voltage
- 25V
- Peak Pulse Current (Ipp)
- 4A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 120W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 6V
- type
- ESD
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.053 g
Overview
Applications
- Cellular Handsets & Accessories
- Digital Visual Interface (DVI)
- Display Port
- MDDI Ports
- USB Ports
- PCI Express
- Serial ATA
Key features
- Transient protection for data lines to IEC 61000-4-2 (ESD) ±201×1 (air), ±201×1 (contact) IEC 61000-4-4 (EFT) 40A (tp = 5/50ns) Cable Discharge Event (CDE)
- Protects one data or I/O line
- Low capacitance: 0.3pF
- Low clamping voltage
- Low operating voltage: 5.0V
- Solid-state silicon-avalanche technology
