MSKSEMIDatasheet (PDF)

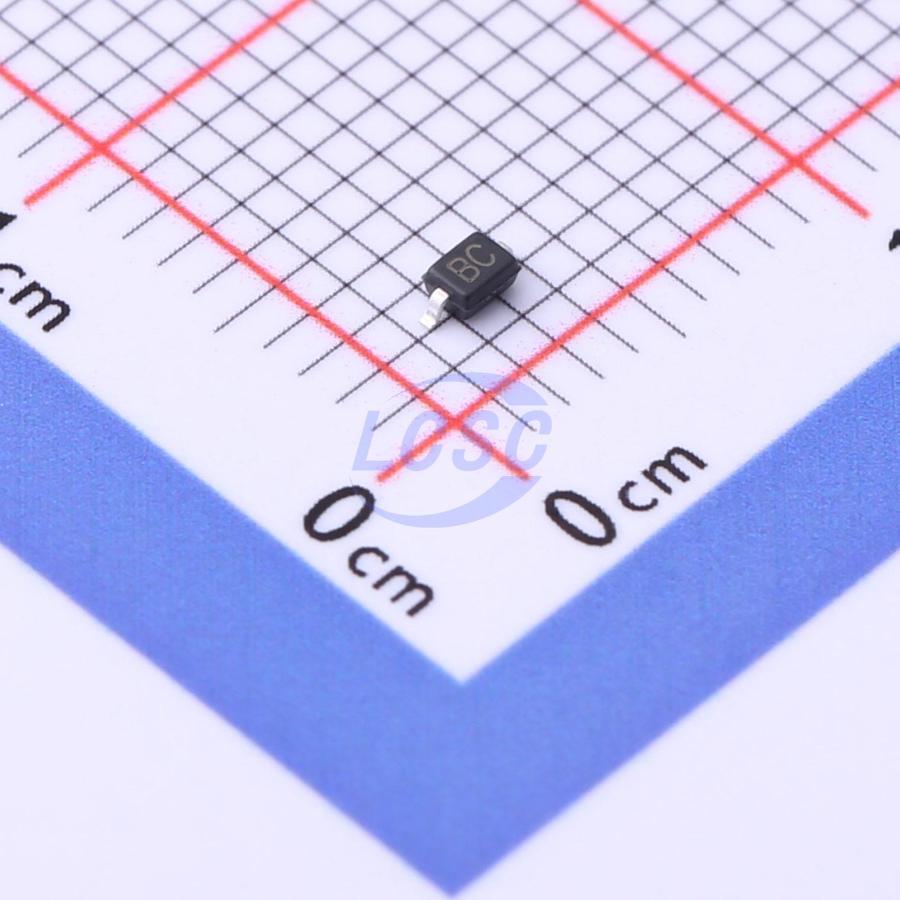

GBLC08CI-MS
19VC Clamp 13A@8/20us Ipp ESD DIODE SOD-323
SOD-323RoHSActive
ESD DIODE 8VWM 19VC SOD-323
- Manufacturer
- MSKSEMI
- Manufacturer part #
- GBLC08CI-MS
- Store part #
- C2982187
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,530 in stock
#C2982187
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.24 | ₹102.40 |
| 100+ | ₹8.15 | ₹815.00 |
| 300+ | ₹7.10 | ₹2,130.00 |
| 3,000+ | ₹5.85 | ₹17,550.00 |
| 6,000+ | ₹5.21 | ₹31,260.00 |
| 9,000+ | ₹4.90 | ₹44,100.00 |
10 × ₹10.24
₹102.40
excl. GST
₹120.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
GBLC08CI-MS
₹102.40 for 10 + GST
Specifications
- Clamping Voltage
- 19V
- Peak Pulse Current (Ipp)
- 13A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 350W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 8.5V
- type
- ESD
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 1nA
- Reverse Stand-Off Voltage (Vrwm)
- 8V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.03 g
Overview
Applications
- USB Ports
- Smart Phones
- Wireless Systems
- Ethernet 10/100/1000 Base T
Key features
- 350W peak pulse power (8/20μs)
- Ultra low capacitance: 1.0pF typical
- Ultra low leakage: nA level
- Low Operating: 8V
- Low clamping voltage
- Protects one power line or data line
- Complies with following standards: – IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV – IEC61000-4-4 (EFT) 40A (5/50ns)
- RoHS Compliant
