TDSEMICDatasheet (PDF)

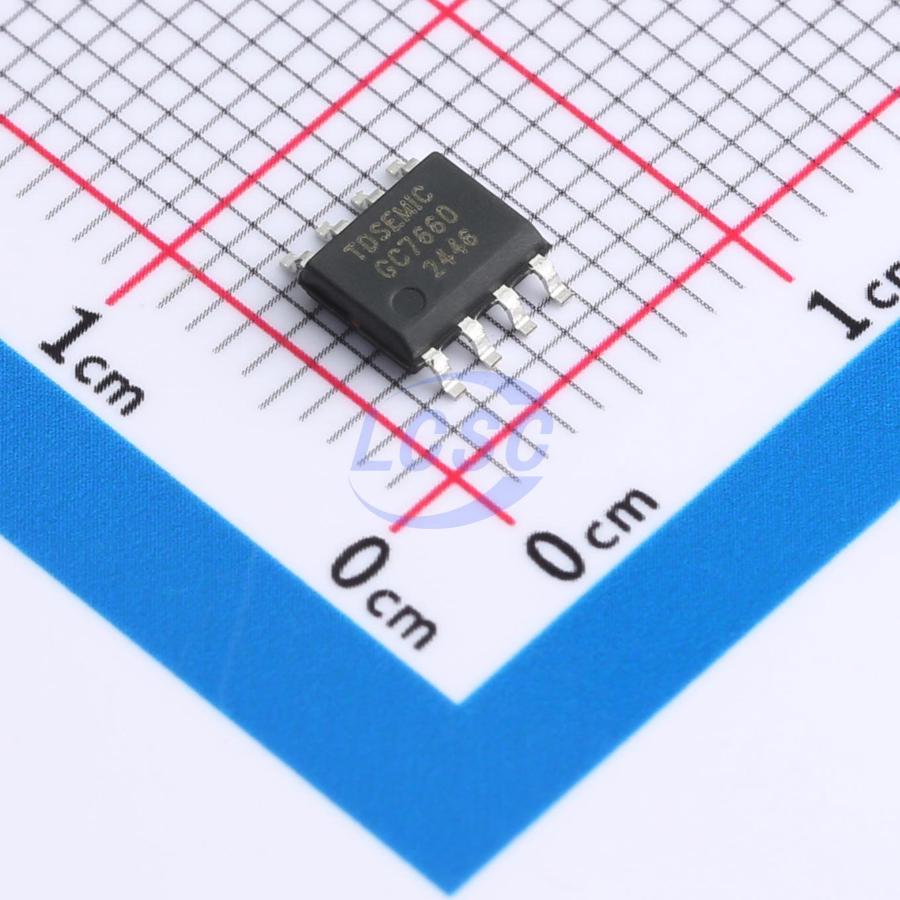

GC7660
5kHz SOP-8 Voltage Regulators - DC DC Switching Regulators RoHS
SOP-8ROHS CompliantActive
DC/DC voltage conversion
- Manufacturer
- TDSEMIC
- Manufacturer part #
- GC7660
- Store part #
- C42421878
- Package / case
- SOP-8
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,625 in stock
#C42421878
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.46 | ₹177.30 |
| 50+ | ₹27.84 | ₹1,392.00 |
| 150+ | ₹24.57 | ₹3,685.50 |
| 500+ | ₹20.51 | ₹10,255.00 |
| 2,500+ | ₹18.69 | ₹46,725.00 |
| 5,000+ | ₹17.61 | ₹88,050.00 |
5 × ₹35.46
₹177.30
excl. GST
₹209.21 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 100 per tube
GC7660
₹177.30 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+65℃
- Frequency - Switching
- 5kHz
- Function
- Inverted;boost converter
- Features
- Charge pump / inverting topology switching;Low ripple / low noise architecture
- Operating Voltage
- 1.5V~5V
- Energy Efficiency
- 98%
- Quiescent Current
- 180uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 100 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.153 g
Overview
GC7660 is a monolithic DC/DC voltage converter IC fabricated in CMOS process. It provides voltage inversion, voltage doubling, voltage division, and multiplied voltage output. The device operates reliably over a supply voltage range of 1.5V to 5V with no external diodes required across the full temperature range. A 10mA output current is available at 0.5V dropout. The BOOST pin can boost the oscillator frequency above the audio band, reducing output ripple and lowering external capacitance requirements. The GC7660 features low quiescent current and high conversion efficiency, integrating an oscillator control circuit and four power MOSFET switches on-chip. Typical applications include negative voltage generation, voltage doubling, and input voltage halving.
Applications
- Generate -5V from +5V logic supply
- Personal communication devices
- LCD display module power supply
- Op-amp split/symmetric power supply generation
- EIA/TIA-232E and EIA/TIA-562 interface power supply
- A/D converter power supply
- Handheld instruments
- Panel meters
Key features
- Compact package
- Operating voltage range: 1.5V ~ 5V
- Typical power conversion efficiency up to 98%
- Supports voltage inversion, voltage doubling, voltage dividing, and multiple voltage outputs
- BOOST pin available for increasing oscillation frequency
- Low no-load current, maximum 180μA at 5V
- No external diode required at high voltage operation
