DIODESDatasheet (PDF)

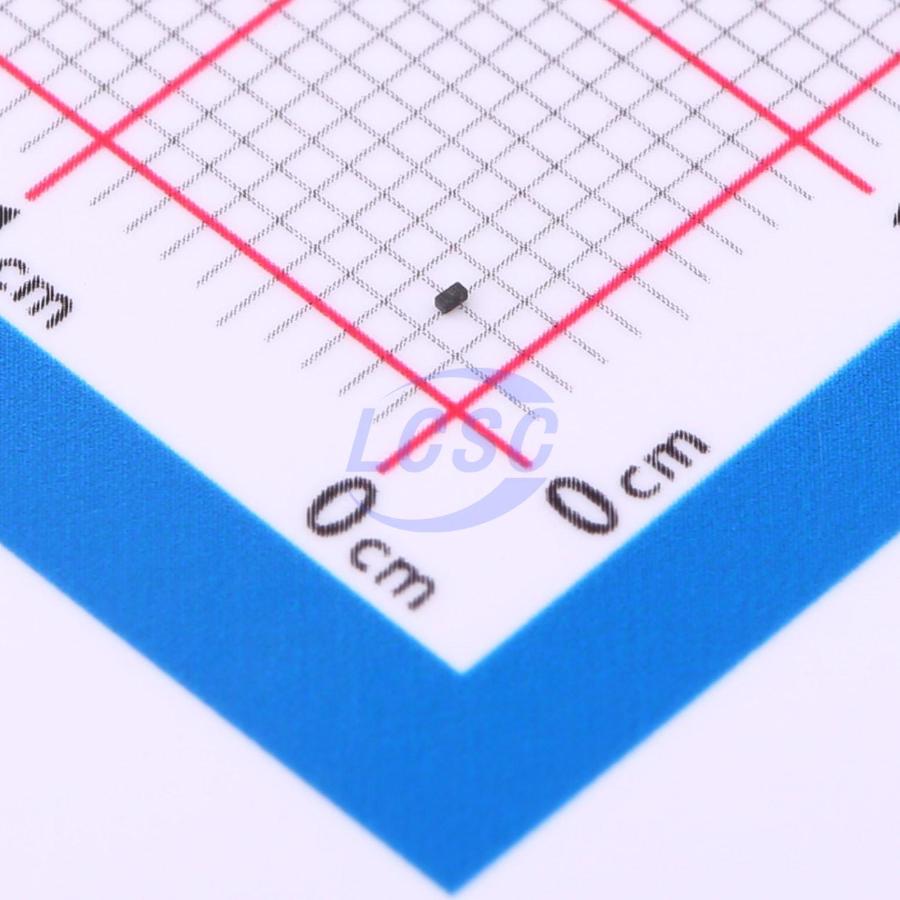

GDZ22LP3-7
Zener Diode 22V 250mW Surface Mount X3-DFN0603-2
X3-DFN0603-2ROHS3 CompliantSold out at source
DIODE ZENER 22V 250mW X3-DFN0603-2
- Manufacturer
- DIODES
- Manufacturer part #
- GDZ22LP3-7
- Store part #
- C3738098
- Package / case
- X3-DFN0603-2
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
120 in stock
#C3738098
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹11.05 | ₹110.50 |
| 100+ | ₹9.33 | ₹933.00 |
| 300+ | ₹8.48 | ₹2,544.00 |
| 1,000+ | ₹7.83 | ₹7,830.00 |
| 5,000+ | ₹7.32 | ₹36,600.00 |
| 10,000+ | ₹7.06 | ₹70,600.00 |
10 × ₹11.05
₹110.50
excl. GST
₹130.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
GDZ22LP3-7
₹110.50 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 250mW
- Reverse Leakage Current (Ir)
- 100nA
- Zener Voltage(Range)
- 20.9V~23.1V
- Zener Voltage(Nom)
- 22V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Sold out at source
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.018 g
Overview
Key features
- Ultra-Small Leadless Surface Mount Package (0.6 x 0.3 mm)
- Ultra-Low Profile Package (0.3 mm)
- Ideally Suited for Automated Assembly Processes
- Low Leakage Current, Suitable for Battery-Powered Applications
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free, "Green" Device
- Qualified to AEC-Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | GDZ22LP3-7#C5244921DIODES · X3-DFN0603-2 | DIODES | X3-DFN0603-2 | 100 | ₹7.30 · 100 in stock | View |
 | GDZ24LP3-7#C5244922DIODES · X3-DFN0603-2 | DIODES | X3-DFN0603-2 | 10 | ₹7.91 · 10 in stock | View |
