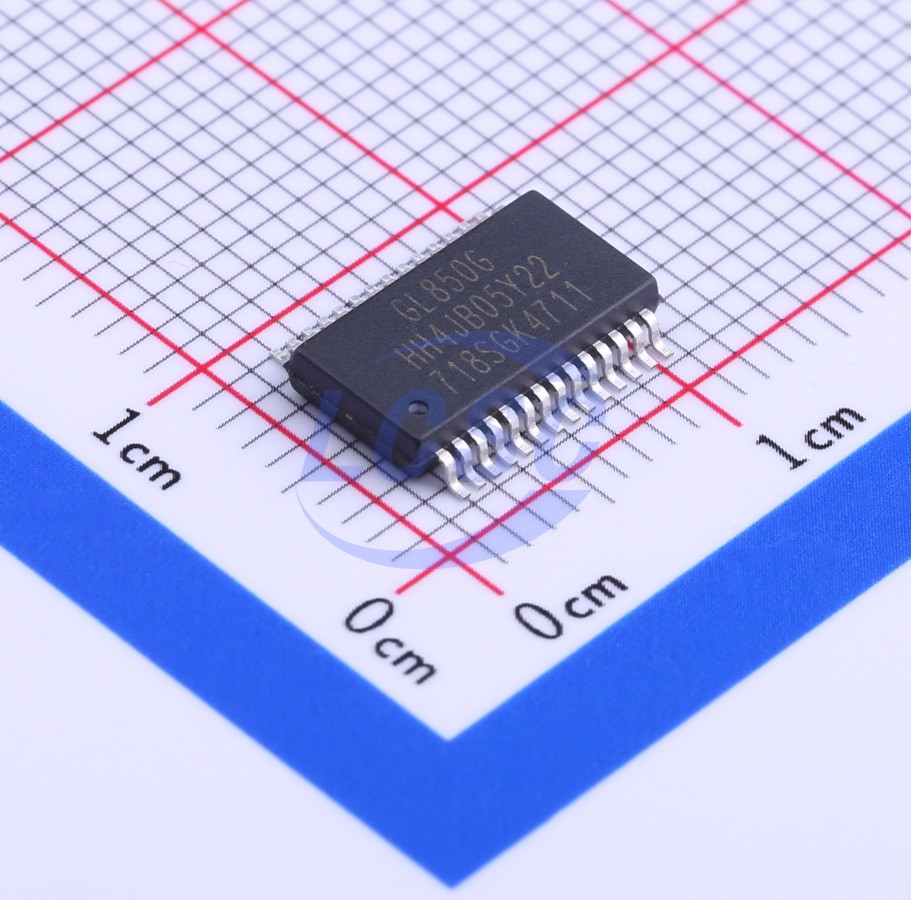

GL850G-HHY22
480Mbps USB 2.0 SSOP-28-208mil Interface Controllers RoHS
USB 2.0 Hub Controller
- Manufacturer
- GENESYS
- Manufacturer part #
- GL850G-HHY22
- Store part #
- C136617
- Package / case
- SSOP-28-208mil
- Category
- Interface Controllers
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
19,916 in stock
#C136617
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹68.44 | ₹68.44 |
| 10+ | ₹54.73 | ₹547.30 |
| 48+ | ₹47.86 | ₹2,297.28 |
| 96+ | ₹41.17 | ₹3,952.32 |
| 480+ | ₹37.03 | ₹17,774.40 |
| 1,008+ | ₹34.86 | ₹35,138.88 |
1 × ₹68.44
₹68.44
excl. GST
₹80.76 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 48 per tube
GL850G-HHY22
₹68.44 for 1 + GST
Specifications
- Operating Temperature
- 0℃~+85℃
- Voltage - Supply
- 4.75V~5.25V;3V~3.6V
- Features
- Internal regulator;Power-on reset;ESD protection;Overcurrent Protection;Low-power mode
- Type
- Hub
- Data Rate
- 480Mbps
- Memory Interface
- I2C
- Quiescent Supply Current
- 538uA
- USB Protocol
- USB 2.0
- Current - Supply
- 70mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 48 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.458 g
Overview
GL850G is an advanced version hub solutions which fully comply with Universal Serial Bus Specification Revision 2.0. GL850G inherits cutting edge technology on cost and power efficient serial interface design. GL850G has proven compatibility, lower power consumption figure and better cost structure above all USB2.0 hub solutions. GL850G provides multiple advantages to simplify board level design that help achieve lowest BOM (Bill of Material) for system integrator. GL850G integrated both 5V to 3.3V and 3.3V to 1.8V voltage drop regulator into single chip, therefore no external LDO required. Also, GL850G’s power enable pin supports both high-enable and low-enable power switch that provides better flexibility on component selection. GL850G embeds an 8-bit RISC processor to manipulate the control/status registers and respond
