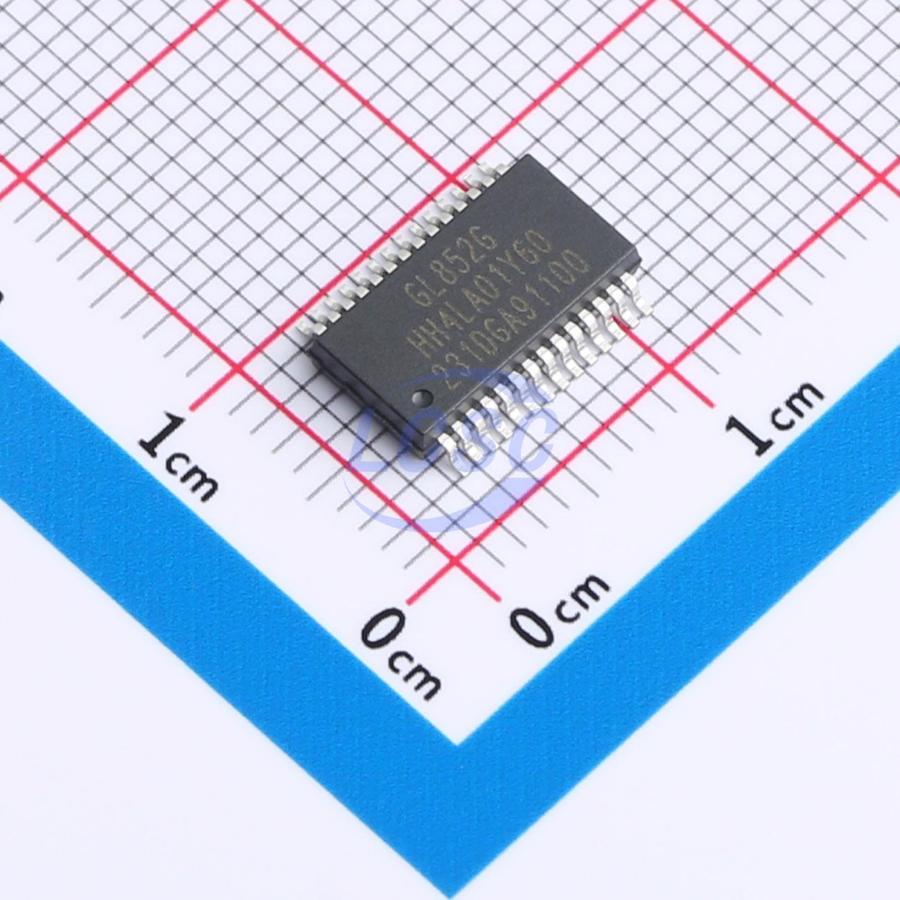

GL852G-HHY60
4 USB Hub 480Mbps USB 2.0 SSOP-28 Interface Controllers RoHS
USB 2.0 Hub Controller
- Manufacturer
- GENESYS
- Manufacturer part #
- GL852G-HHY60
- Store part #
- C7501405
- Package / case
- SSOP-28
- Category
- Interface Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,952 in stock
#C7501405
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹131.53 | ₹131.53 |
| 10+ | ₹106.14 | ₹1,061.40 |
| 30+ | ₹93.55 | ₹2,806.50 |
| 100+ | ₹80.97 | ₹8,097.00 |
| 500+ | ₹70.98 | ₹35,490.00 |
| 1,000+ | ₹67.08 | ₹67,080.00 |
1 × ₹131.53
₹131.53
excl. GST
₹155.21 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
GL852G-HHY60
₹131.53 for 1 + GST
Specifications
- Operating Temperature
- 0℃~+70℃
- Voltage - Supply
- 4.5V~5.5V;3.3V
- Number of ports
- 4
- Features
- Power-on reset;Low-power mode;Built-in clock generator
- Applications Function
- USB Hub
- Data Rate
- 480Mbps
- Quiescent Supply Current
- 1.5mA
- USB Protocol
- USB 2.0
- Current - Supply
- 70mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.667 g
Overview
GL852G-60 is an advanced MTT hub solution fully compliant with Universal Serial Bus Specification Revision 2.0. The device integrates 5V-to-3.3V and 3.3V-to-1.8V LDOs, eliminating the need for external LDOs. It incorporates an 8-bit RISC processor to manage control/status registers and respond to requests from the USB host. The firmware controls its GPIO pins to access an external EEPROM, enabling customized PID and VID configured by the host in the external EEPROM. If no external EEPROM is present, the device defaults to the settings stored in the internal mask ROM. The device offers design flexibility, allowing complex configurations — such as PID, VID, and downstream port count settings — to be easily implemented by programming an external EEPROM or via SMBUS mode. GL852G-60 is a fully featured solution supporting both individual and ganged modes for power management.
Key features
- Fully compliant with USB 2.0 specification
- Supports high-speed, full-speed, and low-speed data transfer
- Integrated 5V to 3.3V and 3.3V to 1.8V LDO regulators
- Supports external EEPROM and SMBUS interface for custom product ID, vendor ID, and port configuration
- Built-in 8-bit RISC processor
- Available in 28-pin and 48-pin package options
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | GL852G-HHG12#C136618GENESYS · SSOP-28-208mil | GENESYS | SSOP-28-208mil | On request | Price on request | Quote |
