GUQIAO Microelectronics

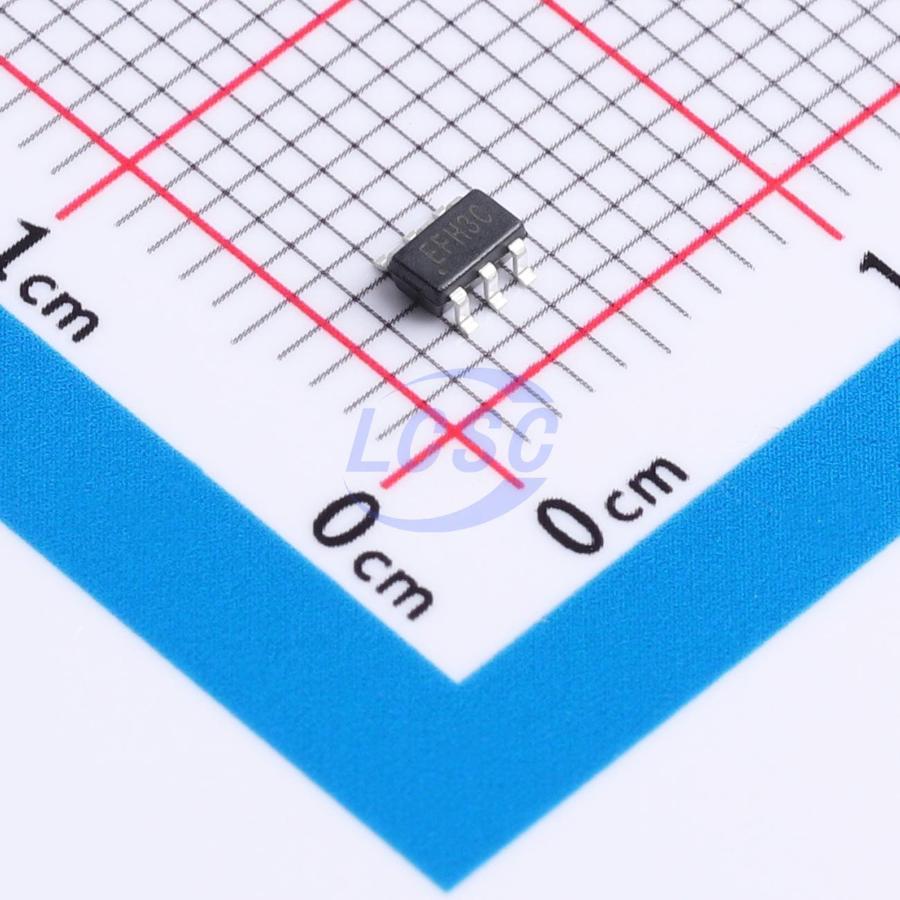

GP3134

Step-down type 600kHz Adjustable 750mV~16V 3A SOT-23-6 Voltage Regulators - DC DC Switching Regulators

SOT-23-6RoHSActive

Manufacturer: GUQIAO Microelectronics
Manufacturer part #: GP3134
Store part #: C48997205
Package / case: SOT-23-6
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,695 in stock

#C48997205

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹12.45	₹62.25
50+	₹9.84	₹492.00
150+	₹8.55	₹1,282.50
500+	₹7.57	₹3,785.00
3,000+	₹6.79	₹20,370.00
6,000+	₹6.39	₹38,340.00

Quantity (min 5, multiples of 5)

5 × ₹12.45

₹62.25

excl. GST

₹73.46 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

GP3134

₹62.25 for 5 + GST

Specifications

Operating Temperature: -40℃~+85℃
Function: Step-down type
Frequency - Switching: 600kHz
Number of Outputs: 1
Features: Cycle-by-cycle current limiting;Hiccup current limiting;Light load efficient mode;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 4.5V~16V
Switch tube (built-in/external): Built-in
Output Voltage: 750mV~16V
Output Current: 3A
Quiescent Current: 600uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.047 g

Overview

GP3134 is a high-frequency, synchronous rectified, step-down switching mode converter with integrated power MOSFETs. It delivers 3A continuous output current over a wide input voltage range with excellent load and line regulation. The ECOT control mode provides ultra-fast transient response, simplified loop design, and very tight output regulation. The GP3134 requires a minimal number of off-the-shelf external components and comes in a space-saving SOT23-6 package.
