GUQIAO MicroelectronicsDatasheet (PDF)

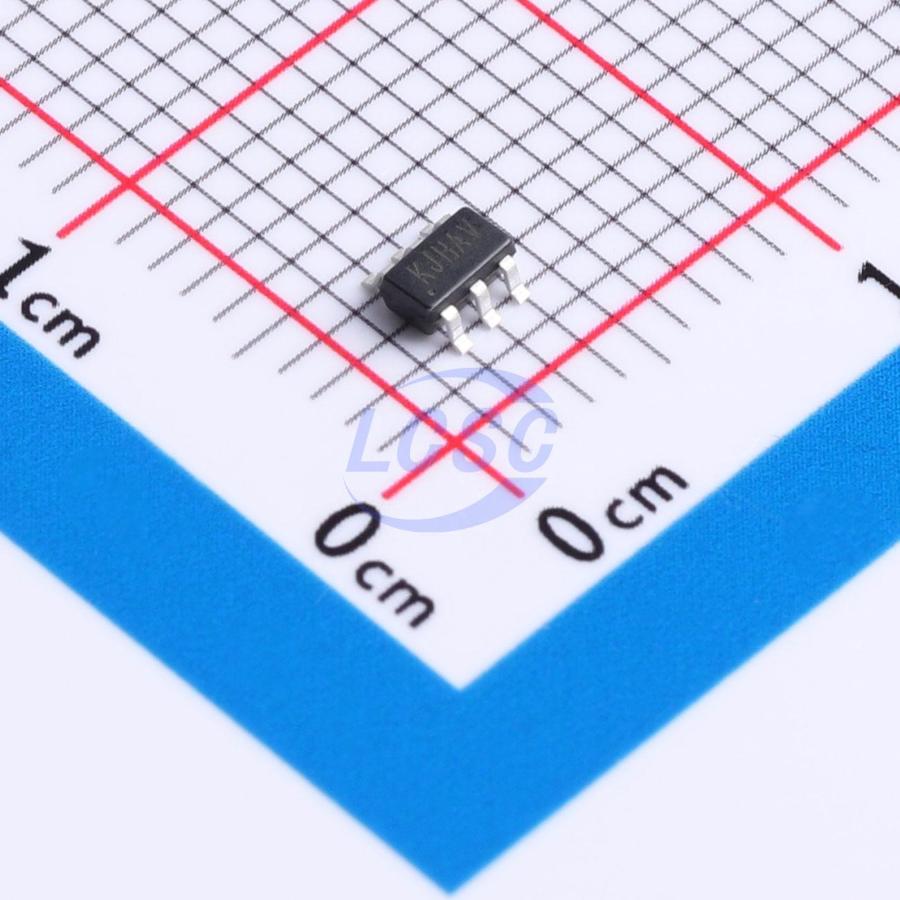

GP3501
1.2MHz Boost Adjustable 4A 200mV~18V SOT-23-6 Voltage Regulators - DC DC Switching Regulators
SOT-23-6RoHSActive
- Manufacturer
- GUQIAO Microelectronics
- Manufacturer part #
- GP3501
- Store part #
- C48997202
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,300 in stock
#C48997202
Stock & price checked 24 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.69 | ₹68.45 |
| 50+ | ₹10.84 | ₹542.00 |
| 150+ | ₹9.39 | ₹1,408.50 |
| 500+ | ₹8.32 | ₹4,160.00 |
| 3,000+ | ₹7.46 | ₹22,380.00 |
| 6,000+ | ₹7.03 | ₹42,180.00 |
5 × ₹13.69
₹68.45
excl. GST
₹80.77 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
GP3501
₹68.45 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 1.2MHz
- Function
- Boost
- Number of Outputs
- 1
- Features
- Overcurrent Protection;Light load efficient mode
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 2.3V~5.5V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 4A
- Output Voltage
- 200mV~18V
- Quiescent Current
- 150uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.047 g
Overview
GP3501 is a highly integrated boost converter designed for applications requiring high-voltage and high-efficiency solutions. The device integrates a 20V power switch, capable of generating up to 18V output from a lithium-ion battery or two series-connected alkaline batteries. The device operates at a switching frequency of 1.2MHz, allowing the use of small external components. GP3501 features a typical switch current limit of 4A and a built-in 1.5ms soft-start time to limit inrush current. The device also implements output short-circuit protection, output overvoltage protection, and thermal shutdown. GP3501 is available in a compact SOT23-6 package.
Applications
- Wearable devices
- Battery-powered devices
- Portable medical devices
Key features
- 2.3V to 5.5V input voltage
- Up to 18V output voltage
- Integrated 60mΩ power MOSFET
- 1.2MHz fixed switching frequency
- Internal 4A switch current limit
- Power-saving mode under light load
- Internal 1.5ms soft-start time
- Up to 85% efficiency at 3.6V input, 12V output
- Output short-circuit protection
- Output overvoltage protection
- Thermal shutdown protection
- Output voltage adjustable from 0.2V
- -40℃ to +85℃ temperature range
- Available in SOT23-6 package
