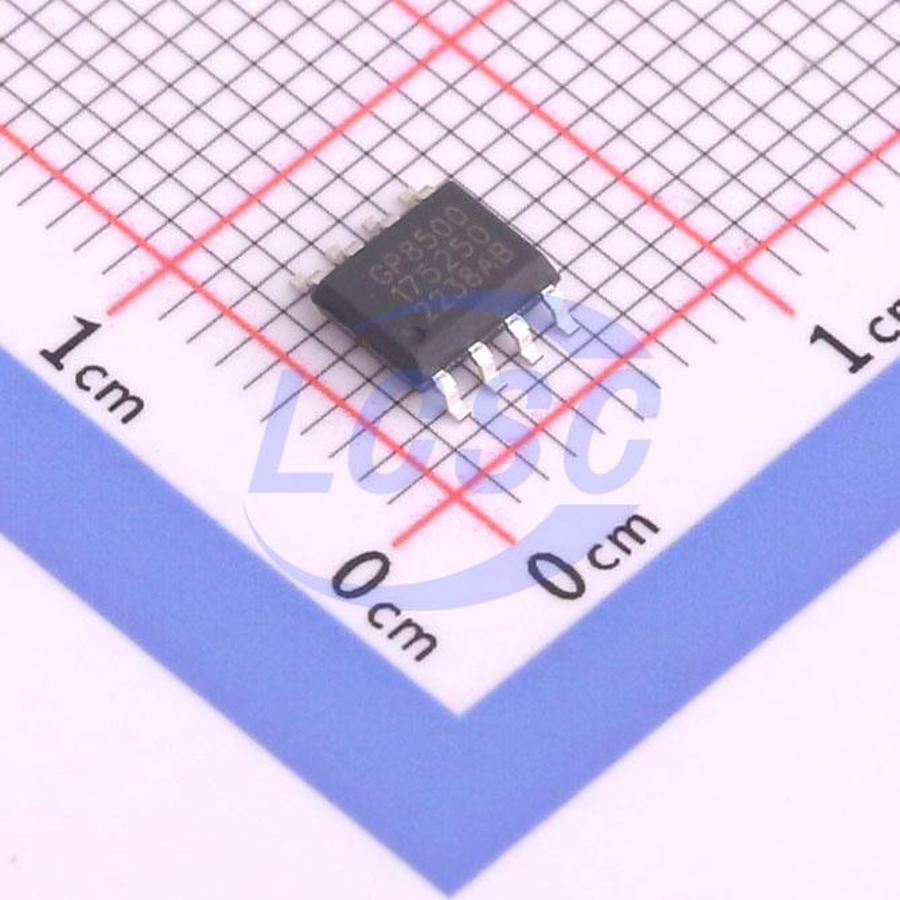

GP8500-TC50-SW

2ms 2.7V~5.5V SOP-8 Digital to Analog Converters (DAC) RoHS

SOP-8ROHS CompliantActive

12bit DAC 0%-100%PWM to 0-2.5V/0-VCC

Manufacturer: Guestgood
Manufacturer part #: GP8500-TC50-SW
Store part #: C5297478
Package / case: SOP-8
Category: Digital to Analog Converters (DAC)
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

951 in stock

#C5297478

Stock & price checked 44 h ago

Quantity	Unit price	Pack price
1+	₹218.72	₹218.72
10+	₹179.85	₹1,798.50
30+	₹158.34	₹4,750.20
100+	₹134.02	₹13,402.00
500+	₹120.33	₹60,165.00
1,000+	₹115.55	₹1,15,550.00

Quantity (min 1)

1 × ₹218.72

₹218.72

excl. GST

₹258.09 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

GP8500-TC50-SW

₹218.72 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Settling Time: 2ms
Quiescent Current (Iq): 2mA
Operating Temperature: -40℃~+85℃
Voltage - Supply: 2.7V~5.5V
Function: Output short-circuit protection;Output enable control;Built-in reference source
Resolution (Bits): 12;-
Number of Channels: 1

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.11 g

Overview

GP8500 is a PWM-to-analog signal converter, functionally equivalent to a DAC with PWM input and analog voltage output. The device linearly converts PWM signals with duty cycles from 0% to 100% into analog voltages of 0–2.5V or 0–VCC, with output voltage accuracy better than 0.2%. It supports input PWM signal frequencies ranging from 50Hz to 50KHz, with an input high-level range of 2.7V–5.5V. The internal reference voltage can be selected via the REFEN signal to determine the output voltage range. Typical output voltage error is 0.2% and linearity error is 0.1%. The device features output short-circuit protection — when the output pin is shorted to ground, it enters protection mode and disables the output. Supply voltage range is 2.7V–5.5V, power consumption is below 2mA, startup time is less than 2ms, and operating temperature range is -40℃ to 85℃.

Applications

General-purpose signal conversion
Motor speed control
LED dimming
Inverter
Power supply
Industrial analog signal isolation

Key features

Converts 0%–100% duty cycle PWM input to 0–2.5V or 0–VCC analog voltage output with linear conversion.
Input signal duty cycle range: 0%–100%.
Input PWM signal frequency range: 50Hz to 50KHz.
Input PWM signal high level: 2.7V–5.5V.
Output voltage error: 0.2% typical.
Output voltage linearity error: 0.1% typical.
Output short-circuit protection.
Supply voltage range: 2.7V–5.5V.
Power consumption: <2mA.
Startup time: <2ms.
Operating temperature range: -40℃ to 85℃.
