GRDatasheet (PDF)

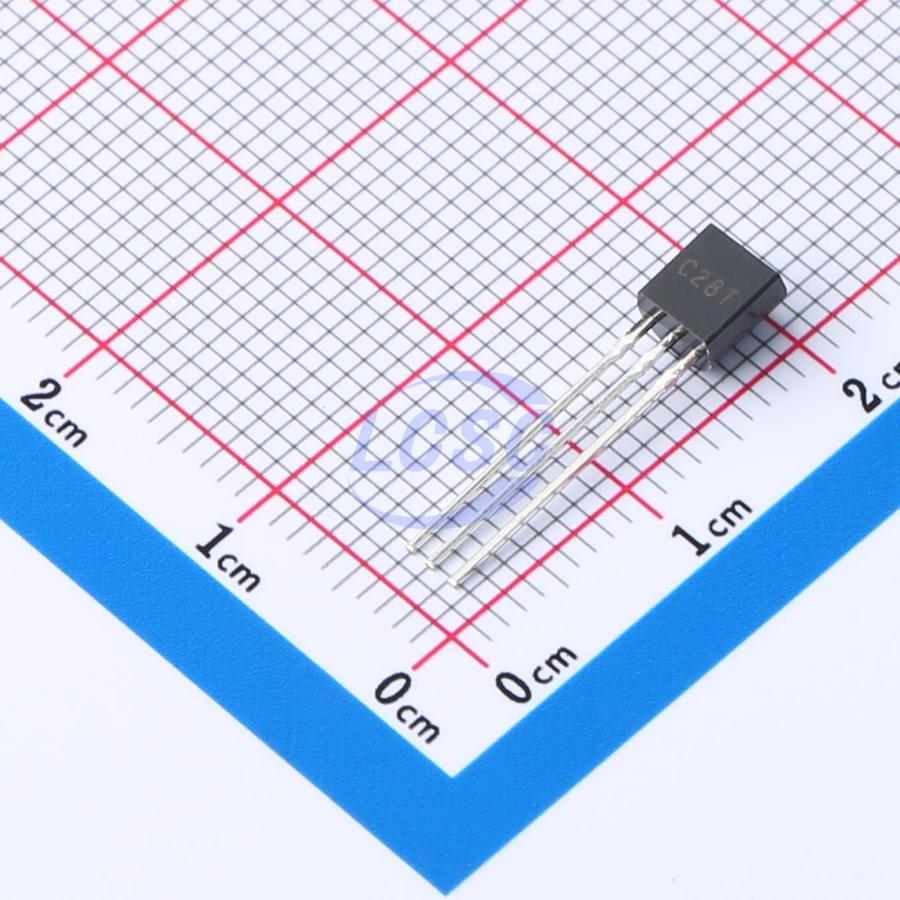

GR2188A28TG
Boost Switching Regulator IC Fixed 2.8V 1 Output 100mA TO-92-3
TO-92-3RoHSActive
Synchronous rectification DC-DC converter
- Manufacturer
- GR
- Manufacturer part #
- GR2188A28TG
- Store part #
- C19631821
- Package / case
- TO-92-3
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,335 in stock
#C19631821
Stock & price checked 18 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.76 | ₹73.80 |
| 50+ | ₹11.67 | ₹583.50 |
| 150+ | ₹10.12 | ₹1,518.00 |
| 1,000+ | ₹8.97 | ₹8,970.00 |
| 2,000+ | ₹8.03 | ₹16,060.00 |
| 5,000+ | ₹7.57 | ₹37,850.00 |
5 × ₹14.76
₹73.80
excl. GST
₹87.08 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per bag
GR2188A28TG
₹73.80 for 5 + GST
Specifications
- Operating Temperature
- -20℃~+70℃
- Frequency - Switching
- 250kHz
- Function
- Boost
- Number of Outputs
- 1
- Output Type
- Fixed
- Topology
- Boost
- Operating Voltage
- 900mV~5V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 100mA
- Output Voltage
- 2.8V
- Quiescent Current
- 15uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Bag-packed
- Standard pack
- 1,000 / Bag
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.199 g
Overview
The GR2188Axx series are PFM synchronous rectification DC/DC boost converters with low quiescent current, fabricated using CMOS process. Leveraging advanced circuit design and manufacturing processes, these devices significantly reduce the inherent noise of switching circuits and minimize interference to surrounding circuitry, making them ideal for battery-powered equipment and instruments.
Applications
- Electronic devices powered by 1–3 cell batteries
- LED flashlights, LED lamps, LED backlights
- Portable devices: wireless mice, wireless keyboards, cameras, camcorders, PDAs, handheld phones, electronic toys
Key features
- Low power consumption: 15μA (typical)
- Simple peripheral components
- Wide operating voltage range: 0.9V~5V
- High accuracy output: ±2.5%
- Output voltage range: 1.8V~3.6V (in 0.1V steps)
- Package types: SOT23-3, SOT23-5, SOT89-3
