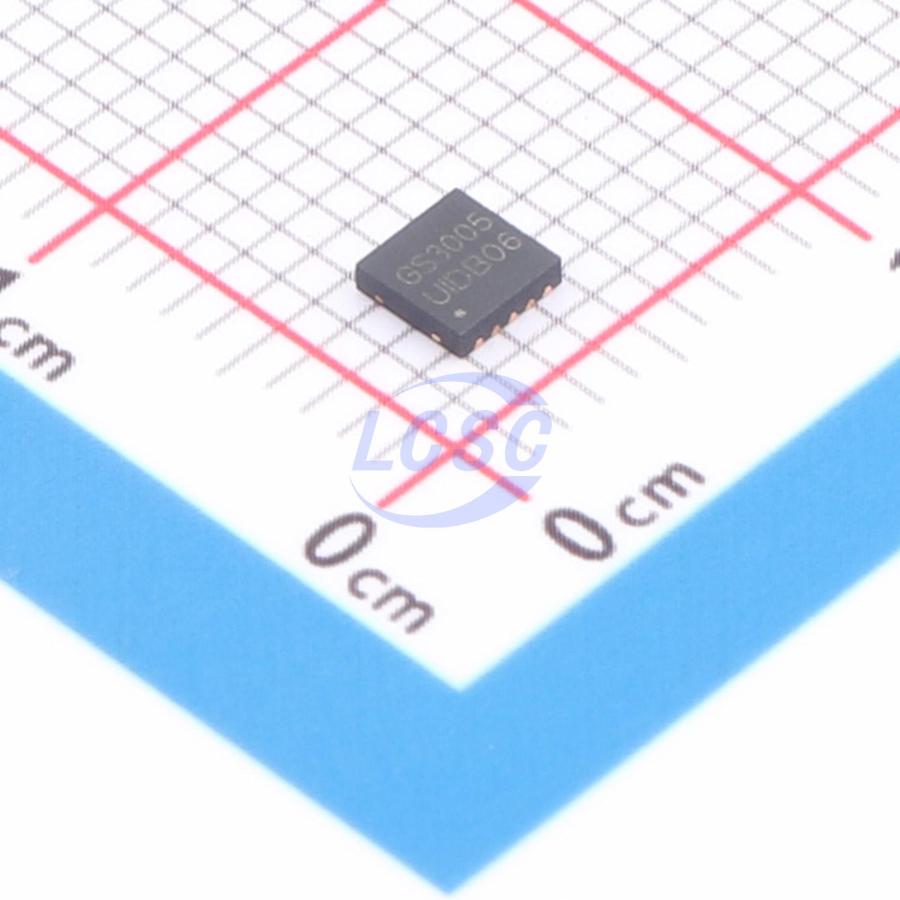

Gainsil

GS3005-FR

2 1.8V~5.5V 1.9Ω@2.7V DFN-10(3x3) Analog Switches, Multiplexers, Demultiplexers

DFN-10(3x3)RoHSActive

Manufacturer: Gainsil
Manufacturer part #: GS3005-FR
Store part #: C52211854
Package / case: DFN-10(3x3)
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,965 in stock

#C52211854

Stock & price checked 32 h ago

Quantity	Unit price	Pack price
5+	₹37.24	₹186.20
50+	₹29.41	₹1,470.50
150+	₹26.05	₹3,907.50
500+	₹21.86	₹10,930.00
2,500+	₹19.98	₹49,950.00
5,000+	₹18.87	₹94,350.00

Quantity (min 5, multiples of 5)

5 × ₹37.24

₹186.20

excl. GST

₹219.72 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

GS3005-FR

₹186.20 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃
Features: Glitch-free switching
Number of Channels: 2
Voltage - Supply: 1.8V~5.5V
Ron: 1.9Ω@2.7V
Con: 73pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.118 g

Overview

The GS3005 is low on-resistance (0.8Ω), fast single-pole double-throw (SPDT) CMOS switch with operation range +1.8V~ +5.5V. The GS3005 is designed for low operating voltage, high current switching of signal gating, chopping, modulation or demodulation (modem), and speaker output for cell phone applications. The device contains a break-before-make (BBM) feature. The control input, IN, tolerates input drive signals up to 5.5V, independent of supply voltage. All devices are specified for the temperature range of -40°C to +125°C. The GS3005 Dual is available in Green TDFN-3X3-10L and MSOP-10 packages.
