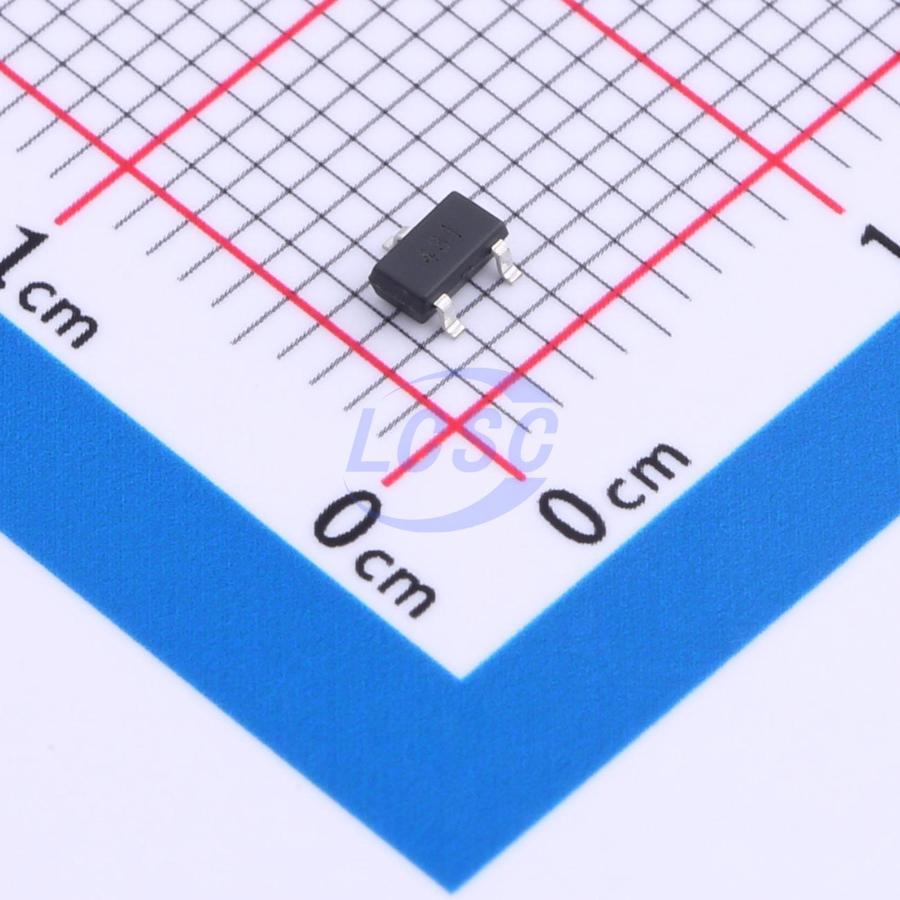

Gainsil

GS431-TR

2.5V~36V ±0.4% 2V~36V 100mA Adjustable SOT-23 Voltage Reference

SOT-23RoHSActive

Adjustable Precision Shunt Regulators

Manufacturer: Gainsil
Manufacturer part #: GS431-TR
Store part #: C2927681
Package / case: SOT-23
Category: Voltage Reference
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,950 in stock

#C2927681

Stock & price checked 36 h ago

Quantity	Unit price	Pack price
10+	₹10.23	₹102.30
100+	₹8.16	₹816.00
300+	₹7.12	₹2,136.00
3,000+	₹6.02	₹18,060.00
6,000+	₹5.40	₹32,400.00
9,000+	₹5.08	₹45,720.00

Quantity (min 10, multiples of 10)

10 × ₹10.23

₹102.30

excl. GST

₹120.71 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

GS431-TR

₹102.30 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 2.5V~36V
Tolerance: ±0.4%
Voltage - Supply: 2V~36V
Minimum Cathode Current for Regulation: 1mA
Reference Type: Parallel
Output Current: 100mA
Operating Temperature: -40℃~+125℃
Output Type: Adjustable

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.05 g

Overview

The GS431 is a three-terminal adjustable shunt regulator with guaranteed thermal stability over a full operation range. It features sharp turn-on characteristics, low temperature coefficient and low output impedance, which make it ideal substitute for Zener diode in applications such as switching power supply, charger and other adjustable regulators. The output voltage of GS431 can be set to any value between VREF (2.5V) and the corresponding maximum cathode voltage (36V). The GS431 precision reference is offered in two voltage tolerance: 0.4% and 0.8%. This IC is available in SOT23 package.
