GainsilDatasheet (PDF)

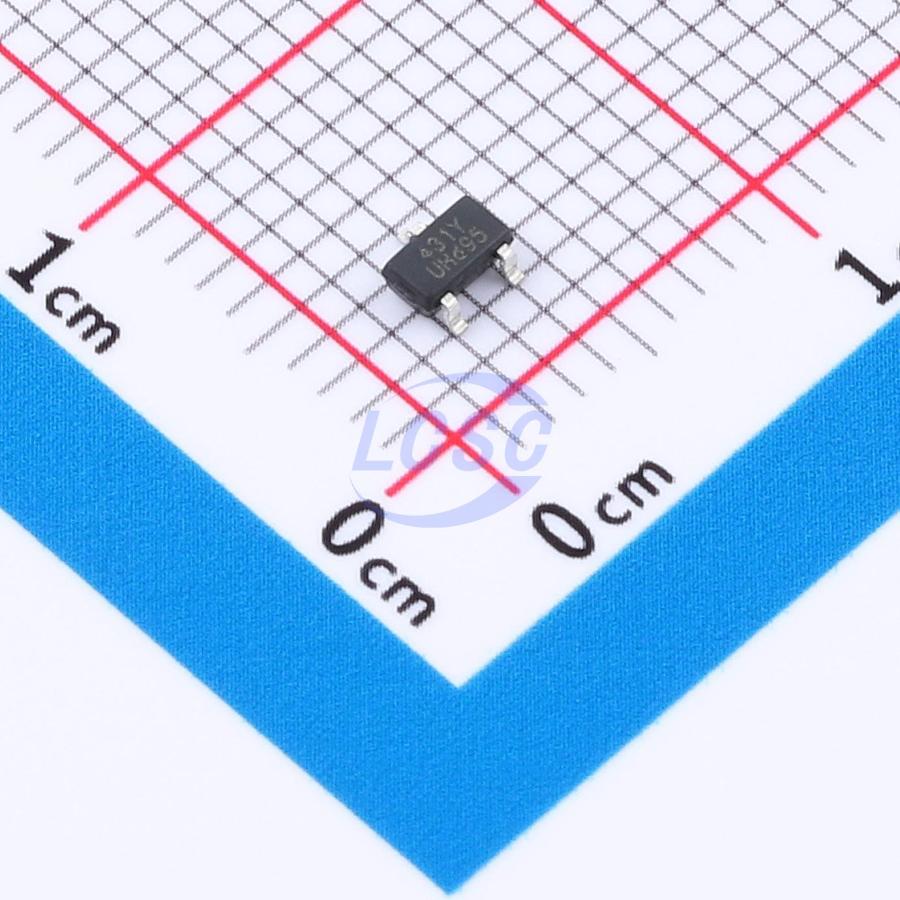

GS431Y-TR
2.5V~36V 2.5V~36V 100mA Adjustable SOT-23 Voltage Reference
SOT-23RoHSActive
- Manufacturer
- Gainsil
- Manufacturer part #
- GS431Y-TR
- Store part #
- C49326393
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C49326393
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.62 | ₹63.10 |
| 50+ | ₹10.03 | ₹501.50 |
| 150+ | ₹8.73 | ₹1,309.50 |
| 500+ | ₹7.75 | ₹3,875.00 |
| 3,000+ | ₹6.97 | ₹20,910.00 |
| 6,000+ | ₹6.59 | ₹39,540.00 |
5 × ₹12.62
₹63.10
excl. GST
₹74.46 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
GS431Y-TR
₹63.10 for 5 + GST
Specifications
- Output Voltage
- 2.5V~36V
- Voltage - Supply
- 2.5V~36V
- Minimum Cathode Current for Regulation
- 400uA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -40℃~+125℃
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.048 g
Overview
GS431/GS431Y is a three-terminal adjustable shunt regulator with guaranteed thermal stability over the entire operating range. It features sharp turn-on characteristics, low temperature coefficient, and low output impedance, making it an ideal replacement for Zener diodes in applications such as switching power supplies, chargers, and other adjustable regulators. The output voltage of the GS431/GS431Y can be set to any value between VREF (2.5V) and the corresponding maximum cathode voltage (36V). This precision reference offers two voltage tolerance options: 0.4% and 0.8%. The IC is available in a SOT23 package.
Applications
- Charger
- Voltage adapter
- Switching power supply
- Graphics card
- Precision voltage reference
Key features
- Programmable precision output voltage range: 2.5V ~ 36V, single supply: 2.0V ~ 36V
- High stability with capacitive loads
- Low temperature drift: typical 4.5mV
- Low equivalent full-range temperature coefficient: typical 20PPM/°C
- Sink current capability: 1mA ~ 100mA
- Low output noise
- Wide operating temperature range: -40°C ~ +125°C
- Small package: GS431/GS431Y in SOT23 package
