R+ODatasheet (PDF)

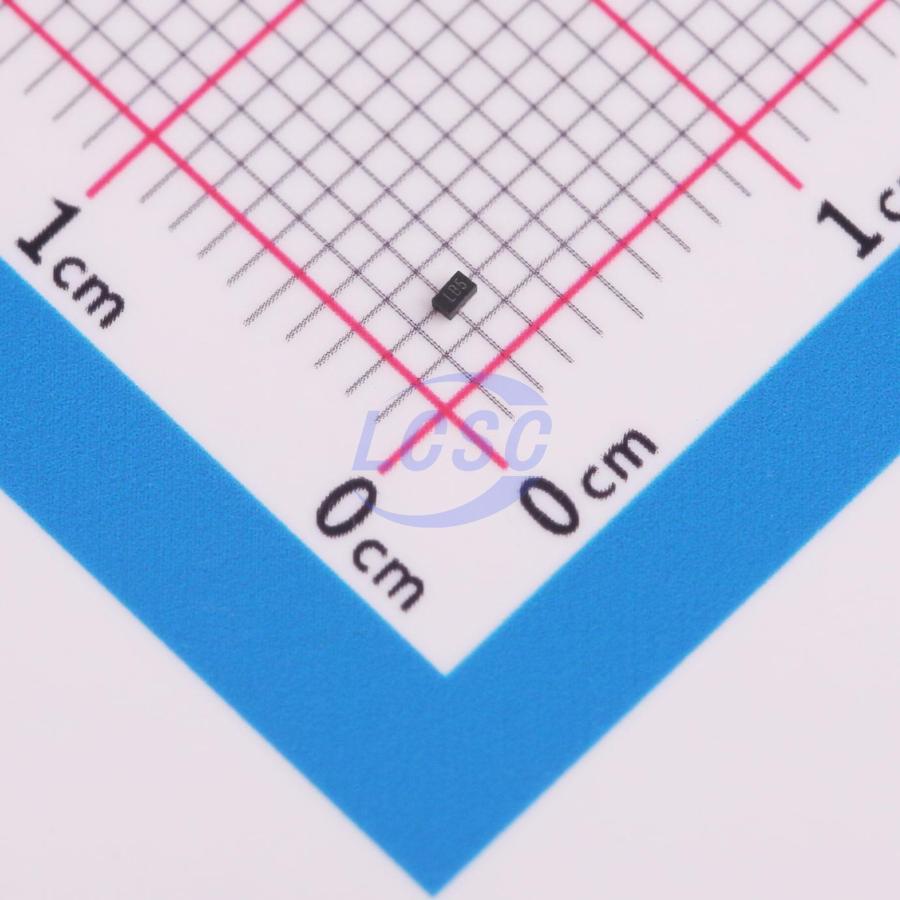

H5VS10BC
12VC Clamp 2A@8/20us Ipp ESD DIODE DFN1006-2L
DFN1006-2LROHS CompliantActive
ESD DIODE 5VWM 12VC DFN1006-2L
- Manufacturer
- R+O
- Manufacturer part #
- H5VS10BC
- Store part #
- C20615785
- Package / case
- DFN1006-2L
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,700 in stock
#C20615785
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹1.80 | ₹90.00 |
| 500+ | ₹1.42 | ₹710.00 |
| 1,500+ | ₹1.20 | ₹1,800.00 |
| 10,000+ | ₹1.01 | ₹10,100.00 |
| 20,000+ | ₹0.8996 | ₹17,992.00 |
| 50,000+ | ₹0.8335 | ₹41,675.00 |
50 × ₹1.80
₹90.00
excl. GST
₹106.20 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
H5VS10BC
₹90.00 for 50 + GST
Specifications
- Clamping Voltage
- 12V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 2A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 25W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 10V
- type
- ESD
- Reverse Leakage Current (Ir)
- 200nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.024 g
