Siproin

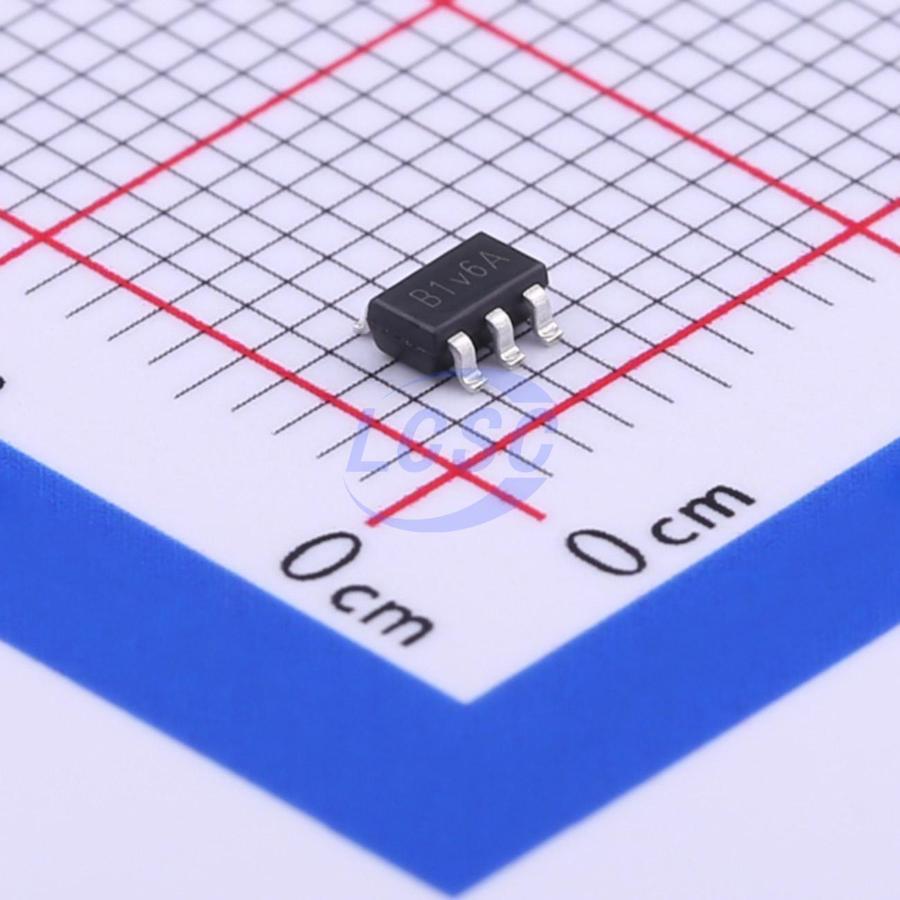

H8118A30M5R

300kHz Boost Fixed 3V SOT-23-5 Voltage Regulators - DC DC Switching Regulators

SOT-23-5RoHSActive

Synchronous Step-Up DC-DC Converter with PFM Control

Manufacturer: Siproin
Manufacturer part #: H8118A30M5R
Store part #: C411001
Package / case: SOT-23-5
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,970 in stock

#C411001

Stock & price checked 36 h ago

Quantity	Unit price	Pack price
5+	₹16.67	₹83.35
50+	₹13.23	₹661.50
150+	₹11.51	₹1,726.50
500+	₹10.21	₹5,105.00
3,000+	₹8.96	₹26,880.00
6,000+	₹8.43	₹50,580.00

Quantity (min 5, multiples of 5)

5 × ₹16.67

₹83.35

excl. GST

₹98.35 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

H8118A30M5R

₹83.35 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
Frequency - Switching: 300kHz
Function: Boost
Number of Outputs: 1
Output Type: Fixed
Topology: Boost
Operating Voltage: 2.1V~5.5V
Switch tube (built-in/external): Built-in
Output Voltage: 3V
Quiescent Current: 15uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.025 g

Overview

The H8118 Series is a Synchronous step-up DC/DC Converter with PFM Control. With the H8118 Series, a step-up switching DC/DC converter can be configured by using an external coil, capacitor. The built-in MOSFET is turned off by a protection circuit when the voltage at the LX pin exceeds the limit to prevent it from being damaged.
