VBsemi ElecDatasheet (PDF)

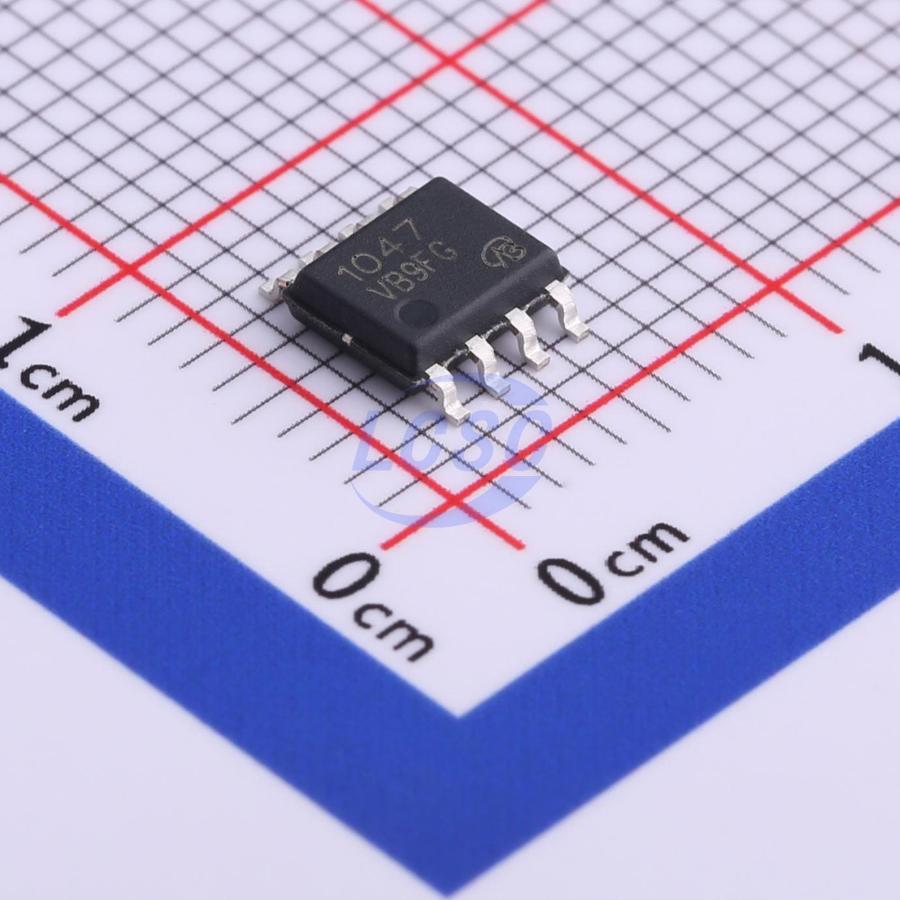

HAT1047RJ-VB
P-Channel 30V 11.6A Surface Mount SO-8
SO-8RoHSActive
MOSFET P-CH 30V 11.6A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- HAT1047RJ-VB
- Store part #
- C878993
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
63 in stock
#C878993
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹61.16 | ₹61.16 |
| 10+ | ₹48.59 | ₹485.90 |
| 30+ | ₹43.37 | ₹1,301.10 |
| 100+ | ₹36.66 | ₹3,666.00 |
| 500+ | ₹33.31 | ₹16,655.00 |
| 1,000+ | ₹31.42 | ₹31,420.00 |
1 × ₹61.16
₹61.16
excl. GST
₹72.17 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
HAT1047RJ-VB
₹61.16 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 380pF
- Current - Continuous Drain(Id)
- 11.6A
- Ciss-Input Capacitance
- 1.96nF
- Reverse Transfer Capacitance (Crss)
- 325pF
- RDS(on)
- 11mΩ@10V;12mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 43nC@10V;22nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.15 g
Overview
Applications
- Load Switch - Laptop - Desktop Computer
Key features
- Halogen-free option available, compliant with IEC 61249-2-21
- Trench power MOSFET
- 100% gate resistance (Rg) tested
- 100% unclamped inductive switching (UIS) tested
- RoHS compliant
- Halogen-free option available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MT4407-VB#C19188123VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 20 | ₹59.46 · 20 in stock | View |
 | SI4441EDY-T1-E3-VB#C19188269VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 50 | ₹61.43 · 50 in stock | View |
 | HAT1036R-VB#C20755139VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 30 | ₹60.71 · 30 in stock | View |
 | QM3005S-VB#C20755575VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 50 | ₹60.71 · 50 in stock | View |
 | VS4407AS-VB#C20755614VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 50 | ₹60.71 · 50 in stock | View |
