HXY MOSFETDatasheet (PDF)

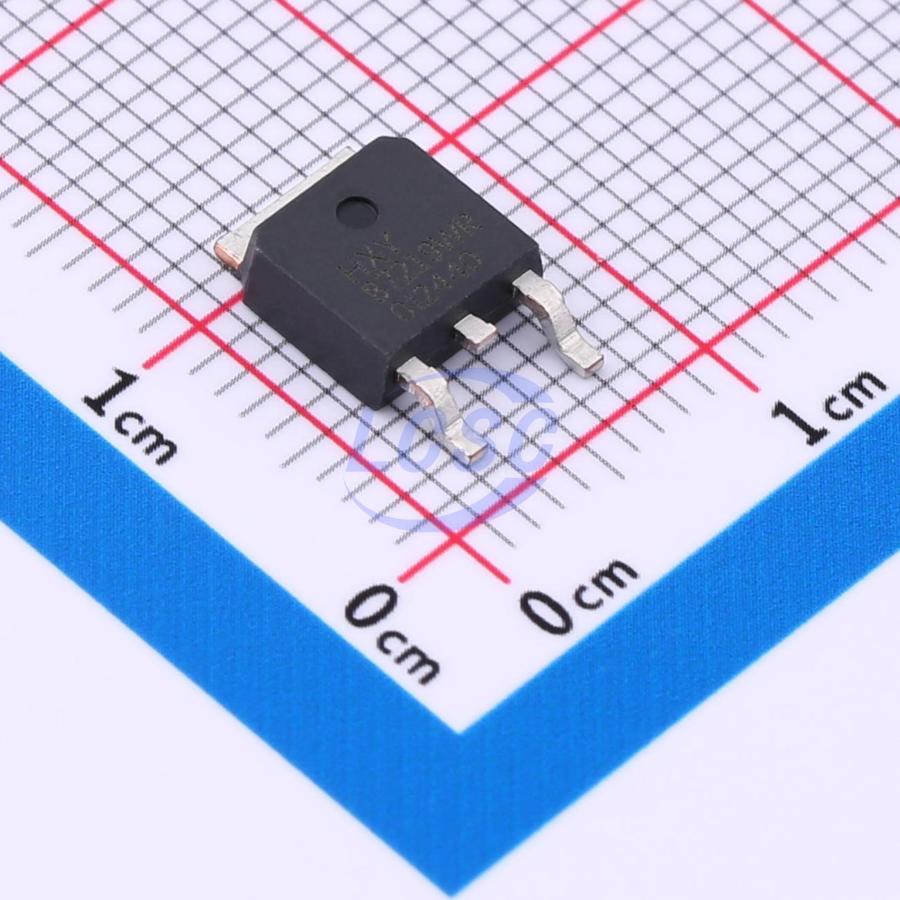

HBUK721955A118
60V 50A 87.7W TO-252-2L(DPAK)
TO-252-2L(DPAK)RoHSActive
MOSFET 60V 50A TO-252-2L(DPAK)
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HBUK721955A118
- Store part #
- C42401465
- Package / case
- TO-252-2L(DPAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
82 in stock
#C42401465
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹60.57 | ₹60.57 |
| 10+ | ₹48.54 | ₹485.40 |
| 30+ | ₹43.39 | ₹1,301.70 |
| 100+ | ₹36.95 | ₹3,695.00 |
| 500+ | ₹34.16 | ₹17,080.00 |
| 1,000+ | ₹32.44 | ₹32,440.00 |
1 × ₹60.57
₹60.57
excl. GST
₹71.47 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HBUK721955A118
₹60.57 for 1 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 185pF
- Current - Continuous Drain(Id)
- 50A
- Ciss-Input Capacitance
- 2.498nF
- Pd - Power Dissipation
- 87.7W
- Reverse Transfer Capacitance (Crss)
- 80pF
- RDS(on)
- 13mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 36nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.392 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMNH6021SK3Q-HXY#C22366964HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 11 | ₹54.89 · 11 in stock | View |
 | IRFU4105ZPBF-HXY#C22366968HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 50 | ₹36.95 · 50 in stock | View |
 | AOD442G-HXY#C22366969HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 60 | ₹31.73 · 60 in stock | View |
 | IPD30N06S2L-23-HXY#C22366971HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 225 | ₹45.93 · 225 in stock | View |
 | HIPD220N06L3GBTMA1#C42401336HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 10 | ₹57.22 · 10 in stock | View |
