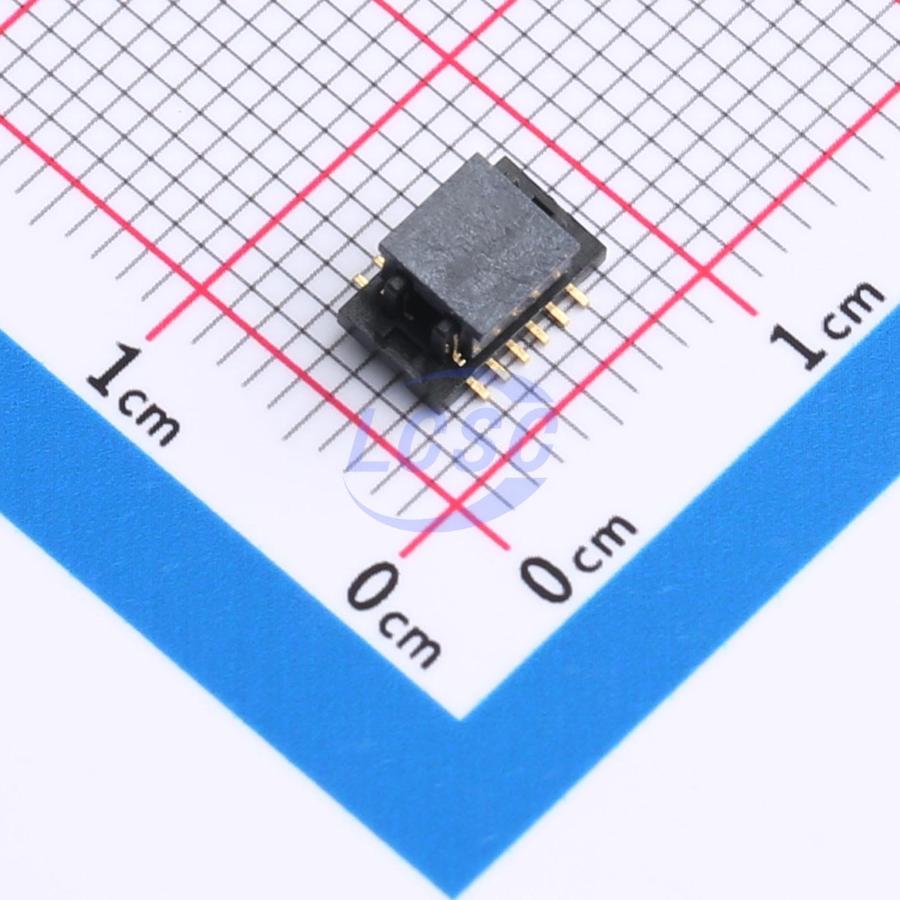

HC-PBB08-2-12-M-H1.0-G1-R-P-04
12 Position Board to Board Connector Surface Mount,P=0.8mm
SMD,P=0.8mmROHS CompliantActive
CONN Board-to-Board 12POS SMD
- Manufacturer
- HCTL
- Manufacturer part #
- HC-PBB08-2-12-M-H1.0-G1-R-P-04
- Store part #
- C41421122
- Package / case
- SMD,P=0.8mm
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
110 in stock
#C41421122
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.61 | ₹173.05 |
| 50+ | ₹27.17 | ₹1,358.50 |
| 150+ | ₹23.99 | ₹3,598.50 |
| 1,000+ | ₹20.02 | ₹20,020.00 |
| 2,000+ | ₹18.24 | ₹36,480.00 |
| 5,000+ | ₹17.19 | ₹85,950.00 |
5 × ₹34.61
₹173.05
excl. GST
₹204.20 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
HC-PBB08-2-12-M-H1.0-G1-R-P-04
₹173.05 for 5 + GST
Specifications
- Voltage Rating
- 60V
- Operating Temperature
- -40℃~+85℃
- Supplementary Features
- With column
- System Fit Height
- 4mm;4.5mm;5mm;5.5mm
- Current Rating (Max)
- 500mA
- Number of Rows
- 2
- Pitch
- 0.8mm
- Mounting Type
- Surface Mount,Vertical
- Number of Pins
- 12P
- Contact Material
- Copper alloy
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.226 g
Overview
Key features
- Smooth plastic surface, free of flash, sink marks, defects, and cracks
- Operating temperature range: -25℃ ~ +85℃
- Rated voltage: 60V AC
- Contact resistance: 60mΩ
- Insulation resistance: 800MΩ
- Rated current: 0.5A max
