XHSC

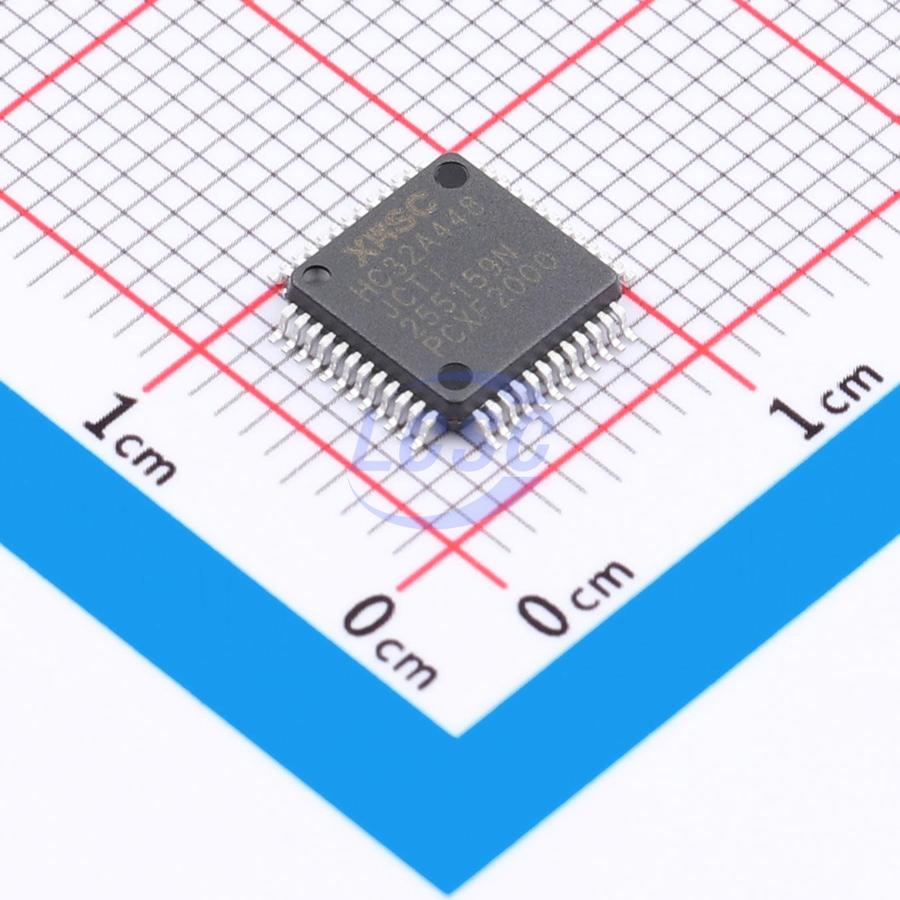

HC32A448JCTI-LQ48

ARM Cortex-M4 32 Bit 200MHz LQFP-48(7x7) Microcontrollers

LQFP-48(7x7)RoHSActive

Manufacturer: XHSC
Manufacturer part #: HC32A448JCTI-LQ48
Store part #: C46962175
Package / case: LQFP-48(7x7)
Category: Microcontrollers
Packaging: Tray

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,763 in stock

#C46962175

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹320.56	₹320.56
10+	₹267.25	₹2,672.50
30+	₹233.76	₹7,012.80
250+	₹199.64	₹49,910.00
500+	₹184.07	₹92,035.00
1,000+	₹177.45	₹1,77,450.00

Quantity (min 1)

1 × ₹320.56

₹320.56

excl. GST

₹378.26 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 250 per tray

HC32A448JCTI-LQ48

₹320.56 for 1 + GST

Specifications

DAC (Bit): 12bit
ADC (Bit): 12bit
Number of I/O: 67
Operating Temperature: -40℃~+105℃
Voltage - Supply: 1.8V~3.6V
Program Memory Type: FLASH
CPU Core: ARM Cortex-M4
Program Storage Size: 256KB
Core Size: 32 Bit
CPU Maximum Speed: 200MHz
Oscillator Type: Built-in+External

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tray
Standard pack: 250 / Tray
Sold per: Piece
Minimum order: 1
Unit weight: 0.944 g

Overview

Key features

ARM Cortex-M4 32bit MCU+FPU, 250DMIPS, 256KB Flash, 68KB SRAM, 2CAN FD, EXMC, 15Timers, 3ADCs, 2DACs, 4CMPs, 6UARTs, 3SPIs, 2I2Cs, QSPI, AES, HASH (SHA256)
ARMv7-M architecture 32bit Cortex-M4 CPU, integrated FPU, MPU, DSP supporting SIMD instructions, and CoreSight standard debugging unit. The highest operating frequency is 200MHz, reaching the computing performance of 250DMIPS or 680Coremarks
Flash memory up to 256KB
Maximum 68KB single-cycle access to high-speed SRAM
Power, Clock, Reset Management
System power supply (Vcc): 1.8 - 3.6V
7 independent clock sources: external main clock crystal oscillator (4 - 25MHz), external secondary crystal oscillator (32.768KHz), internal high-speed RC (16/20MHz), internal medium-speed RC (8MHz), internal low-speed RC (32KHz), PLL, Internal WDT dedicated RC (10KHz)
15 kinds of reset sources including power-on reset (POR), low voltage detection reset (PVD1R/PVD2R), port reset (NRST), each reset source has an independent flag bit
Peripherals can be turned off or on independently
Three low power consumption modes: Sleep mode, Stop mode, Power Down mode
12-channel dual-host DMAC
4 Data Computing Units (DCUs)
Support mutual triggering of peripheral events (AOS)
3 independent 12bit 2.5MSPS ADCs
2 independent 12bit DACs
4 independent voltage comparators (CMP)
2 multifunctional 16bit PWM Timers (Timer6)
3 16-bit motor PWM Timers (Timer4)
1 32bit general-purpose Timers (TimerA)
4 16bit general-purpose Timers (TimerA)
Two 16bit basic timers (Timer0)
Real time clock Timer (RTC)
2 WDTs, supporting internal dedicated clocks
Up to 67 GPIOs
Up to 62 5V-tolerant IOs
Maximum 14 communication interfaces
6 USART, support ISO7816-3 protocol
3 SPIs
2 I2C, support SMBus protocol
1 QSPI, support 100Mbps high-speed access (XIP)
2 CAN FD controller (MCAN), compatible with CAN2.0A/B
Support for static memory controllers
AES/ HASH (SHA256)/ TRNG
Encapsulation form: LQFP80 (12×1.2mm), LQFP64 (10×1.0mm), LQFP48 (7×7mm)
