XHSC

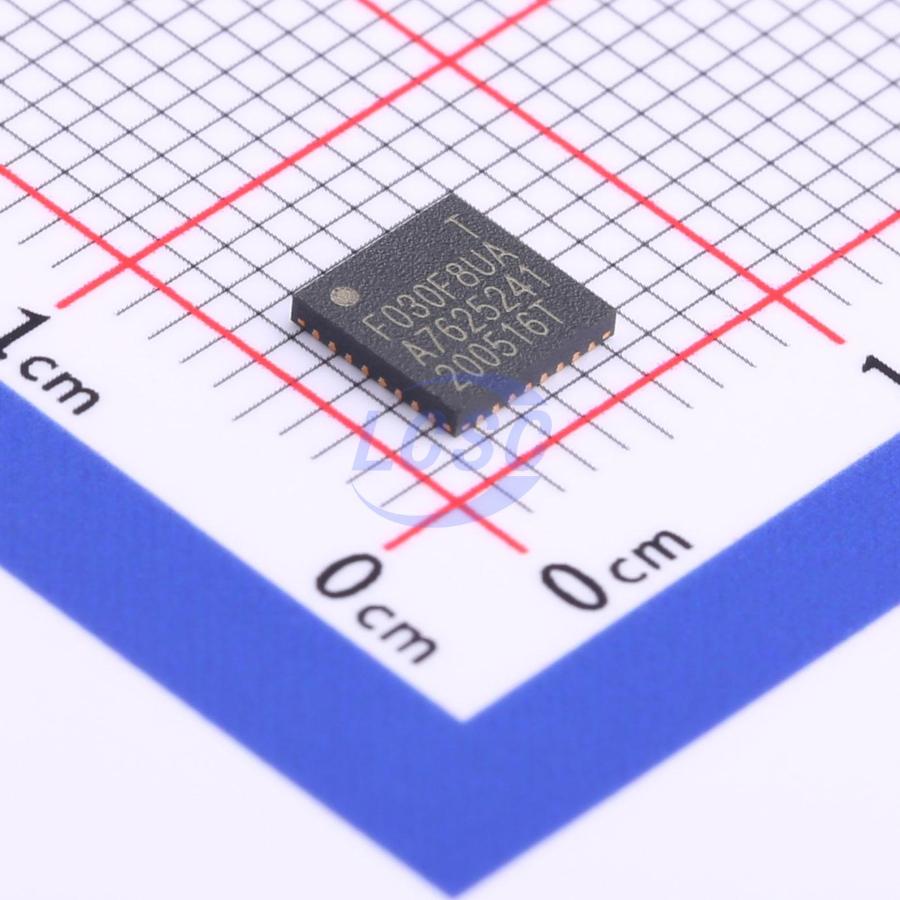

HC32F030F8UA-QN32TR

ARM Cortex-M0+ 32 Bit 48MHz QFN-32-EP(5x5) Microcontrollers

QFN-32-EP(5x5)RoHSActive

32-bit ARM Cortex-M0+ microcontroller

Manufacturer: XHSC
Manufacturer part #: HC32F030F8UA-QN32TR
Store part #: C784654
Package / case: QFN-32-EP(5x5)
Category: Microcontrollers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,191 in stock

#C784654

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹138.93	₹138.93
10+	₹115.38	₹1,153.80
30+	₹102.60	₹3,078.00
100+	₹88.03	₹8,803.00
500+	₹81.44	₹40,720.00
1,000+	₹78.45	₹78,450.00
3,000+	₹77.45	₹2,32,350.00
6,000+	₹76.65	₹4,59,900.00

Quantity (min 1)

1 × ₹138.93

₹138.93

excl. GST

₹163.94 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

HC32F030F8UA-QN32TR

₹138.93 for 1 + GST

Specifications

ADC (Bit): 12bit
Number of I/O: 26
Operating Temperature: -40℃~+85℃
Voltage - Supply: 1.8V~5.5V
Program Memory Type: FLASH
Program Storage Size: 64KB
CPU Core: ARM Cortex-M0+
Core Size: 32 Bit
CPU Maximum Speed: 48MHz
Oscillator Type: Built-in+External

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.22 g

Overview

The HC32F030 series is a general-purpose MCU with a wide operating voltage range. It integrates a 12-bit 1Msps high-precision SAR ADC, along with comparators, op-amps, built-in high-performance PWM timers, and multiple communication peripherals including UART, SPI, and I2C. It also incorporates security modules such as AES and TRNG, featuring high integration, strong noise immunity, and high reliability. The product is based on the Cortex-M0+ core, compatible with the mature Keil & IAR development and debugging toolchains, and supports both C language and assembly language programming.

Applications

Intelligent transportation
Smart city
Smart home
E-cigarettes
Drone/RC aircraft
Wireless charging and other consumer industries
Power tools and other motor control industries

Key features

48MHz Cortex-M0+ 32-bit CPU platform
8KB RAM with parity check for enhanced system stability
General-purpose I/O pins (56IO/64pin, 40IO/48pin, 38IO/44pin, 26IO/32PIN, 23IO/28PIN)
Clock/oscillator: external HSE 4~32MHz, external LSE 32.768kHz, internal HSI 4/8/16/22.12/24MHz, internal LSI 32.8/38.4kHz, PLL clock 8~48MHz, hardware clock calibration and monitoring
Timers/counters: 3× 1-channel complementary general-purpose 16-bit timers, 1× 3-channel complementary output 16-bit timer, 3× high-performance 16-bit timers/counters with PWM complementary output and dead-band protection, 1× programmable 16-bit PCA timer with capture/compare and PWM output, 1× 20-bit programmable watchdog with dedicated built-in 10kHz oscillator for WDT counting
Communication interfaces: 2× UART, 2× SPI, 2× I2C
Buzzer frequency generator with complementary output support
Hardware CRC-16/32 module
Hardware 32-bit divider, AES-128 hardware coprocessor, TRNG true random number generator
2-channel DMAC
Globally unique 10-byte ID
12-bit 1Msps high-speed high-precision SAR ADC with built-in op-amp for weak external signal measurement, integrating 3 multi-function operational amplifiers
2-channel voltage comparator VC with integrated 6-bit DAC and programmable reference input
Integrated LVD with 16-level configurable threshold, supporting port voltage and supply voltage monitoring
SWD debug solution with full-featured debugger
Operating conditions: -40~85℃, 1.8~5.5V
Packages: QFN32, LQFP64/48/44/32, TSSOP28
