XHSCDatasheet (PDF)

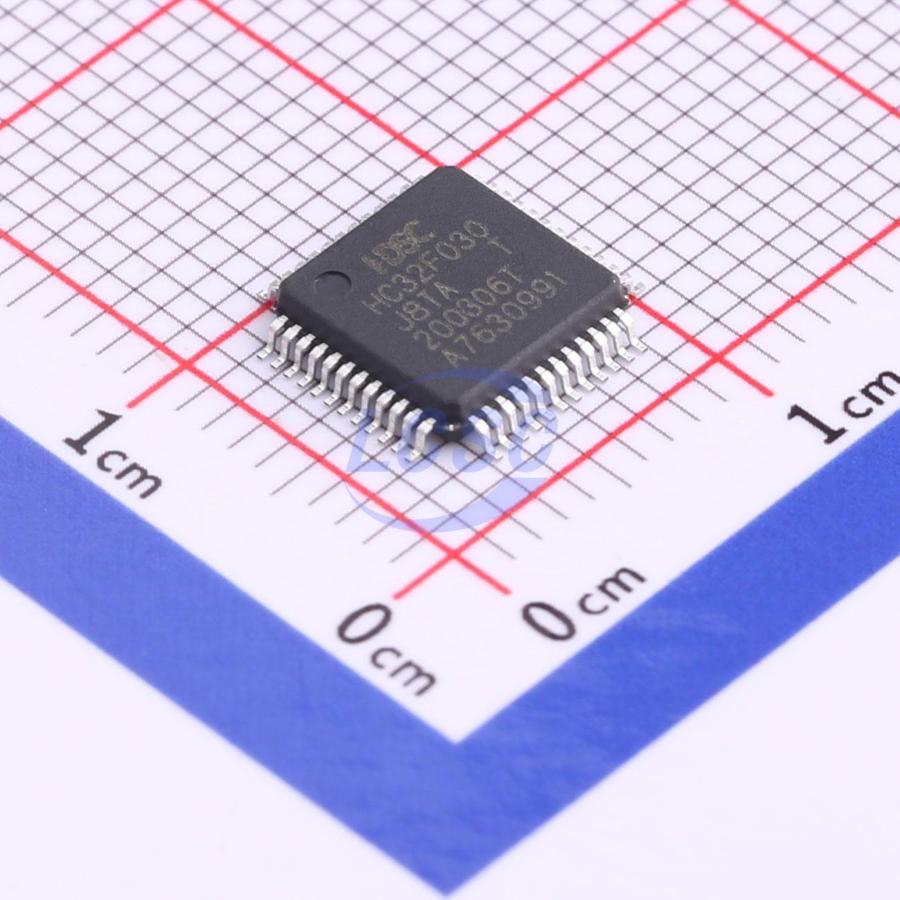

HC32F030J8TA-LQ48
ARM Cortex-M0+ 32 Bit 48MHz LQFP-48(7x7) Microcontrollers
LQFP-48(7x7)RoHSActive
32-bit ARM Cortex-M0+ microcontroller
- Manufacturer
- XHSC
- Manufacturer part #
- HC32F030J8TA-LQ48
- Store part #
- C2764092
- Package / case
- LQFP-48(7x7)
- Category
- Microcontrollers
- Packaging
- Tray
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,155 in stock
#C2764092
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹161.50 | ₹161.50 |
| 10+ | ₹131.80 | ₹1,318.00 |
| 30+ | ₹115.35 | ₹3,460.50 |
| 250+ | ₹96.99 | ₹24,247.50 |
| 500+ | ₹88.65 | ₹44,325.00 |
| 1,000+ | ₹85.02 | ₹85,020.00 |
| 2,000+ | ₹83.75 | ₹1,67,500.00 |
| 4,000+ | ₹82.89 | ₹3,31,560.00 |
1 × ₹161.50
₹161.50
excl. GST
₹190.57 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 250 per tray
HC32F030J8TA-LQ48
₹161.50 for 1 + GST
Specifications
- ADC (Bit)
- 12bit
- Number of I/O
- 40
- Operating Temperature
- -40℃~+85℃
- Voltage - Supply
- 1.8V~5.5V
- Program Memory Type
- FLASH
- Program Storage Size
- 64KB
- CPU Core
- ARM Cortex-M0+
- Core Size
- 32 Bit
- CPU Maximum Speed
- 48MHz
- Oscillator Type
- Built-in+External
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tray
- Standard pack
- 250 / Tray
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.75 g
Overview
The HC32F030 series is a general-purpose MCU with a wide operating voltage range. It integrates a 12-bit 1Msps high-precision SAR ADC, along with comparators, op-amps, built-in high-performance PWM timers, and multiple communication peripherals including UART, SPI, and I2C. It also incorporates security modules such as AES and TRNG, featuring high integration, strong noise immunity, and high reliability. The product is based on the Cortex-M0+ core, compatible with the mature Keil & IAR development and debugging toolchains, and supports both C language and assembly language programming.
Applications
- Intelligent transportation
- Smart city
- Smart home
- E-cigarettes
- Drone/RC aircraft
- Wireless charging and other consumer industries
- Power tools and other motor control industries
Key features
- 48MHz Cortex-M0+ 32-bit CPU platform
- 8KB RAM with parity check for enhanced system stability
- General-purpose I/O pins (56IO/64pin, 40IO/48pin, 38IO/44pin, 26IO/32PIN, 23IO/28PIN)
- Clock/oscillator: external HSE 4~32MHz, external LSE 32.768kHz, internal HSI 4/8/16/22.12/24MHz, internal LSI 32.8/38.4kHz, PLL clock 8~48MHz, hardware clock calibration and monitoring
- Timers/counters: 3× 1-channel complementary general-purpose 16-bit timers, 1× 3-channel complementary output 16-bit timer, 3× high-performance 16-bit timers/counters with PWM complementary output and dead-band protection, 1× programmable 16-bit PCA timer with capture/compare and PWM output, 1× 20-bit programmable watchdog with dedicated built-in 10kHz oscillator for WDT counting
- Communication interfaces: 2× UART, 2× SPI, 2× I2C
- Buzzer frequency generator with complementary output support
- Hardware CRC-16/32 module
- Hardware 32-bit divider, AES-128 hardware coprocessor, TRNG true random number generator
- 2-channel DMAC
- Globally unique 10-byte ID
- 12-bit 1Msps high-speed high-precision SAR ADC with built-in op-amp for weak external signal measurement, integrating 3 multi-function operational amplifiers
- 2-channel voltage comparator VC with integrated 6-bit DAC and programmable reference input
- Integrated LVD with 16-level configurable threshold, supporting port voltage and supply voltage monitoring
- SWD debug solution with full-featured debugger
- Operating conditions: -40~85℃, 1.8~5.5V
- Packages: QFN32, LQFP64/48/44/32, TSSOP28
