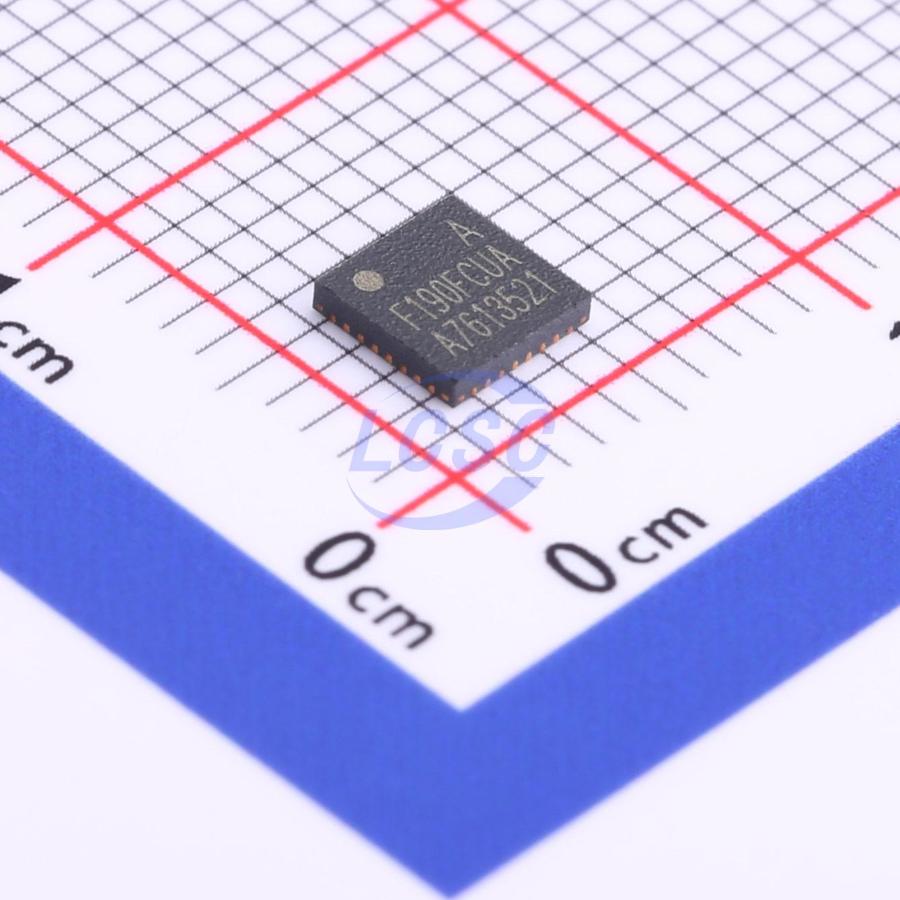

HC32F190FCUA-QFN32TR

The HC32F190/HC32F196 series is a general-purpose MCU with a wide operating voltage range. It integrates a 12-bit 1Msps high-precision SAR ADC, one 12-bit DAC, along with comparators, op-amps, a built-in high-performance PWM timer, LCD display, and rich communication peripherals including multiple UART, SPI, and I2C interfaces. The series also incorporates information security modules such as AES and TRNG, featuring high integration, strong noise immunity, and high reliability. The core is based on the Cortex-M0+ architecture, compatible with the mature Keil & IAR development and debugging toolchains, supporting both C and assembly languages.

Applications

• IoT Applications
• Communication modules, thermostats
• Intelligent transportation, alarm systems
• Smart home, home appliances, fitness equipment

Key features

• 48MHz Cortex-M0+ 32-bit CPU platform
• HC32F190/HC32F196 series features a flexible power management system with low-power performance: 3μA@3V deep sleep mode — all clocks off, POR active, I/O state retained, I/O interrupt active, all registers/RAM/CPU data preserved; 10μA@32.768kHz low-speed active mode — CPU running, peripherals off, executing from Flash; 30μA/MHz@3V@24MHz sleep mode — CPU halted, peripherals off, main clock running; 130μA/MHz@3V@24MHz active mode — CPU running, peripherals off, executing from Flash; 4μs wake-up time for flexible and efficient mode switching and fast system response
• 256KB Flash with erase/write protection, supports ISP, ICP, IAP
• 32KB RAM with parity check for enhanced system stability
• General-purpose I/O pins (88IO/100PIN, 72IO/80PIN, 56IO/64PIN, 40IO/48PIN, 26IO/32PIN)
• Clock/oscillator: external high-speed crystal 4~32MHz, external low-speed crystal 32.768kHz, internal high-speed clock 4/8/16/22.12/24MHz, internal low-speed clock 32.8/38.4kHz, PLL clock 8~48MHz, hardware-supported internal/external clock calibration and monitoring
• Timers/counters: 3× single-channel complementary output general-purpose 16-bit timers; 1× 3-channel complementary output general-purpose 16-bit timer; 3× high-performance 16-bit timers/counters with PWM complementary output and dead-band protection; 1× programmable 16-bit PCA timer with 5-channel capture/compare and 5-channel PWM output; 1× 20-bit programmable WDT with dedicated built-in 10kHz oscillator
• Communication interfaces: 4× UART, 2× SPI, 2× I²C
• Buzzer frequency generator with complementary output support
• Hardware CRC16/CRC32 module
• AES-128/192/256 hardware coprocessor
• TRNG true random number generator
• 2-channel DMAC
• 4×52 / 6×50 / 8×48 LCD driver
• Globally unique 10-byte ID
• 12-bit 1Msps high-speed high-precision SAR ADC with built-in buffer amplifier, capable of measuring high-output-impedance signals
• 1× 12-bit 500Ksps DAC
• Integrated multi-function op-amp usable as DAC output buffer
• Integrated 3× voltage comparators with 6-bit DAC and programmable reference
• Integrated LVD with 16-level configurable threshold voltage, supports port and supply voltage monitoring
• SWD debug solution with full-featured debugger
• Operating conditions: -40~85°C, 1.8~5.5V
• Packages: LQFP100/80/64/48, QFN32
