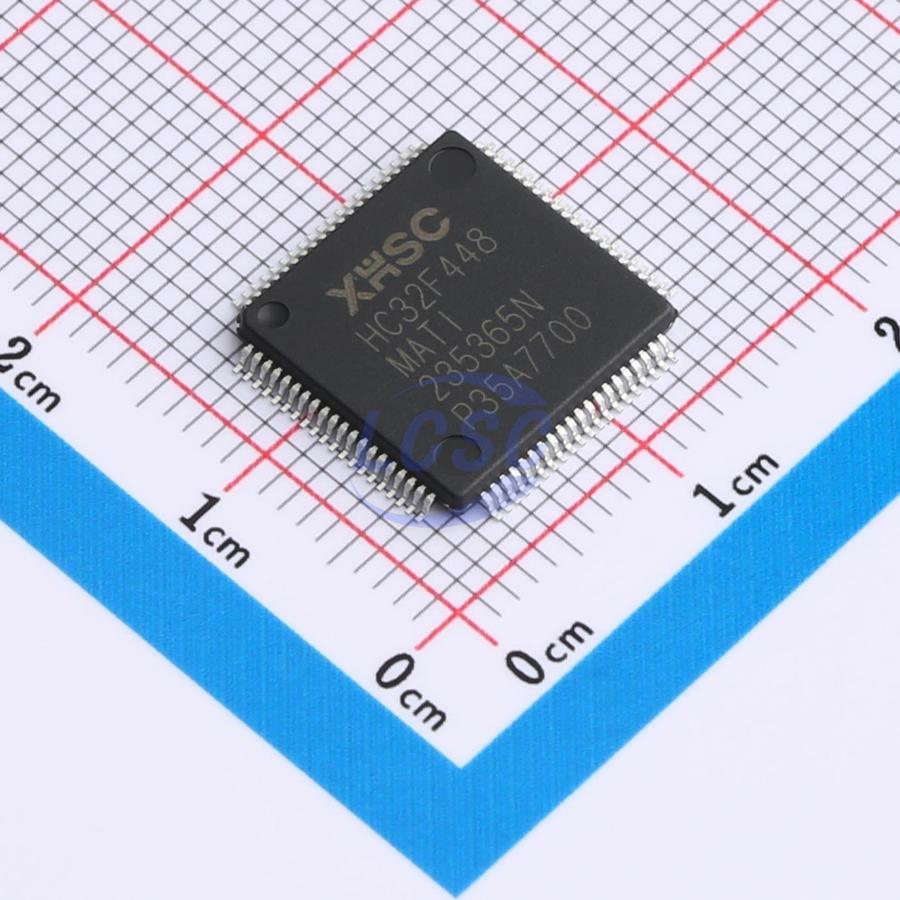

HC32F448MATI-LQFP80
ARM Cortex-M4 32 Bit 200MHz LQFP-80(12x12) Microcontrollers
LQFP-80(12x12)RoHSActive
- Manufacturer
- XHSC
- Manufacturer part #
- HC32F448MATI-LQFP80
- Store part #
- C5907217
- Package / case
- LQFP-80(12x12)
- Category
- Microcontrollers
- Packaging
- Tray
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,424 in stock
#C5907217
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹306.06 | ₹306.06 |
| 10+ | ₹255.09 | ₹2,550.90 |
| 30+ | ₹223.31 | ₹6,699.30 |
| 119+ | ₹190.46 | ₹22,664.74 |
| 476+ | ₹175.75 | ₹83,657.00 |
| 952+ | ₹169.34 | ₹1,61,211.68 |
1 × ₹306.06
₹306.06
excl. GST
₹361.15 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 119 per tray
HC32F448MATI-LQFP80
₹306.06 for 1 + GST
Specifications
- DAC (Bit)
- 12bit
- ADC (Bit)
- 12bit
- Number of I/O
- 67
- Operating Temperature
- -40℃~+105℃
- Voltage - Supply
- 1.8V~3.6V
- Program Memory Type
- FLASH
- CPU Core
- ARM Cortex-M4
- Program Storage Size
- 128KB
- Core Size
- 32 Bit
- CPU Maximum Speed
- 200MHz
- Oscillator Type
- Built-in+External
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tray
- Standard pack
- 119 / Tray
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.681 g
Overview
Key features
- ARMv7-M architecture 32-bit Cortex-M4 CPU with FPU, MPU, DSP with SIMD instructions, and CoreSight standard debug unit
- Up to 200MHz operating frequency, delivering 250DMIPS or 680 CoreMarks performance
- Up to 256KB Flash
- Up to 68KB single-cycle access high-speed SRAM
- System supply VCC: 1.8 ~ 3.6V
- 7 independent clock sources: external main crystal oscillator (4 ~ 25MHz), external 32.768kHz RTC crystal, internal high-speed RC (16/20MHz), internal medium-speed RC (8MHz), internal low-speed RC (32kHz), PLL, internal dedicated watchdog RC (10kHz)
- 15 reset sources including POR, LVD reset, and pin reset, each with an independent flag bit
- 3 low-power modes: Sleep, Stop, and Standby
- 12-channel dual-master DMA controller
- 4 data computation units
- Peripheral event mutual triggering support
- 3 independent 12-bit 2.5Msps ADCs
- 2 independent 12-bit DACs
- 4 independent voltage comparators
- 2 multi-function 16-bit PWM timers
- 3 16-bit motor control PWM timers
- 1 32-bit general-purpose timer
- 4 16-bit general-purpose timers
- 2 16-bit basic timers
- RTC timer
- 2 watchdog timers with dedicated internal clock support
- Up to 67 GPIO pins
- Up to 62 5V-tolerant I/O pins
- Up to 14 communication interfaces
- 6 USARTs with ISO7816-3 protocol support
- 3 SPIs
- 2 I2Cs with SMBus protocol support
- 1 QSPI with 100Mbps high-speed access support
- 2 CANFD controllers, compatible with CAN 2.0A/B protocol
- External memory controller with SMC support, LCD parallel interface compatible with 8080/6800 mode
- Security features: AES, hash algorithm, TRNG
- Package options: LQFP80, LQFP64, LQFP48, QFN48, QFN32
