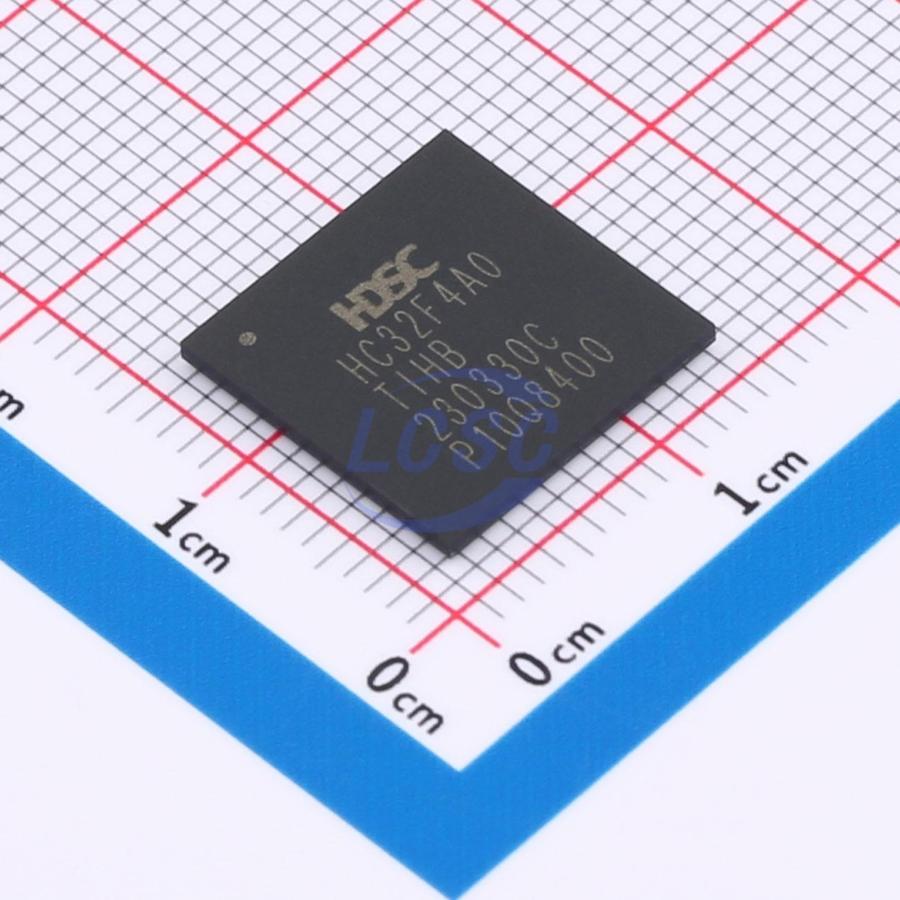

XHSC

HC32F4A0TIHB-TFBGA208

ARM Cortex-M4 32 Bit 240MHz TFBGA-208 Microcontrollers

TFBGA-208RoHSActive

32-bit ARM Cortex-M4 microcontroller

Manufacturer: XHSC
Manufacturer part #: HC32F4A0TIHB-TFBGA208
Store part #: C5263760
Package / case: TFBGA-208
Category: Microcontrollers
Packaging: Tray

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,221 in stock

#C5263760

Stock & price checked 47 h ago

Quantity	Unit price	Pack price
1+	₹913.27	₹913.27
10+	₹771.86	₹7,718.60
30+	₹685.49	₹20,564.70
100+	₹613.18	₹61,318.00

Quantity (min 1)

1 × ₹913.27

₹913.27

excl. GST

₹1,077.66 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 160 per tray

HC32F4A0TIHB-TFBGA208

₹913.27 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

DAC (Bit): 12bit
ADC (Bit): 12bit
Operating Temperature: -40℃~+105℃
Voltage - Supply: 1.8V~3.6V
Program Memory Type: FLASH
CPU Core: ARM Cortex-M4
Program Storage Size: 2MB
Core Size: 32 Bit
CPU Maximum Speed: 240MHz
Oscillator Type: Built-in+External

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tray
Standard pack: 160 / Tray
Sold per: Piece
Minimum order: 1
Unit weight: 1.31 g

Overview

Key features

ARM Cortex-M4 32bit MCU+FPU, 300DMIPS, 2MB Flash, 516KB SRAM, 2USBs (HS/FS OTG), Ethernet MAC, 2CANs (FD/2.0B), 2SDIOs, DVP, EXMC, 32 Timers, 16HRPWMs, 3ADCs, 4DACs, 4PGAs, 4 CMPs, 10UARTs, 6SPIs, 6I2Cs, 4I2Ss, QSPI, AES, HASH(SHA256/HMAC), FMAC(FIR), MAU
ARMv7-M architecture 32bit Cortex-M4 CPU with integrated FPU, MPU, SIMD-capable DSP, full instruction trace unit ETM, and CoreSight standard debug unit. Maximum operating frequency 240MHz, achieving 300DMIPS or 825Coremarks compute performance
Up to 2048KByte dual bank Flash memory
Up to 516KByte SRAM, including 128KByte single-cycle access high-speed RAM
Supply voltage (Vcc): 1.8 - 3.6V
6 independent clock sources: external main crystal oscillator (4 - 25MHz), external sub-crystal oscillator (32.768kHz), internal high-speed RC (16/20MHz), internal medium-speed RC (8MHz), internal low-speed RC (32kHz), internal WDT dedicated RC (10kHz)
15 reset sources including POR, low-voltage detection reset (PVD1R/PVD2R), and pin reset (NRST), each with an independent flag bit
Peripheral functions independently enable/disable
Three low-power modes: Sleep, Stop, and Power Down
VBAT independent supply supporting ultra-low-power RTC, 128Byte backup registers, 4KByte backup SRAM
16-channel dual-master DMAC
Dedicated DMAC for USBHS, USBFS, and Ethernet MAC
8 data computing units (DCU)
Math accelerator unit (MAU) supporting Sin/Sqrt
16-tap FIR digital filter (FMAC)
Peripheral event inter-trigger support (AOS)
3 independent 12bit 2.5MSPS ADCs
3 simultaneous sample-and-hold circuits for 3-channel simultaneous sampling
4 independent 12bit 15MSPS DACs
4 programmable gain amplifiers (PGA)
4 independent voltage comparators (CMP)
1 on-chip temperature sensor (OTS)
8 multi-function 32/16bit PWM Timers (Timer6)
16-channel 50ps high-resolution PWM (HRPWM)
3 × 16bit motor PWM Timers (Timer4)
12 × 16bit general-purpose Timers (TimerA)
4 × 16bit general-purpose Timers (Timer2)
2 × 16bit basic Timers (Timer0)
Real-time clock Timer (RTC)
2 WDTs with dedicated internal clock support
Up to 142 GPIOs
Up to 134 5V-tolerant IOs
10 USARTs with ISO7816-3 protocol support
6 SPIs
6 I2Cs with SMBus protocol support
4 I2Ss with built-in audio PLL
2 SDIOs supporting SD/MMC/eMMC formats
1 QSPI supporting 240Mbps high-speed access (XIP)
2 CANs supporting CAN2.0B and up to CAN FD
2 USB 2.0 supporting HS and FS respectively, built-in FS-PHY, Device/Host support
1 × 10/100M Ethernet MAC with dedicated DMA, IEEE 1588-2018 PTP, MII/RMII interface
Static memory controller support
Dynamic memory controller support
Data encryption: AES/HASH(SHA256/HMAC)/TRNG
