Broadcom

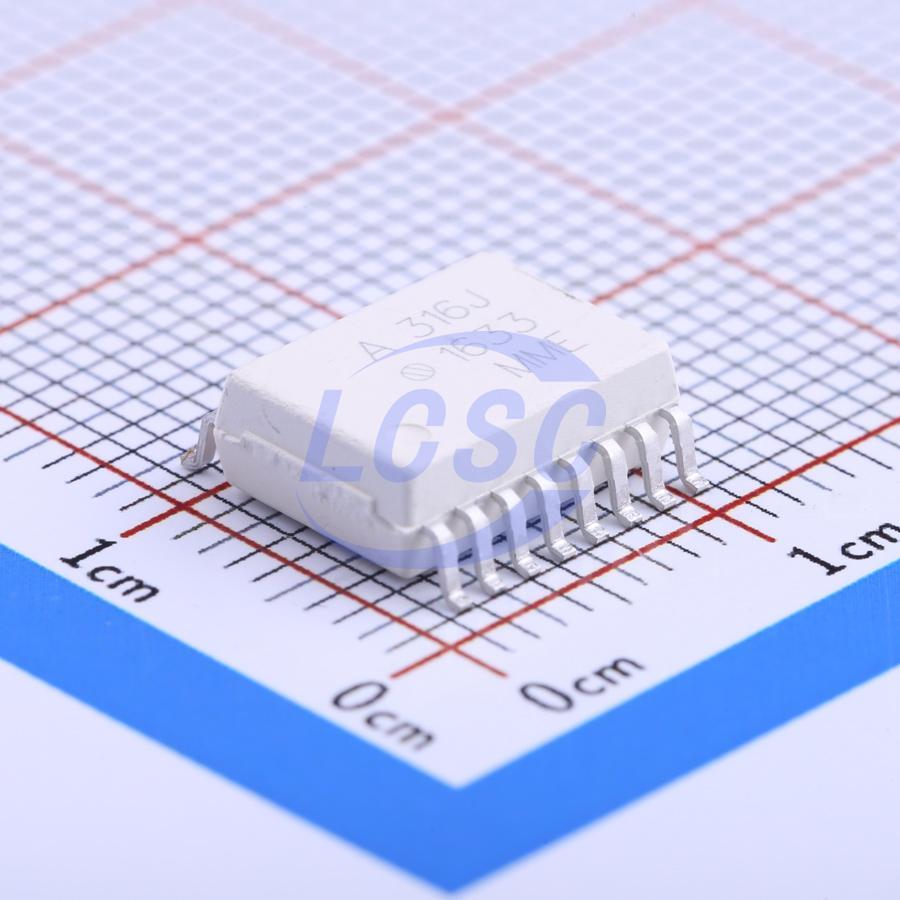

HCPL-316J-500E

2.5A 4.5V~5.5V DC SO-16-300mil Isolators - Gate Drivers RoHS

PopularSO-16-300milROHS3 CompliantActive

2.5 Amp Gate Drive Optocoupler with Integrated (VcE) Desaturation Detection and Fault Status Feedback

Manufacturer: Broadcom
Manufacturer part #: HCPL-316J-500E
Store part #: C27553
Package / case: SO-16-300mil
Category: Isolators - Gate Drivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

19,970 in stock

#C27553

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹260.18	₹260.18
10+	₹208.00	₹2,080.00
30+	₹182.53	₹5,475.90
100+	₹170.69	₹17,069.00
500+	₹164.45	₹82,225.00
850+	₹160.70	₹1,36,595.00

Quantity (min 1)

1 × ₹260.18

₹260.18

excl. GST

₹307.01 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 850 per reel

HCPL-316J-500E

₹260.18 for 1 + GST

Specifications

Power Dissipation: 600mW
Output Current: 2.5A
Operating Temperature: -40℃~+100℃
Voltage - Supply: 4.5V~5.5V
CMTI(kV/us): 15kV/us
Number of Channels: 1
Input threshold current: 2mA
Propagation Delay(tpd): 500ns;500ns
Isolation Voltage(Vrms): 5kV
Input Type: DC
Features: Under-voltage lockout;Open-collector output

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 850 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 1.154 g

Overview

Avago’s 2.5 Amp Gate Drive Optocoupler with Integrated Desaturation (VCE) Detection and Fault Status Feedback makes IGBT VCE fault protection compact, affordable, and easy-to-implement while satisfying worldwide safety and regulatory requirements. The HCPL-316J is a highly integrated power control device that incorporates all the necessary components for a complete, isolated IGBT gate drive circuit with fault protection and feedback into one SO-16 package. TTL input logic levels allow direct interface with a microcontroller, and an optically isolated power output stage drives IGBTs with power ratings of up to 150 A and 1200 V. A high speed internal optical link minimizes the propagation delays between the microcontroller and the IGBT while allowing the two systems to operate at very large common mode voltage differences that are common in industrial motor drives and other power switching applications. An output IC provides local protection for the IGBT to prevent damage during overcurrents, and a second optical link provides a fully isolated fault status feedback signal for the microcontroller. A built in “watchdog” circuit monitors the power stage supply voltage to prevent IGBT caused by insufficient gate drive voltages. This integrated IGBT gate driver is designed to increase the performance and reliability of a motor drive without the cost, size, and complexity of a discrete design.

Key features

2.5 A maximum peak output current
Drive IGBTs up to Ic = 150 A, VCE = 1200 V
Optically isolated, FAULT status feedback
SO-16 package
CMOS/TTL compatible
500 ns max. switching speeds
“Soft” IGBT turn-off
Integrated fail-safe IGBT protection – Desat (VCE) detection – Under Voltage Lock-Out protection (UVLO) with hysteresis
User configurable: inverting, noninverting, auto-reset, auto-shutdown
Wide operating VCC range: 15 to 30 Volts
-40 ℃ to +100 ℃ operating temperature range
15 kV/μs min. Common Mode Rejection (CMR) at VCM = 1500 V
Regulatory approvals: UL, CSA, IEC/EN/DIN EN 60747- 5-2 (1230 Vpeak Working Voltage)
