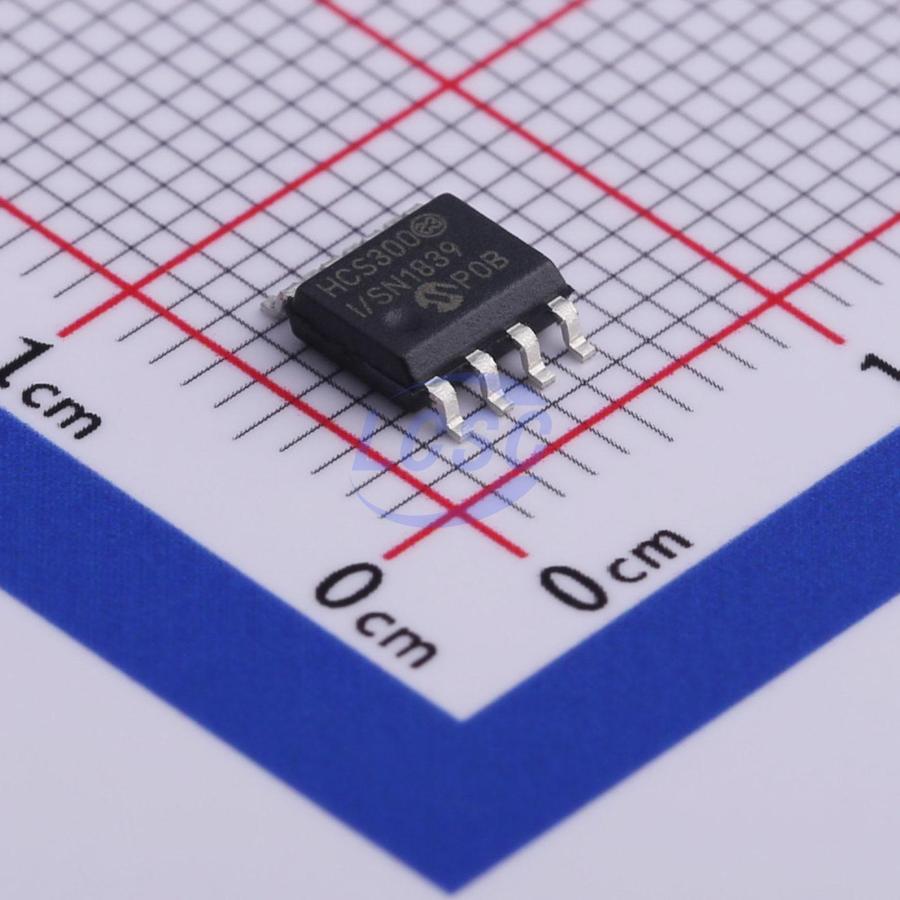

HCS300T-I/SN
SOIC-8 Specialized ICs RoHS
Code Hopping Encoder for Secure Remote Keyless Entry Systems
- Manufacturer
- MICROCHIP
- Manufacturer part #
- HCS300T-I/SN
- Store part #
- C507096
- Package / case
- SOIC-8
- Category
- Specialized ICs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,059 in stock
#C507096
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹219.92 | ₹219.92 |
| 10+ | ₹187.14 | ₹1,871.40 |
| 30+ | ₹166.72 | ₹5,001.60 |
| 100+ | ₹145.68 | ₹14,568.00 |
| 500+ | ₹133.95 | ₹66,975.00 |
| 1,000+ | ₹129.83 | ₹1,29,830.00 |
1 × ₹219.92
₹219.92
excl. GST
₹259.51 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,300 per reel
HCS300T-I/SN
₹219.92 for 1 + GST
Specifications
- Quiescent Supply Current
- 100nA
- Operating Temperature
- -40℃~+85℃
- Data Rate
- 0.833kbps;1.667Kbps;3.333Kbps
- Voltage - Supply
- 2V~6.3V
- Current - Supply
- 1mA
- Function
- Wake-up function;Non-volatile configuration storage;Enable/shutdown function
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,300 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.112 g
Overview
The HCS300 is a code hopping encoder designed for secure Remote Keyless Entry (RKE) systems. The HCS300 utilizes the KEELOQ code hopping technology, incorporating high security, a small package outline and low cost. The HCS300 is a perfect solution for unidirectional remote keyless entry systems and access control systems. The HCS300 combines a 32-bit hopping code, generated by a nonlinear encryption algorithm, with a 28-bit serial number and 6 information bits to create a 66-bit code word. The code word length eliminates the threat of code scanning and the code hopping mechanism makes each transmission unique, thus rendering code capture and resend schemes useless. The crypt key, serial number and configuration data are stored in an EEPROM array which is not accessible via any external connection. The EEPROM data is programmable but read-protected. The data can be verified only after an automatic erase and programming operation. This protects against attempts to gain access to keys or manipulate synchronization values. The HCS300 provides an easy-to-use serial interface for programming the necessary keys, system parameters and configuration data.
Applications
- Automotive RKE systems
- Automotive alarm systems
- Automotive immobilizers
- Gate and garage door openers
- Identity tokens
- Burglar alarm systems
Key features
- Programmable 28-bit serial number
- Programmable 64-bit encryption key
- Each transmission is unique
- 66-bit transmission code length
- 32-bit hopping code
- 28-bit serial number, 4-bit button code, 2-bit status
- Crypt keys are read protected
- 2.0V - 6.3V operation
- Four button inputs
- No additional circuitry required
- 15 functions available
- Selectable baud rate
- Automatic code word completion
- Low battery signal transmitted to receiver
- Non-volatile synchronization data
- Easy-to-use programming interface
- On-chip EEPROM
- On-chip oscillator and timing components
- Button inputs have internal pull-down resistors
- Current limiting on LED output
- Low external component cost
