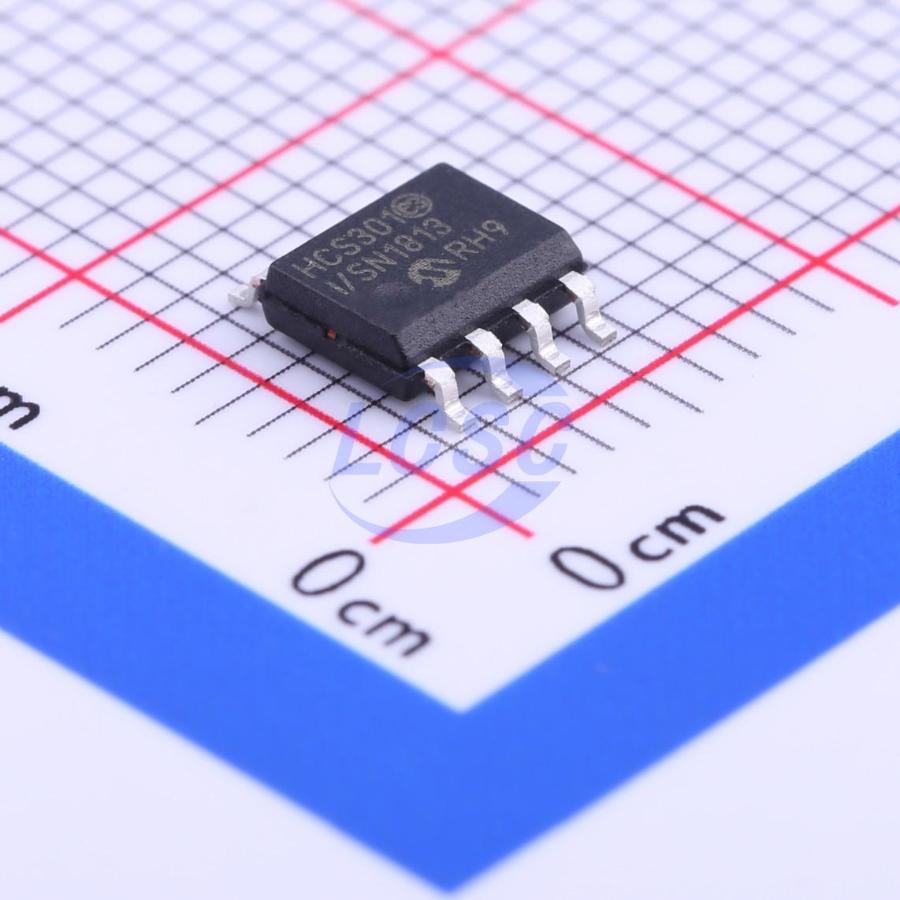

HCS301-I/SN
SOIC-8 Specialized ICs RoHS
KEELoQ Code Hopping Encoder
- Manufacturer
- MICROCHIP
- Manufacturer part #
- HCS301-I/SN
- Store part #
- C12216
- Package / case
- SOIC-8
- Category
- Specialized ICs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,503 in stock
#C12216
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹168.14 | ₹168.14 |
| 10+ | ₹138.89 | ₹1,388.90 |
| 30+ | ₹123.08 | ₹3,692.40 |
| 100+ | ₹104.87 | ₹10,487.00 |
| 500+ | ₹96.86 | ₹48,430.00 |
| 1,000+ | ₹93.18 | ₹93,180.00 |
1 × ₹168.14
₹168.14
excl. GST
₹198.41 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 100 per tube
HCS301-I/SN
₹168.14 for 1 + GST
Specifications
- Quiescent Supply Current
- 1uA
- Operating Temperature
- -40℃~+85℃
- Data Rate
- 0.833kbps;1.667Kbps;3.333Kbps
- Voltage - Supply
- 3.5V~13V
- Current - Supply
- 12mA
- Function
- Wake-up function;Non-volatile configuration storage
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 100 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.169 g
Overview
- 3.5V - 13.0V operation - Four button inputs - No additional circuitry required - 15 functions available - Selectable baud rate - Automatic code word completion - Battery low signal transmitted to receiver - Battery low indication on LED - Non-volatile synchronization data - Functionally identical to HCS300 - Easy-to-use programming interface - On-chip EEPROM - On-chip oscillator and timing components - Button inputs have internal pull-down resistors - Current limiting on LED output - Low external component cost
Applications
- Automotive RKE systems
- Automotive alarm systems
- Automotive immobilizers
- Gate and garage door openers
- Identity tokens
- Burglar alarm systems
Key features
- Programmable 28-bit serial number
- Programmable 64-bit encryption key
- Each transmission is unique
- 66-bit transmission code length
- 32-bit hopping code
- 34-bit fixed code (28-bit serial number, 4-bit button code, 2-bit status)
- Encryption keys are read protected
