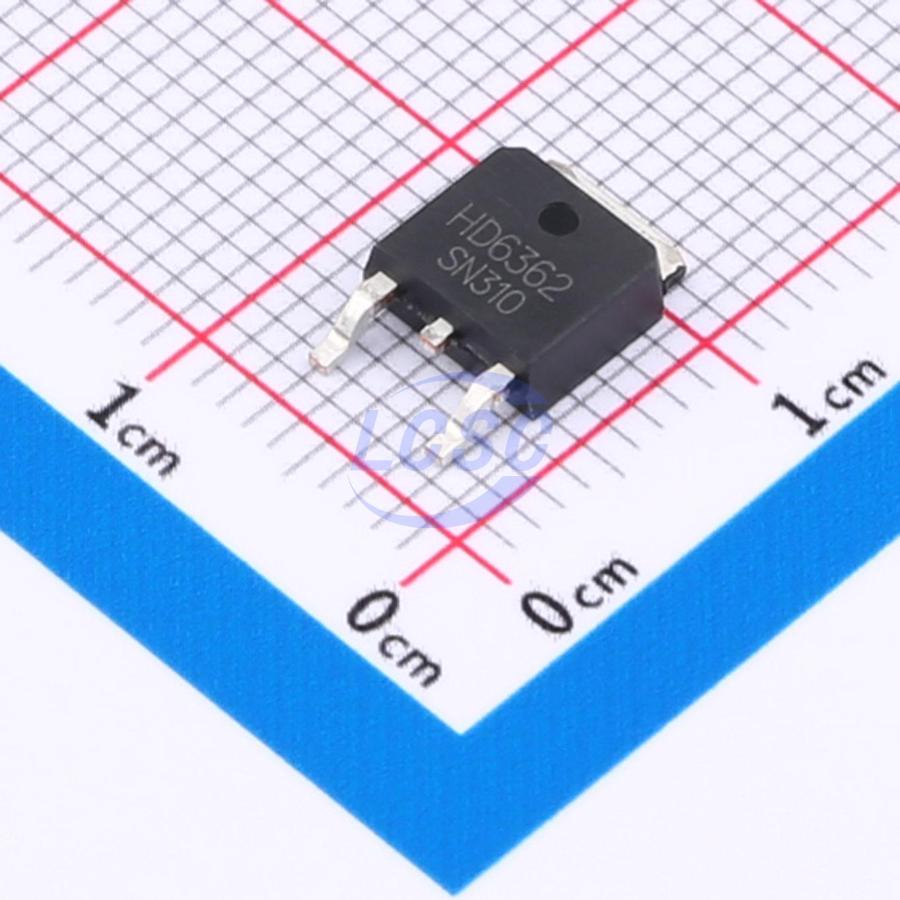

HXY MOSFETDatasheet (PDF)
HD6362
N-Channel 30V 100A 53W Surface Mount TO252-2L
TO252-2LRoHSActive
MOSFET N-CH 30V 100A TO252-2L
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HD6362
- Store part #
- C5451644
- Package / case
- TO252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
167 in stock
#C5451644
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹23.48 | ₹23.48 |
| 10+ | ₹18.44 | ₹184.40 |
| 30+ | ₹16.27 | ₹488.10 |
| 100+ | ₹13.59 | ₹1,359.00 |
| 500+ | ₹12.38 | ₹6,190.00 |
| 1,000+ | ₹11.66 | ₹11,660.00 |
1 × ₹23.48
₹23.48
excl. GST
₹27.71 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HD6362
₹23.48 for 1 + GST
Specifications
- Configuration
- Standalone
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 267pF
- Current - Continuous Drain(Id)
- 100A
- Ciss-Input Capacitance
- 2.295nF
- Pd - Power Dissipation
- 53W
- Reverse Transfer Capacitance (Crss)
- 210pF
- RDS(on)
- 3.8mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 20nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.465 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AOD516-HXY#C22366744HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 40 | ₹27.08 · 40 in stock | View |
 | IRLR8726PBF-HXY#C22366745HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 5 | ₹26.10 · 5 in stock | View |
 | SM4146T9RL-HXY#C22366746HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 10 | ₹23.10 · 10 in stock | View |
 | IPD050N03LG-HXY#C22367518HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 25 | ₹24.30 · 25 in stock | View |
 | HXY100N03D#C3033435HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 1,407 | ₹25.82 · 1,407 in stock | View |
