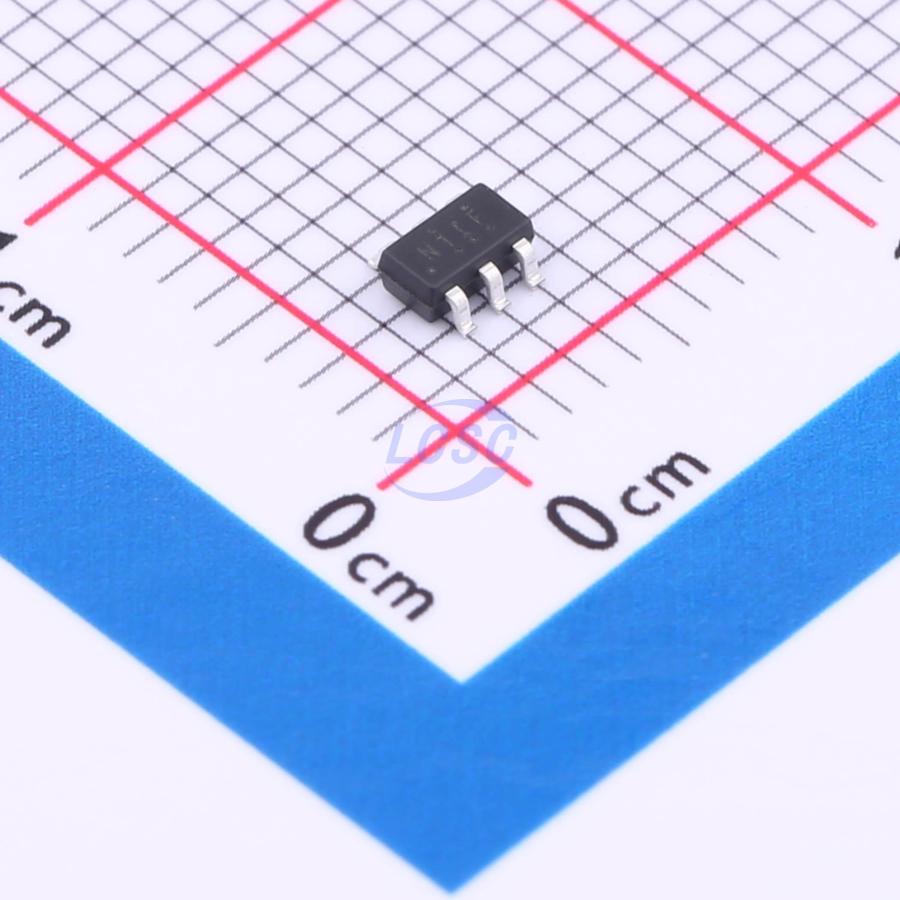

HE9008M6R
1.2MHz boost converter 3.17V~3.43V 250mA SOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS
SOT-23-6ROHS CompliantActive
High Performance Regulated Charge Pump
- Manufacturer
- HEERMICR
- Manufacturer part #
- HE9008M6R
- Store part #
- C5123432
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,790 in stock
#C5123432
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.10 | ₹100.50 |
| 50+ | ₹16.13 | ₹806.50 |
| 150+ | ₹14.16 | ₹2,124.00 |
| 500+ | ₹12.66 | ₹6,330.00 |
| 3,000+ | ₹9.47 | ₹28,410.00 |
| 6,000+ | ₹8.88 | ₹53,280.00 |
5 × ₹20.10
₹100.50
excl. GST
₹118.59 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HE9008M6R
₹100.50 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 1.2MHz
- Function
- boost converter
- Features
- Low ripple / low noise architecture;Output short-circuit protection;Soft-start;Low-power standby;Load disconnect
- Operating Voltage
- 1.8V~5V
- Output Voltage
- 3.17V~3.43V
- Output Current
- 250mA
- Quiescent Current
- 650uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.034 g
Overview
The HE9008M6R is a low noise, constant frequency (1.2MHz) switched capacitor voltage doubler. It produces a regulated output voltage from 1.8V to 5V input with up to 100mA of output current. Low external parts count (one flying capacitor and two small bypass capacitors at VIN and VOUT) make the HE9008M6R ideally suited for small, battery-powered applications. The new charge-pump architecture maintains constant switching frequency to no load and reduces both output and input ripple. The HE9008M6R have thermal shutdown capability and can survive a continuous short circuit from VOUT to GND. Built-in softstart circuitry prevents excessive inrush current during start-up. The HE9008M6R is available in the 6-pin SOT-23 package.
Applications
- White LED Backlighting
- Li-Ion Battery Backup Supplies
- Local 3V to 5V Conversion
- Smart Card Readers
- PCMCIA Local 5V Supplies
Key features
- Fixed 3.3V±4% Output
- VIN Range: 1.8V ~ 5V
- Output Current: up to 250mA (VIN = 3V)
- Low Noise Constant Frequency Operation
- Shutdown Current: < 1μA
- Short-Circuit Protection
- Soft-Start
- No Inductors
- Available in Low Profile 6-Lead SOT-23 Package
