HEERMICRDatasheet (PDF)

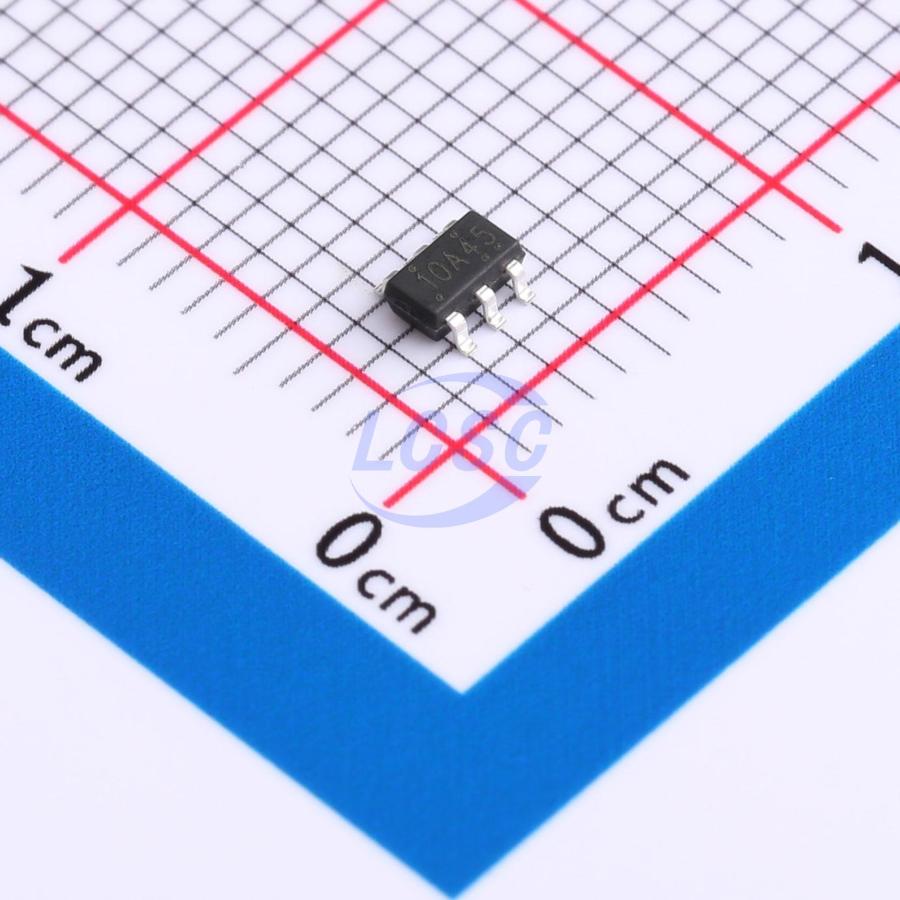

HE9009M6R
340kHz boost converter 350mA 5V SOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS
SOT-23-6ROHS CompliantActive
High Performance Regulated Charge Pump
- Manufacturer
- HEERMICR
- Manufacturer part #
- HE9009M6R
- Store part #
- C5123433
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,630 in stock
#C5123433
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.73 | ₹93.65 |
| 50+ | ₹14.79 | ₹739.50 |
| 150+ | ₹12.81 | ₹1,921.50 |
| 500+ | ₹11.32 | ₹5,660.00 |
| 3,000+ | ₹9.75 | ₹29,250.00 |
| 6,000+ | ₹9.16 | ₹54,960.00 |
5 × ₹18.73
₹93.65
excl. GST
₹110.51 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HE9009M6R
₹93.65 for 5 + GST
Specifications
- Operating Temperature
- -20℃~+85℃
- Frequency - Switching
- 340kHz
- Function
- boost converter
- Features
- Soft-start;Output short-circuit protection;Overcurrent Protection
- Operating Voltage
- 2.8V~5V
- Output Current
- 350mA
- Output Voltage
- 5V
- Quiescent Current
- 2mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.041 g
Overview
The HE9009M6R is a high performance charge pump DC/DC converter that produces a regulated 5V output. No external inductor is required for operation. The operating voltage range is 2.8V to VOUT. Internal soft-start circuitry effectively reduces the in-rush current both while start-up and mode change. The HE9009M6R features very low quiescent current, over current protection and short circuit protection. The HE9009M6R is available in SOT23-6 package.
Applications
- LCD Panel
- Cellular and Smart mobile phone
- PDA/DSC
- Flash LED Driver
Key features
- 2x Mode for Ultra-High Efficiency
- 2.8V to VOUT Range Input Voltage
- Soft Start Function
- Built-In Short-Circuit Protection
- 340KHz Fixed frequency
- Built-in Thermal Protection
- Over Current Protection Function
- Iso<1uA in Shutdown
- SOT23-6 Package
- RoHS Compliant and 100% Lead (Pb)-Free
