HEERMICR

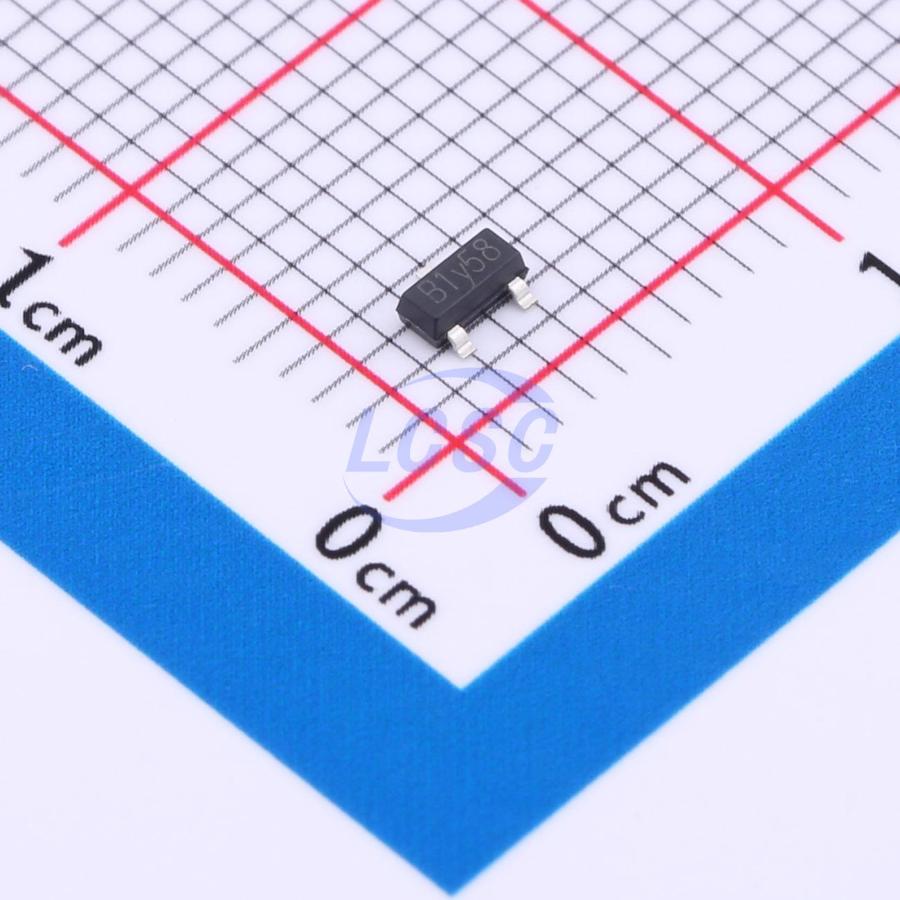

HE9116A33NR

Boost 300kHz Fixed 3.3V SOT-23 Voltage Regulators - DC DC Switching Regulators RoHS

SOT-23ROHS CompliantActive

Synchronous Step-Up DC-DC Converter

Manufacturer: HEERMICR
Manufacturer part #: HE9116A33NR
Store part #: C5123434
Package / case: SOT-23
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,650 in stock

#C5123434

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹11.64	₹58.20
50+	₹9.25	₹462.50
150+	₹8.06	₹1,209.00
500+	₹7.16	₹3,580.00
3,000+	₹6.23	₹18,690.00
6,000+	₹5.86	₹35,160.00

Quantity (min 5, multiples of 5)

5 × ₹11.64

₹58.20

excl. GST

₹68.68 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

HE9116A33NR

₹58.20 for 5 + GST

Specifications

Operating Temperature: -40℃~+85℃
Function: Boost
Frequency - Switching: 300kHz
Number of Outputs: 1
Output Type: Fixed
Topology: Boost
Switch tube (built-in/external): Built-in
Output Voltage: 3.3V
Quiescent Current: 15uA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.044 g

Overview

The HE9116 Series is a Synchronous step-up DC/DC Converter with PFM Control. With the HE Series, a step-up switching DC/ DC converter can be configured by using an external coil, capacitor. The built-in MOSFET is turned off by a protection circuit when the voltage at the LX pin exceeds the limit to prevent it from being damaged.
