NexperiaDatasheet (PDF)

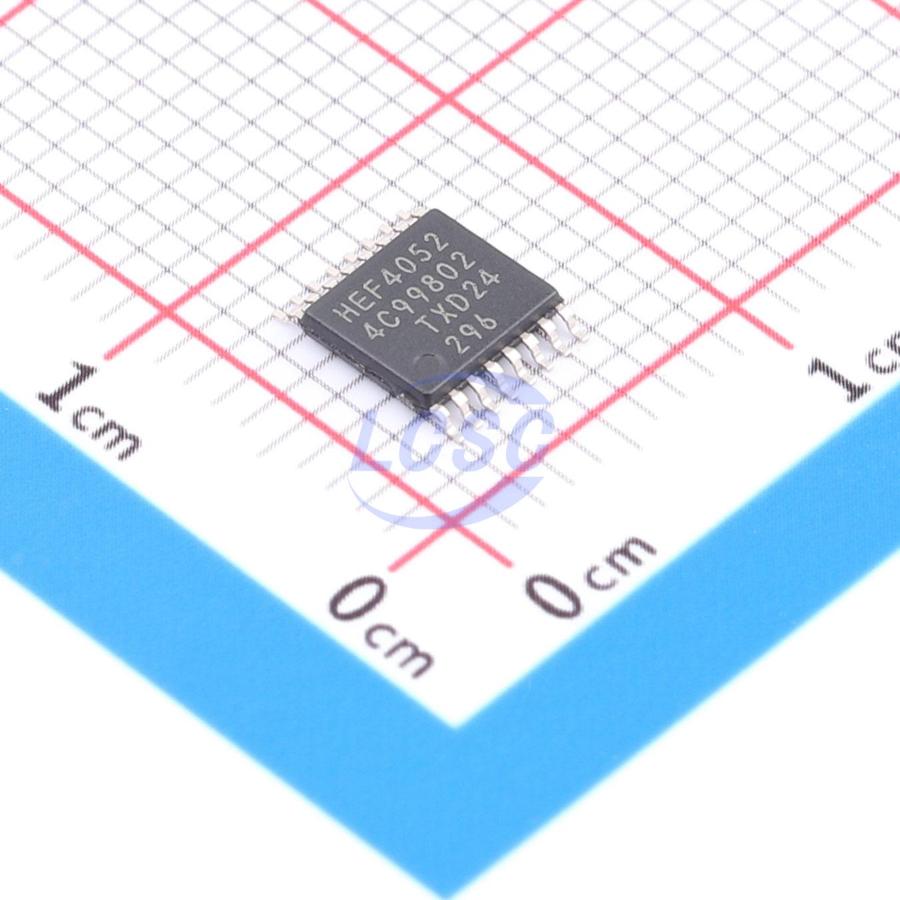

HEF4052BTT,118
3V~15V 350Ω 2 TSSOP-16 Analog Switches, Multiplexers, Demultiplexers RoHS
TSSOP-16ROHS3 CompliantActive
Dual 4-channel analog multiplexer/demultiplexer
- Manufacturer
- Nexperia
- Manufacturer part #
- HEF4052BTT,118
- Store part #
- C545804
- Package / case
- TSSOP-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,957 in stock
#C545804
Stock & price checked 30 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹54.08 | ₹54.08 |
| 10+ | ₹42.36 | ₹423.60 |
| 30+ | ₹37.15 | ₹1,114.50 |
| 100+ | ₹30.85 | ₹3,085.00 |
| 500+ | ₹28.02 | ₹14,010.00 |
| 1,000+ | ₹26.29 | ₹26,290.00 |
1 × ₹54.08
₹54.08
excl. GST
₹63.81 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HEF4052BTT,118
₹54.08 for 1 + GST
Specifications
- Features
- Bidirectional analog channel
- Operating Temperature
- -40℃~+125℃
- Voltage - Supply
- 3V~15V
- Ron
- 350Ω
- Number of Channels
- 2
- Propagation Delay
- 5ns
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 197.5 g
Overview
The HEF4052B is a dual single-pole quad-throw analog switch (2x SP4T) suitable for use in analog or digital 4:1 multiplexer/demultiplexer applications. Each switch features four independent inputs/outputs (nY0, nY1, nY2 and nY3) and a common input/output (nZ). A digital enable input (E) and two digital select inputs (S1 and S2) are common to both switches. When E is HIGH, the switches are turned off. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VDD.
Applications
- Analog multiplexing and demultiplexing
- Digital multiplexing and demultiplexing
- Signal gating
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| HEF4052BTT-Q100,11#C551453Nexperia · TSSOP-16 | Nexperia | TSSOP-16 | 200 | ₹131.77 · 200 in stock | View | |
 | CD4052BPWRG#C19723813HANSCHIP semiconductor · TSSOP-16 | HANSCHIP semiconductor | TSSOP-16 | 1,515 | ₹15.11 · 1,515 in stock | View |
 | CD4052HBEN#C52145432JSCJ · TSSOP-16 | JSCJ | TSSOP-16 | 4,845 | ₹35.88 · 4,845 in stock | View |
| HEF4052BTT,112#C545803Nexperia · TSSOP-16 | Nexperia | TSSOP-16 | On request | ₹16.09 · 0 in stock | View | |
 | DG4052EEQ-T1-GE3#C145484VISHAY · TSSOP-16 | VISHAY | TSSOP-16 | On request | ₹160.80 · 0 in stock | View |
