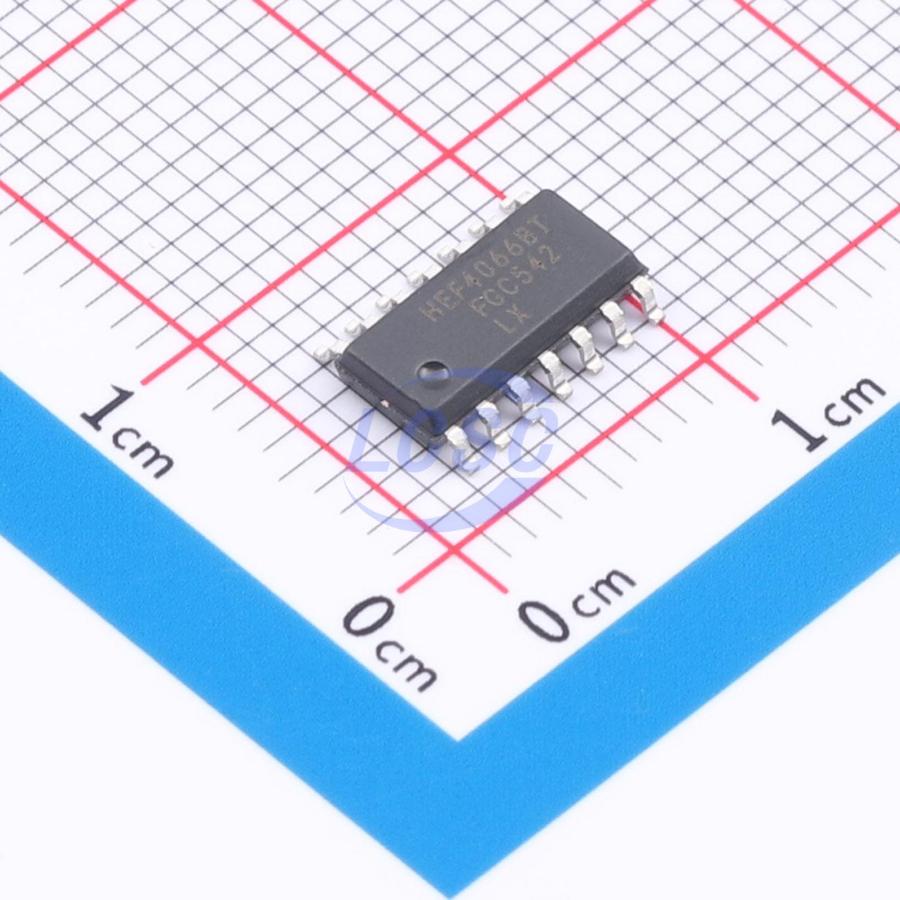

lingxingic

HEF4066BT(LX)

3V~9V 2 350Ω SOP-14 Analog Switches, Multiplexers, Demultiplexers

SOP-14RoHSActive

Manufacturer: lingxingic
Manufacturer part #: HEF4066BT(LX)
Store part #: C52261130
Package / case: SOP-14
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,005 in stock

#C52261130

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹15.73	₹78.65
50+	₹12.49	₹624.50
150+	₹10.86	₹1,629.00
500+	₹9.66	₹4,830.00
2,500+	₹8.68	₹21,700.00
4,000+	₹8.19	₹32,760.00

Quantity (min 5, multiples of 5)

5 × ₹15.73

₹78.65

excl. GST

₹92.81 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

HEF4066BT(LX)

₹78.65 for 5 + GST

Specifications

Features: Bidirectional analog channel
Operating Temperature: -40℃~+85℃
Voltage - Supply: 3V~9V
Number of Channels: 2
Ron: 350Ω
Propagation Delay: 10ns

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.14 g

Overview

The HEF4066 provides four single-pole single-throw analog switch functions. Each switch has two input/output terminals (nY and nZ) and an active-high enable input (nE). When nE is low, the analog switch is turned off. This device is pin-compatible with the HEF4016 but features lower on-resistance. Furthermore, its on-resistance remains relatively constant across the entire input signal range.
