HXY MOSFETDatasheet (PDF)

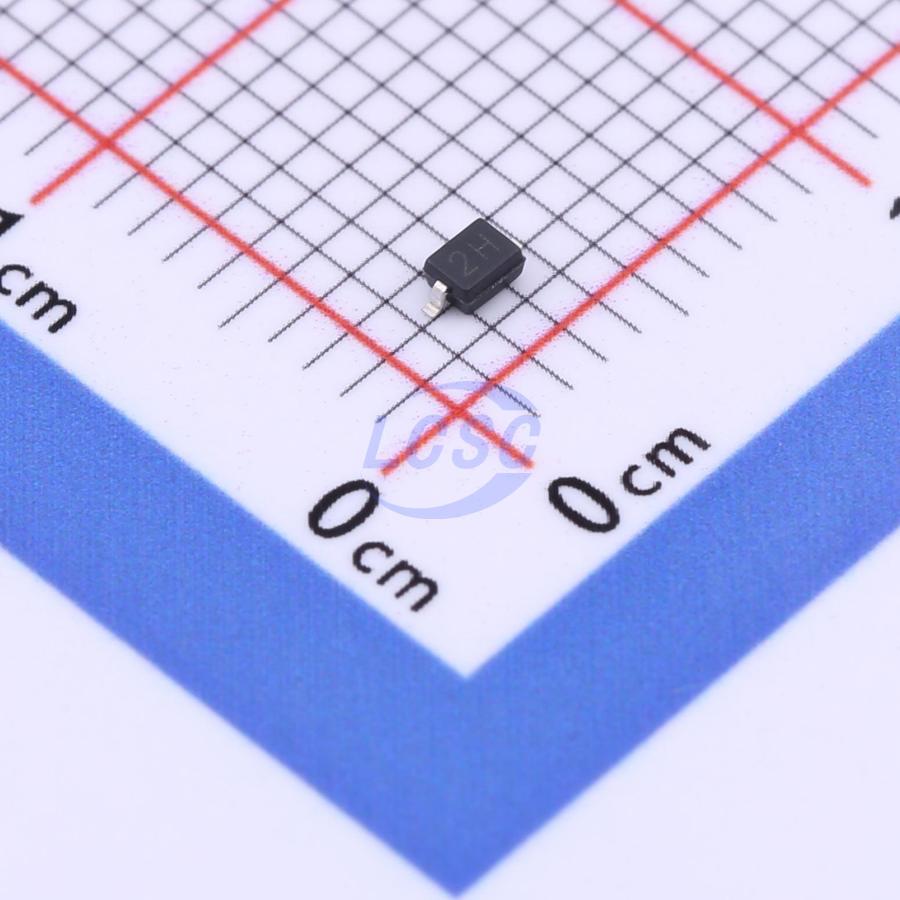

HESDNC24VB1EL-A
45VC Clamp 9.5A Ipp ESD DIODE SOD-323
SOD-323RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HESDNC24VB1EL-A
- Store part #
- C3033494
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
200 in stock
#C3033494
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.87 | ₹97.40 |
| 200+ | ₹3.81 | ₹762.00 |
| 600+ | ₹3.21 | ₹1,926.00 |
| 3,000+ | ₹2.79 | ₹8,370.00 |
| 9,000+ | ₹2.49 | ₹22,410.00 |
| 21,000+ | ₹2.32 | ₹48,720.00 |
20 × ₹4.87
₹97.40
excl. GST
₹114.93 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HESDNC24VB1EL-A
₹97.40 for 20 + GST
Specifications
- Clamping Voltage
- 45V
- Peak Pulse Current (Ipp)
- 9.5A
- Peak Pulse Power Dissipation (Ppp)
- 380W
- Voltage - Breakdown
- 26V
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 100nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.006 g
