HGSEMI

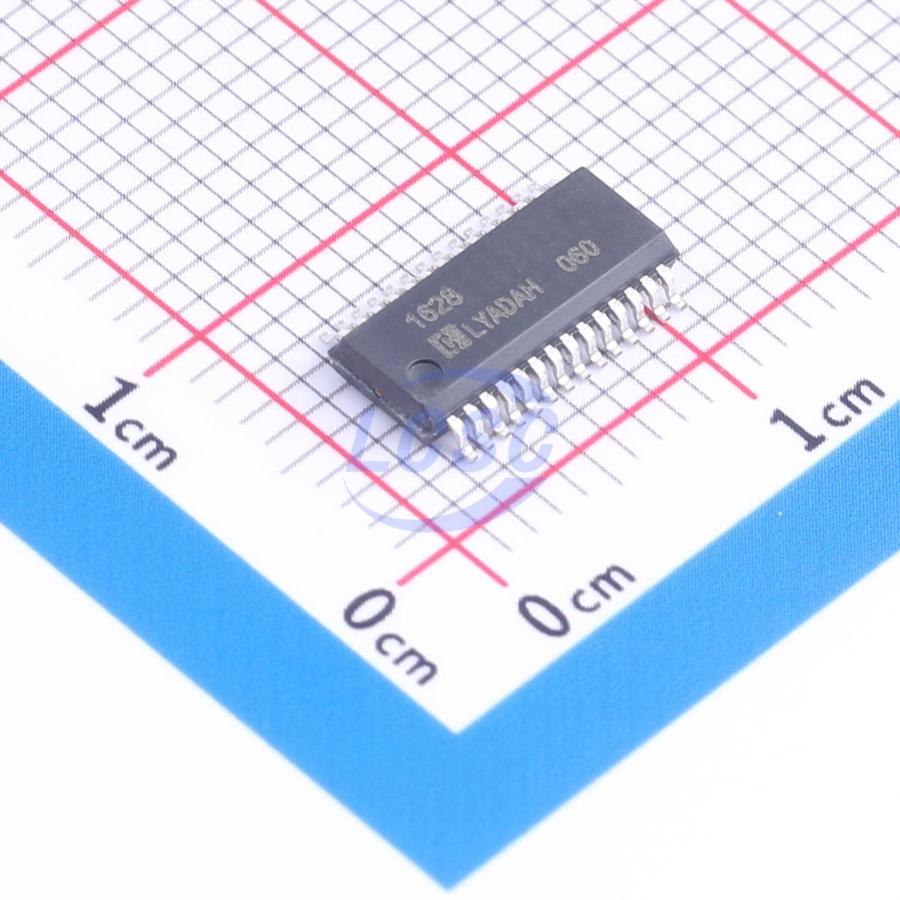

HG1628MS

100mA 2.8V~5.5V SSOP-28 LED Drivers ICs

SSOP-28RoHSActive

Manufacturer: HGSEMI
Manufacturer part #: HG1628MS
Store part #: C53468225
Package / case: SSOP-28
Category: LED Drivers ICs
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

995 in stock

#C53468225

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹20.32	₹101.60
50+	₹16.10	₹805.00
150+	₹14.29	₹2,143.50
500+	₹12.03	₹6,015.00
2,500+	₹11.02	₹27,550.00
5,000+	₹10.43	₹52,150.00

Quantity (min 5, multiples of 5)

5 × ₹20.32

₹101.60

excl. GST

₹119.89 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 50 per tube

HG1628MS

₹101.60 for 5 + GST

Specifications

Switch Tube (Built-In/External): Built-in
Operating temperature: -40℃~+85℃
Output Current: 100mA
Voltage - Input(DC): 2.8V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tube-packed
Standard pack: 50 / Tube
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.541 g

Overview

The HG16xx series are LED display control driver ICs, integrating an MCU digital interface, data latches, LED drivers, and keyboard scanning circuits (on select variants) into a highly reliable MCU peripheral LED driver. Serial data is input to the chip via a 3-wire serial interface, with multiple package options available for user selection.

Applications

Products using LED display panels: smart water heaters, microwave ovens, washing machines, air conditioners, smart electricity meters, etc.

Key features

Operating voltage: 2.8V~5.5V
CMOS process
Multiple display modes: configurable digit and segment count (4~7 digits, 5~13 segments)
Key scan: up to 10×2 matrix
8-level brightness adjustment circuit
3-wire serial interface
Built-in RC oscillator
