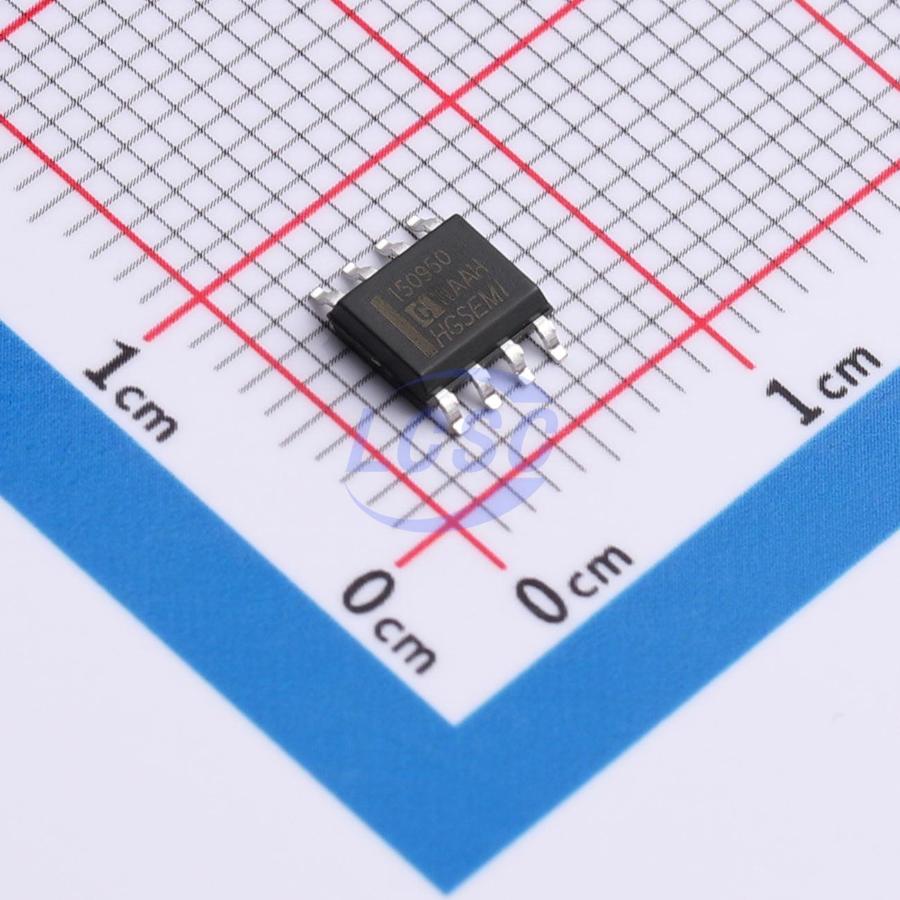

HGXL1509-5.0M/TR
150kHz Step-down type Fixed 2A 5V SOP-8 Voltage Regulators - DC DC Switching Regulators
SOP-8RoHSActive
- Manufacturer
- HGSEMI
- Manufacturer part #
- HGXL1509-5.0M/TR
- Store part #
- C52160376
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,935 in stock
#C52160376
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.86 | ₹104.30 |
| 50+ | ₹16.48 | ₹824.00 |
| 150+ | ₹14.61 | ₹2,191.50 |
| 500+ | ₹12.26 | ₹6,130.00 |
| 2,500+ | ₹11.22 | ₹28,050.00 |
| 5,000+ | ₹10.60 | ₹53,000.00 |
5 × ₹20.86
₹104.30
excl. GST
₹123.07 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HGXL1509-5.0M/TR
₹104.30 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Frequency - Switching
- 150kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Overcurrent Protection
- Output Type
- Fixed
- Topology
- Buck
- Operating Voltage
- 4.5V~40V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 2A
- Output Voltage
- 5V
- Quiescent Current
- 4.5mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.35 g
Overview
HGXL1509 is a fixed-frequency 150KHz pulse-width modulation step-down DC/DC converter capable of driving a 2A load with high efficiency, low ripple, and excellent line and load regulation. This regulator requires minimal external components, is easy to use, and integrates internal frequency compensation and a fixed-frequency oscillator. Its PWM control circuit enables linear duty cycle adjustment from 0 to 100%. Enable and overcurrent protection functions are integrated internally. When secondary current limiting occurs, the operating frequency reduces from 150KHz to 50KHz. The built-in compensation module minimizes the number of external components required.
Applications
- Portable DVD
- LCD monitor/TV
- Battery charger
- ADSL modem
- Telecom/networking equipment
Key features
- Wide input voltage range: 4.5V to 40V
- Available in 3.3V, 5.0V, 12V and adjustable versions
- Output voltage adjustable from 1.23V to 37V
- Maximum duty cycle 100%
- Minimum dropout voltage 1.0V
- Fixed 150KHz switching frequency
- 2A continuous output current capability
- Internally optimized power transistor
- High efficiency
- TTL shutdown capability
- Excellent line and load regulation
- Built-in thermal shutdown
- Built-in current limiting
- Built-in output short-circuit protection
- Available in SOP-8 package
