HXY MOSFETDatasheet (PDF)

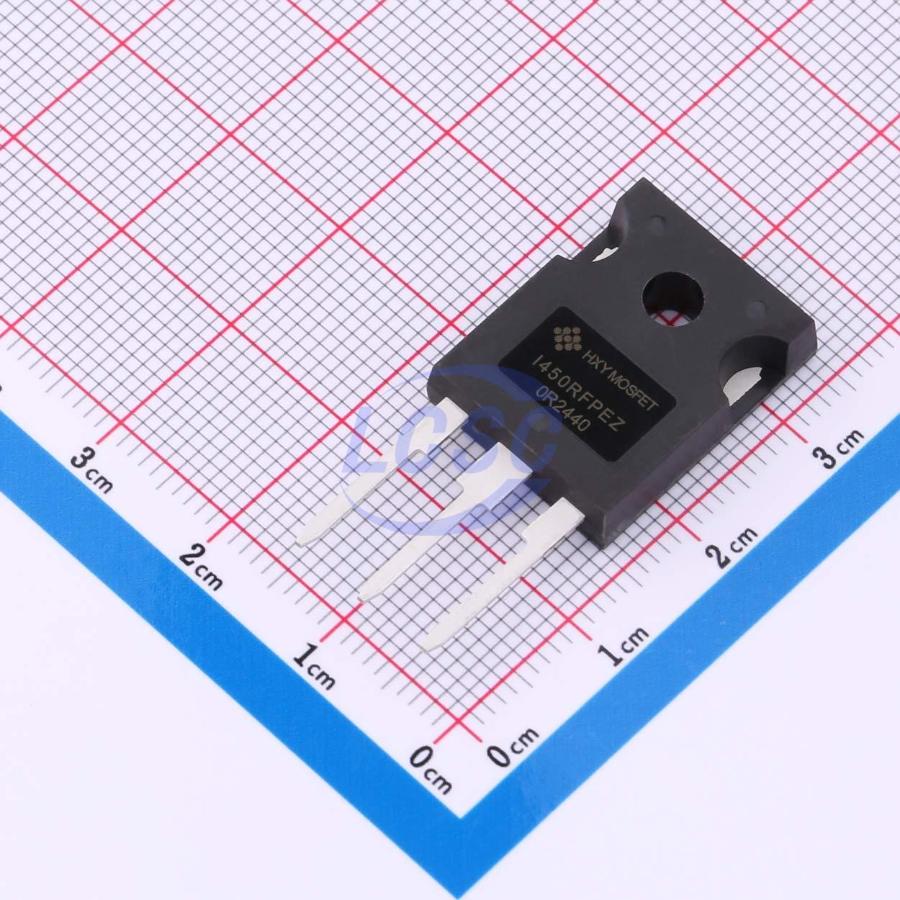

HIRFP450PBF
N-Channel 500V 14A 190W Through Hole TO-247S
TO-247SRoHSActive
MOSFET N-CH 500V 14A TO-247S
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HIRFP450PBF
- Store part #
- C42401333
- Package / case
- TO-247S
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
41 in stock
#C42401333
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹200.49 | ₹200.49 |
| 10+ | ₹169.44 | ₹1,694.40 |
| 30+ | ₹152.28 | ₹4,568.40 |
| 90+ | ₹129.47 | ₹11,652.30 |
| 510+ | ₹120.99 | ₹61,704.90 |
| 990+ | ₹117.09 | ₹1,15,919.10 |
1 × ₹200.49
₹200.49
excl. GST
₹236.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
HIRFP450PBF
₹200.49 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 720pF
- Ciss-Input Capacitance
- 2.6nF
- Pd - Power Dissipation
- 190W
- Configuration
- Standalone
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 500V
- Current - Continuous Drain(Id)
- 14A
- Reverse Transfer Capacitance (Crss)
- 340pF
- RDS(on)
- 430mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 150nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 4.74 g
Overview
The HIRP450PBF utilizes advanced trench technology to deliver excellent RDS(ON), low gate charge, and operation at gate voltages as low as 4.5V. The device is suitable for battery protection or other switching applications.
Applications
- Battery protection
- Load switch
- Uninterruptible power supply
Key features
- VDS = 500V, ID = 14A
- RDS(ON) < 0.5Ω at VGS = 10V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HIRFP450APBF#C42401082HXY MOSFET · TO-247S | HXY MOSFET | TO-247S | 16 | ₹263.65 · 16 in stock | View |
 | IRFP450-HXY#C7469135HXY MOSFET · TO-247 | HXY MOSFET | TO-247 | 405 | ₹201.24 · 405 in stock | View |
 | IXFH34N65X2-HXY#C51949349HXY MOSFET · TO-247 | HXY MOSFET | TO-247 | 35 | ₹445.67 · 35 in stock | View |
 | IPW60R080P7-HXY#C51949355HXY MOSFET · TO-247 | HXY MOSFET | TO-247 | 10 | ₹483.45 · 10 in stock | View |
 | IXFH34N65X3-HXY#C51949356HXY MOSFET · TO-247 | HXY MOSFET | TO-247 | 10 | ₹483.45 · 10 in stock | View |
