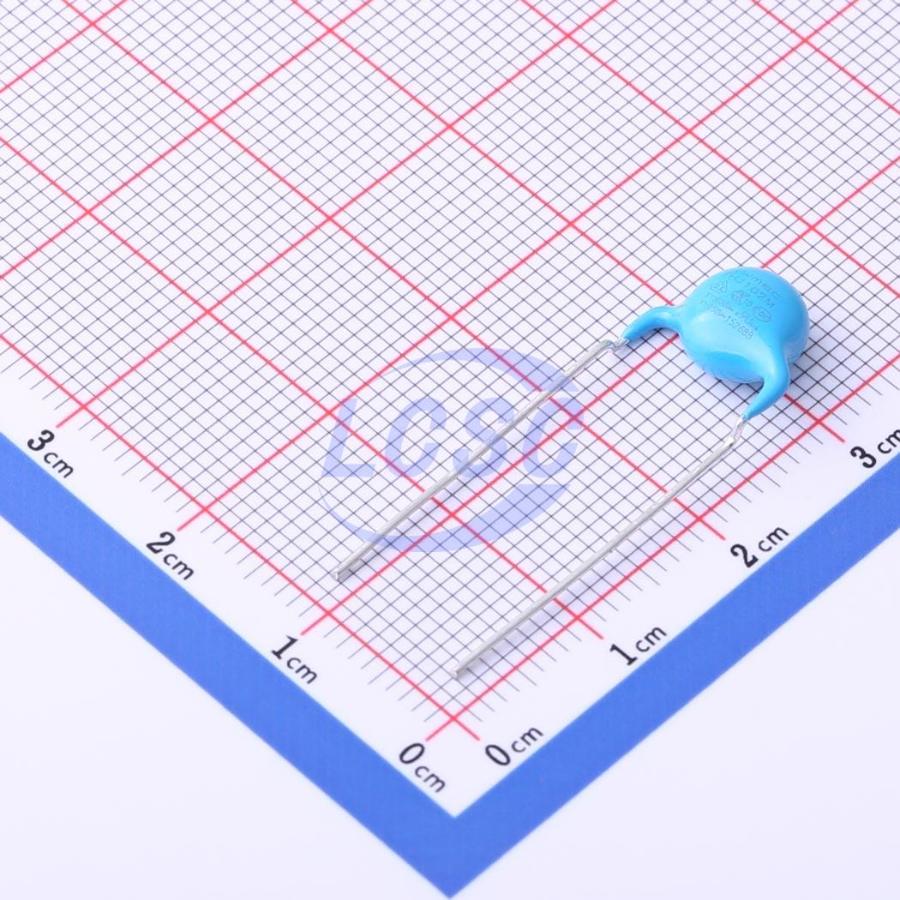

HJE102MG4BW

Key features

• This specification applies to insulated ceramic capacitors for electronic circuits and bypass applications, certified to safety standards including UL, VDE, CSA, CQC, ENEC, KC, and JET.
• Capacitor type: Reinforced insulation type.
• Nominal capacitance is marked using a three-digit code, where the first two digits are significant figures and the third digit indicates the number of zeros.
• Lead configurations:
• Straight lead type (lead code: A: long lead, B: short lead)
• Inner lead type (lead code: D: long lead, C: short lead)
• Outer lead type (lead code: F: long lead, E: short lead)
• Side lead type (lead code G: long lead, H: short lead)
• Double-bend short lead type (lead code: M)
• Type-A straight type (lead code: P: long lead, Q: short lead)
• Marking:
• Type name: HJ/HM
• Nominal capacitance (three-digit code): e.g. 222 = 2200pF
• Tolerance: J = ±5%, K = ±10%, M = ±20%, Z = -20% ~ +80%
• Rated voltage: HJ series: X1: 400/440/760VAC, Y1: 250/400/500VAC; HM series: X1: 400/440VAC, Y2: 250/300VAC
• Trademark: WMEC
• Internal traceability code: 21123
• Safety approval MARK (on body or label)
• Rated operating temperature range: -40°C ~ 125°C
• Standard test conditions:
• Temperature: 15 - 35°C
• Humidity: 45 - 75%
• Atmospheric pressure: 86 ~ 106 kPa (in case of dispute or at customer request, use temperature 25±2°C, humidity 60 - 70%, atmospheric pressure 86 ~ 106 kPa)
• T1 = 1.2μs = 1.67T, T2 = 50μs
• Within one week after the impulse voltage test, conduct the endurance test. Place capacitors in the test chamber with a minimum spacing of 25mm, subject to 1.7 times the rated voltage, at a temperature of 125±2°C for 1000 hours. Every 1 hour, raise the voltage to 1000V for an interval of 0.1 seconds.
• Capacitance-temperature characteristics: Char: B(Y5P), Char: E(Y5U), Char: F(Y5V), Char: SL
• Frequency - Impedance characteristics
