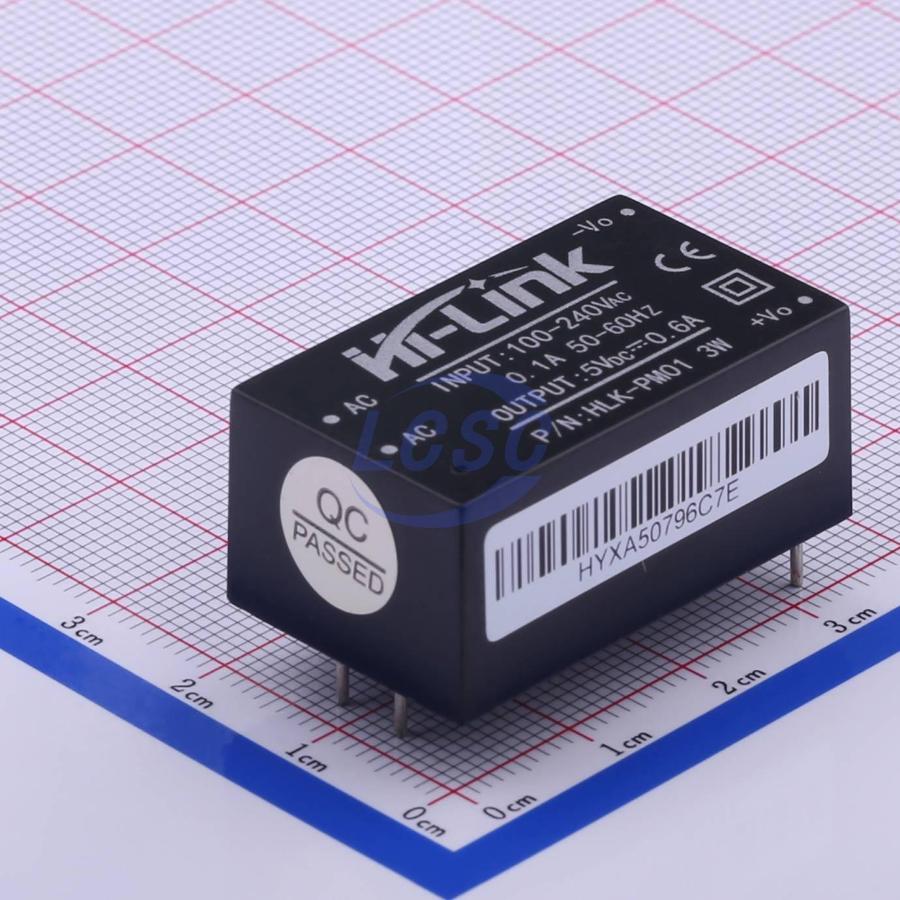

HLK-PM01

5V 700mA AC-DC Through Hole,34x20mm AC DC Converters

PopularThrough Hole,34x20mmRoHSActive

3W Ultra-Small Series AC-DC Module Power Supply

Manufacturer: HI-LINK
Manufacturer part #: HLK-PM01
Store part #: C209903
Package / case: Through Hole,34x20mm
Category: AC DC Converters
Packaging: Box-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,526 in stock

#C209903

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹341.25	₹341.25
10+	₹279.96	₹2,799.60
30+	₹241.57	₹7,247.10
100+	₹202.27	₹20,227.00
500+	₹184.60	₹92,300.00
1,000+	₹176.85	₹1,76,850.00

Quantity (min 1)

1 × ₹341.25

₹341.25

excl. GST

₹402.67 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 100 per box

HLK-PM01

₹341.25 for 1 + GST

Specifications

Quiescent Dissipation: 0.1W
Height: 15mm
Ripple Noise: 100mVp-p
Output Voltage: 5V
Output Current(Max): 700mA
Output Power: 3W
Isolation Voltage(Vrms): 3kV
Voltage - Input(DC): 85VAC~265VAC;120V~350V
Operating Temperature Range: -25℃~+60℃
Length: 34mm
Output Voltage Accuracy: ±0.2%
Width: 20mm
Conversion Efficiency: 73%
Conversion Type: AC-DC
Features: Short Circuit Protection;Over Current Protection;Fault self-recovery

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Box-packed
Standard pack: 100 / Box
Sold per: Piece
Minimum order: 1
Unit weight: 18.64 g

Overview

The 3W ultra-small series module power supply is a small-volume, high-efficiency AC DC power module supply. It has the advantages of global input voltage range, low temperature rise, low power consumption, high efficiency, high reliability and high safety isolation. It has been widely used in smart home, automation control, communications equipment, instrumentation and other industries.

Applications

Smart home
Automation control
Communications equipment
Instrumentation

Key features

Ultra-thin, ultra-small, smallest volume
Global universal input voltage (90~265Vac)
Low power consumption, green environmental protection, no-load loss<0.1W
Low ripple, low noise
High output short circuit and over-current protection and self recovery
High efficiency, high power density
Input and output isolation voltage 3000Vac
100% full load aging and testing
High reliability, long life design, continuous working time is greater than 100,000 hours
Meet UL, CE requirements; product design to meet EMC and safety testing requirement
Using high-quality environmentally friendly waterproof plastic potting, moisture, vibration, water and dust to meet IP65 standards
Economic solutions, cost-effective
Work without external circuit
