VBsemi ElecDatasheet (PDF)

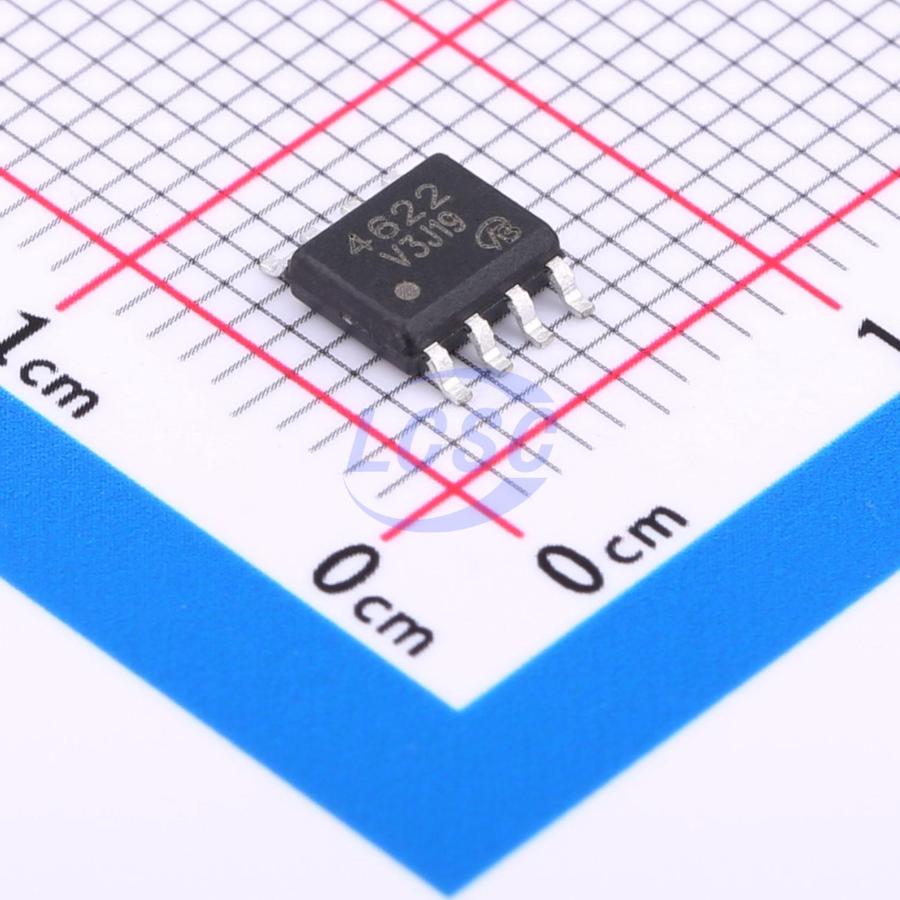

HM4622-VB
N-Channel+P-Channel Array 30V 8A 3.1W Surface Mount SO-8
SO-8RoHSActive
MOSFET N-CH+P-CH ARR 30V 8A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- HM4622-VB
- Store part #
- C19188157
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
36 in stock
#C19188157
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹53.56 | ₹53.56 |
| 10+ | ₹42.51 | ₹425.10 |
| 30+ | ₹37.84 | ₹1,135.20 |
| 100+ | ₹31.88 | ₹3,188.00 |
| 500+ | ₹29.33 | ₹14,665.00 |
| 1,000+ | ₹27.64 | ₹27,640.00 |
1 × ₹53.56
₹53.56
excl. GST
₹63.20 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
HM4622-VB
₹53.56 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 115pF
- Current - Continuous Drain(Id)
- 8A
- Ciss-Input Capacitance
- 620pF
- Pd - Power Dissipation
- 3.1W
- Reverse Transfer Capacitance (Crss)
- 57pF
- RDS(on)
- 50mΩ@4.5V
- Number
- 1 N-Channel + 1 P-Channel
- Gate Charge(Qg)
- 18.5nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel + P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.16 g
Overview
Applications
- Motor Drive - Power Bank
Key features
- Halogen-free per IEC 61249-2-21
- Trench power MOSFET
- 100% Rg and UIS tested
- RoHS compliant per directive 2002/95/EC
