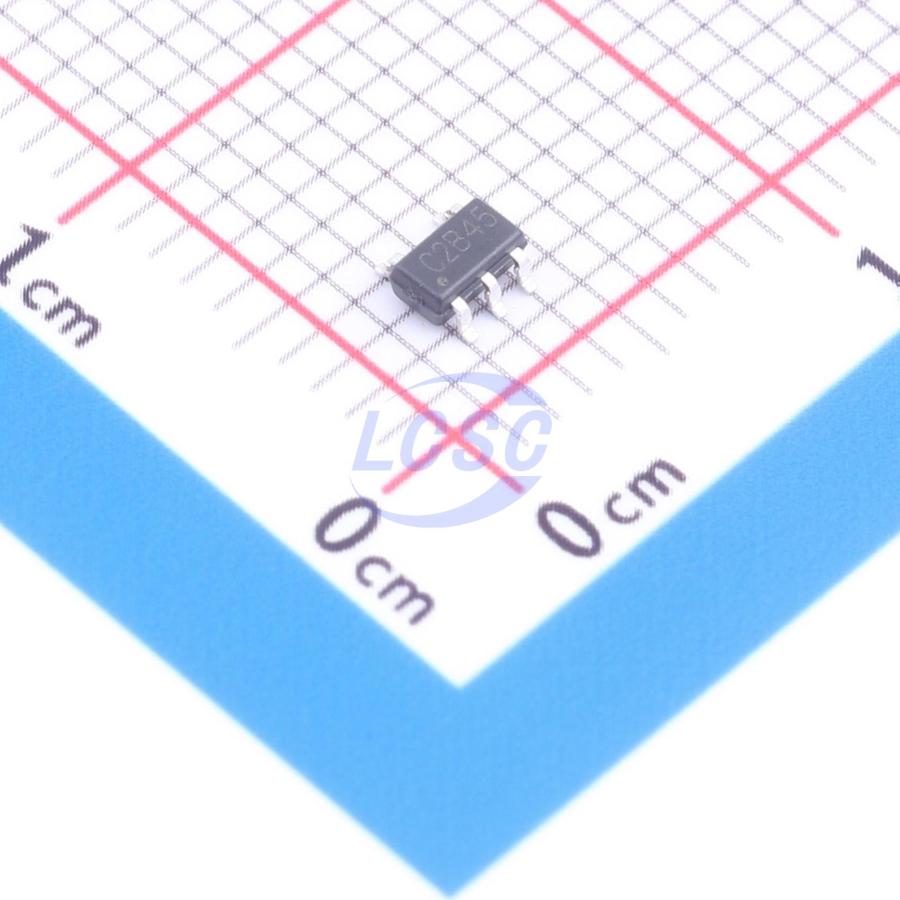

GATEMODE

HM6233

1.2MHz Boost Adjustable 3A 1.233V~30V SOT-23-5 Voltage Regulators - DC DC Switching Regulators

SOT-23-5RoHSActive

Manufacturer: GATEMODE
Manufacturer part #: HM6233
Store part #: C53133560
Package / case: SOT-23-5
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,650 in stock

#C53133560

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
10+	₹9.57	₹95.70
100+	₹7.62	₹762.00
300+	₹6.54	₹1,962.00
3,000+	₹5.83	₹17,490.00
6,000+	₹5.37	₹32,220.00
9,000+	₹4.64	₹41,760.00

Quantity (min 10, multiples of 10)

10 × ₹9.57

₹95.70

excl. GST

₹112.93 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

HM6233

₹95.70 for 10 + GST

Specifications

Operating Temperature: -40℃~+85℃
Frequency - Switching: 1.2MHz
Function: Boost
Number of Outputs: 1
Features: Light load efficient mode;Overcurrent Protection
Output Type: Adjustable
Topology: Boost
Operating Voltage: 2.5V~5.5V
Switch tube (built-in/external): Built-in
Output Current: 3A
Output Voltage: 1.233V~30V
Quiescent Current: 45uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 1 g

Overview

HM6233 is a constant-frequency current-mode boost converter designed for small, low-power applications. Its 1.2MHz switching frequency allows the use of miniature, low-cost capacitors and inductors with heights of 2mm or less. Internal soft-start reduces inrush current and extends battery life. The device features automatic switching to pulse frequency modulation mode under light load, and includes undervoltage lockout, current limiting, and thermal overload protection to prevent damage during output overload conditions. The HM6233 is available in a compact SOT23-5 package.
