VBsemi ElecDatasheet (PDF)

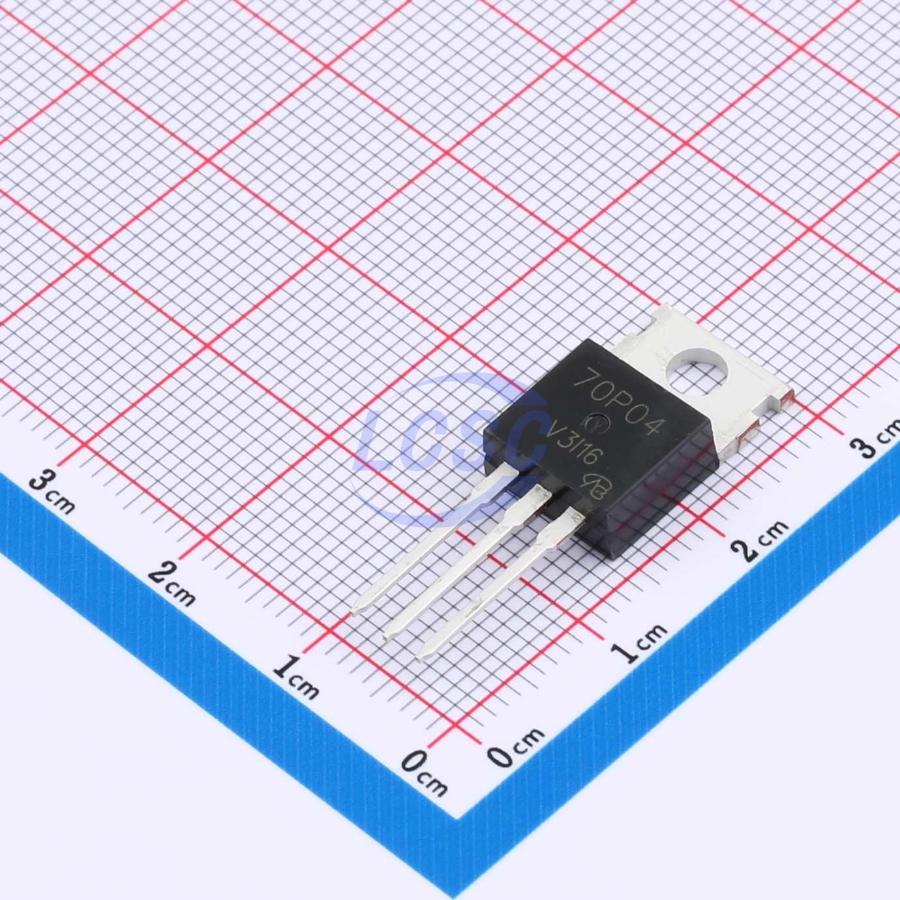

HM70P04-VB
P-Channel 40V 110A 375W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET P-CH 40V 110A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- HM70P04-VB
- Store part #
- C18212456
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
37 in stock
#C18212456
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹186.45 | ₹186.45 |
| 10+ | ₹157.54 | ₹1,575.40 |
| 50+ | ₹121.91 | ₹6,095.50 |
| 100+ | ₹103.87 | ₹10,387.00 |
| 500+ | ₹96.05 | ₹48,025.00 |
| 1,000+ | ₹92.36 | ₹92,360.00 |
1 × ₹186.45
₹186.45
excl. GST
₹220.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
HM70P04-VB
₹186.45 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Output Capacitance(Coss)
- 1.51nF
- Current - Continuous Drain(Id)
- 110A
- Ciss-Input Capacitance
- 11.3nF
- Pd - Power Dissipation
- 375W
- Reverse Transfer Capacitance (Crss)
- 1nF
- RDS(on)
- 4mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 280nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.84 g
Overview
Applications
- Load switch for portable applications
Key features
- Trench power MOSFET
- P-channel MOSFET
