HXY MOSFETDatasheet (PDF)

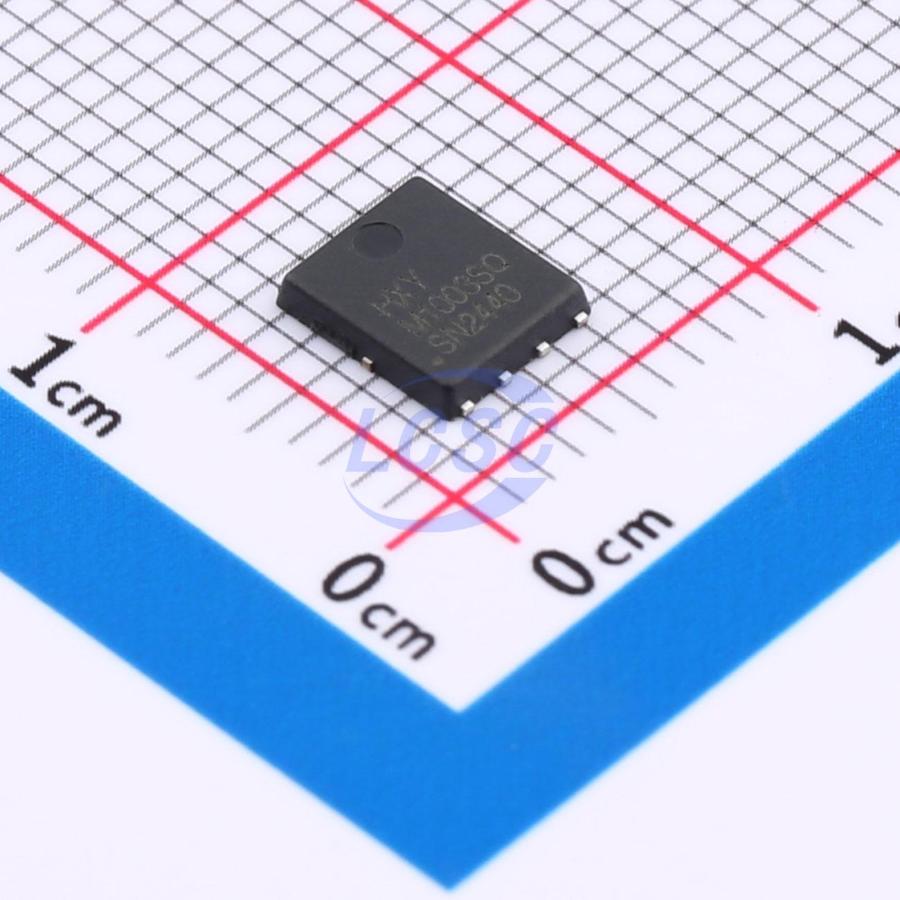

HMCAC10H03ATP
30V 150A 187W Surface Mount DFN-8L(5x6)
DFN-8L(5x6)RoHSSold out at source
MOSFET 30V 150A DFN-8L(5x6)
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HMCAC10H03ATP
- Store part #
- C42401473
- Package / case
- DFN-8L(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
76 in stock
#C42401473
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹75.24 | ₹75.24 |
| 10+ | ₹59.63 | ₹596.30 |
| 30+ | ₹52.91 | ₹1,587.30 |
| 100+ | ₹44.66 | ₹4,466.00 |
| 500+ | ₹40.99 | ₹20,495.00 |
| 1,000+ | ₹38.82 | ₹38,820.00 |
1 × ₹75.24
₹75.24
excl. GST
₹88.78 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
HMCAC10H03ATP
₹75.24 for 1 + GST
Specifications
- Drain to Source Voltage
- 30V
- Configuration
- Standalone
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 627pF
- Current - Continuous Drain(Id)
- 150A
- Ciss-Input Capacitance
- 6.04nF
- Pd - Power Dissipation
- 150W
- Reverse Transfer Capacitance (Crss)
- 551pF
- RDS(on)
- 1.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 105nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Sold out at source
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.137 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AON6512-HXY#C51949186HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 25 | ₹52.31 · 25 in stock | View |
 | NTMFS4C022NT1G-HXY#C51949289HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 61 | ₹59.93 · 61 in stock | View |
 | FDMS8018-HXY#C51949298HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 96 | ₹98.37 · 96 in stock | View |
 | DI150N03PQ-HXY#C51949301HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 85 | ₹51.98 · 85 in stock | View |
 | DMTH32M5LPSQ-13-HXY#C51949303HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 48 | ₹149.91 · 48 in stock | View |
