HXY MOSFETDatasheet (PDF)

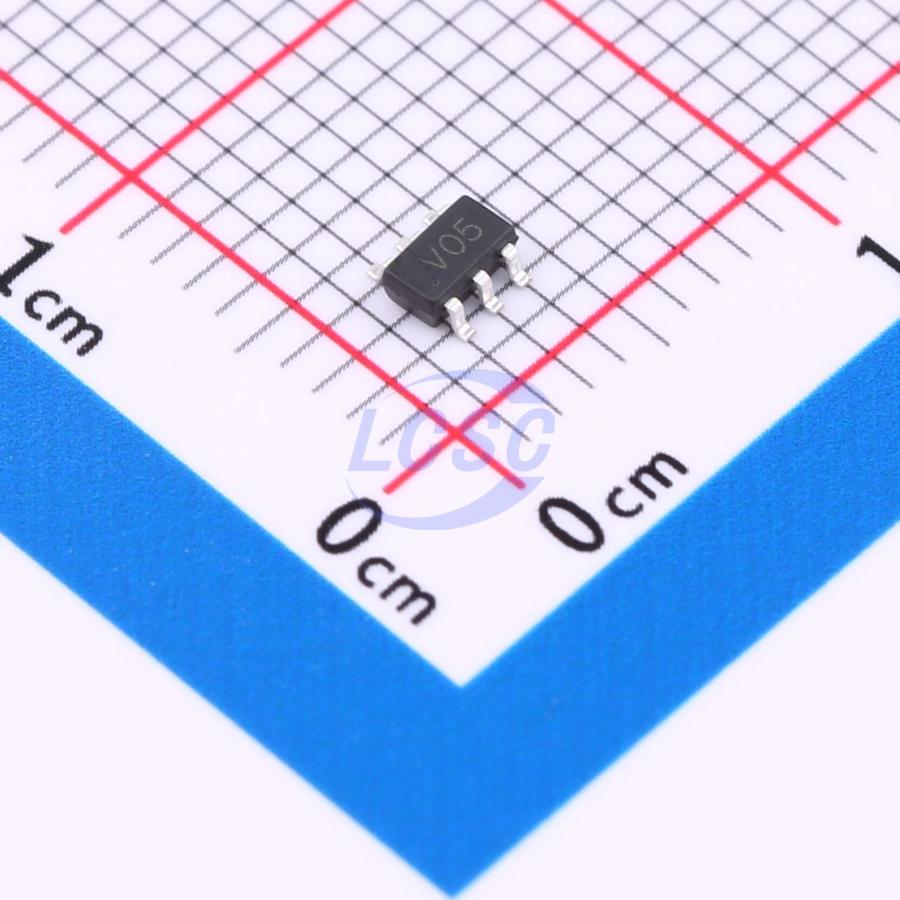

HPJSRV05-4-AU
12VC 1.8VC Clamp 4A@8/20us Ipp ESD DIODE SOT-23-6L
SOT-23-6LRoHSActive
ESD DIODE 5VWM 12VC 1.8VC SOT-23-6L
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HPJSRV05-4-AU
- Store part #
- C22440149
- Package / case
- SOT-23-6L
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
60 in stock
#C22440149
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.70 | ₹83.50 |
| 50+ | ₹13.45 | ₹672.50 |
| 150+ | ₹11.83 | ₹1,774.50 |
| 500+ | ₹10.61 | ₹5,305.00 |
| 3,000+ | ₹9.63 | ₹28,890.00 |
| 6,000+ | ₹9.14 | ₹54,840.00 |
5 × ₹16.70
₹83.50
excl. GST
₹98.53 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HPJSRV05-4-AU
₹83.50 for 5 + GST
Specifications
- Clamping Voltage
- 12V;1.8V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 4A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 55W@8/20us
- Voltage - Breakdown
- 6V
- Number of Channels
- 5
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.028 g
