VBsemi ElecDatasheet (PDF)

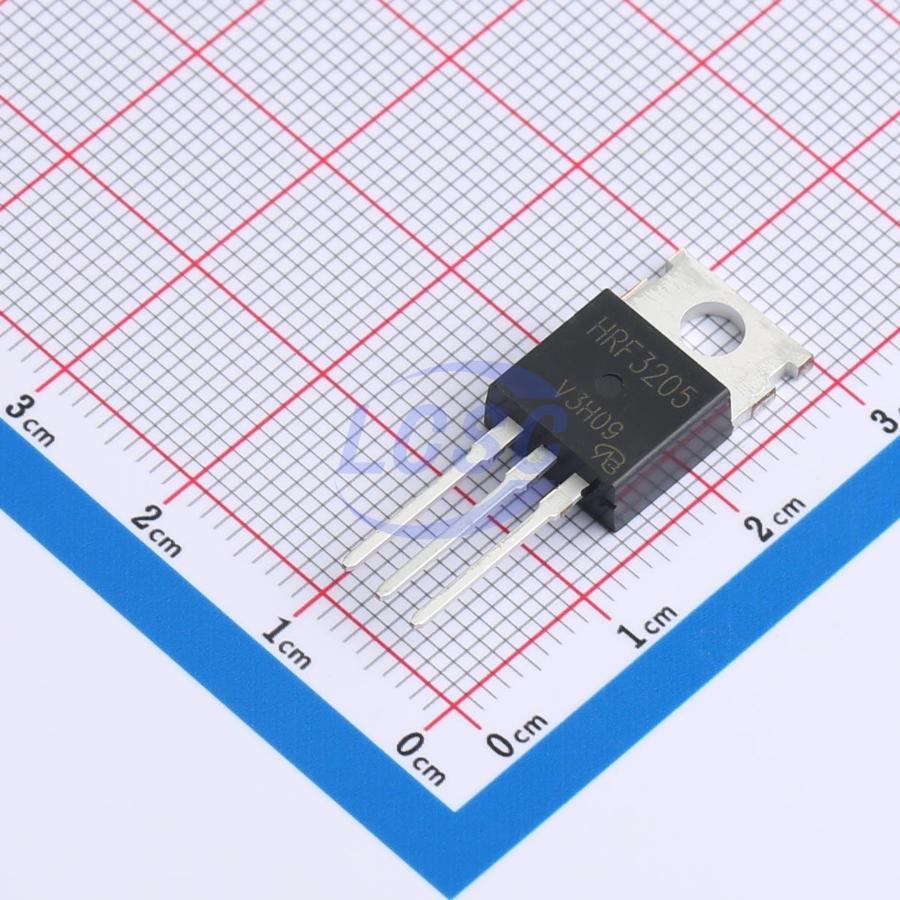

HRF3205-VB
N-Channel 60V 120A 136W Through Hole TO-220AB
TO-220ABROHS CompliantActive
MOSFET N-CH 60V 120A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- HRF3205-VB
- Store part #
- C7569010
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
37 in stock
#C7569010
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹176.45 | ₹176.45 |
| 10+ | ₹148.85 | ₹1,488.50 |
| 50+ | ₹100.40 | ₹5,020.00 |
| 100+ | ₹86.71 | ₹8,671.00 |
| 500+ | ₹78.45 | ₹39,225.00 |
| 1,000+ | ₹74.33 | ₹74,330.00 |
1 × ₹176.45
₹176.45
excl. GST
₹208.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
HRF3205-VB
₹176.45 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 570pF
- Current - Continuous Drain(Id)
- 120A
- Ciss-Input Capacitance
- 6.8nF
- Pd - Power Dissipation
- 136W
- Reverse Transfer Capacitance (Crss)
- 325pF
- RDS(on)
- 5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 47nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2 g
Overview
Applications
- Synchronous rectification
- Synchronous buck converter
- OR-ing
- Load switch
- Motor drive switch
Key features
- Junction temperature 175 °C
- Trench power MOSFET
- Material classification: RoHS compliant
