HS96L03W2C03

The HS96L03W2C03 is packaged as 1 piece per bag, with a minimum and standard packaging of 1 unit. As an OLED display module with a glass panel, it requires careful handling to prevent mechanical stress on the display glass and FPC ribbon connections. The display area is 0.96 inches diagonal with a 128 × 64 pixel resolution. No specific SMT assembly is required, as this module is typically connector-mounted. The LCSC product page lists CNHTS 8517799000, classifying it as a communication-related subassembly.

The HS96L03W2C03 uses the I2C (two-wire) serial interface, as indicated by the product description. The SSD1315 controller supports standard I2C addressing, allowing easy integration with a wide range of microcontrollers. The display's operating voltage and logic level compatibility should be confirmed in the datasheet (available at LCSC LCSC# C5248080). Typical SSD1315-based 0.96-inch I2C OLED modules operate with a supply voltage of 3.3V or 5V with built-in charge pump circuits for the OLED panel.

The SSD1315 controller used in the HS96L03W2C03 is register-compatible with the widely used SSD1306 in most operational modes, allowing many SSD1306-targeting firmware libraries (such as Adafruit SSD1306 for Arduino, or u8g2) to drive this module without modification. However, minor initialization differences may exist; it is advisable to review the SSD1315 datasheet available via LCSC (C5248080 datasheet PDF) to confirm any divergence in command set before relying on existing SSD1306 code in production.

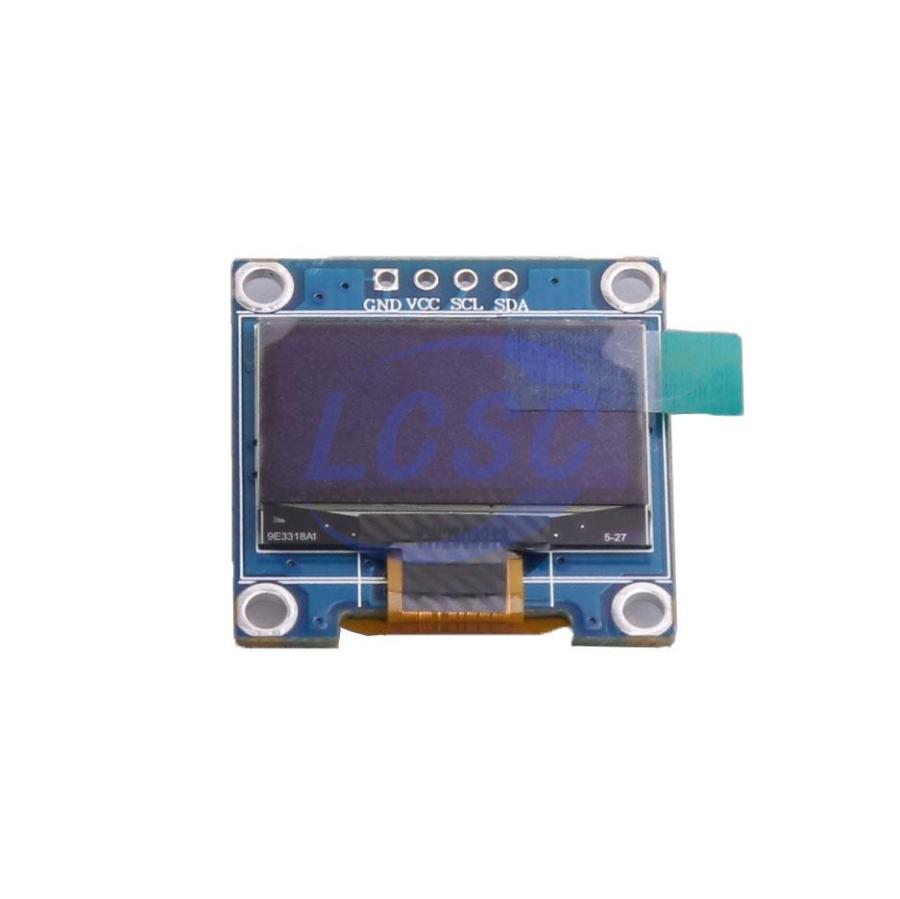

The HS96L03W2C03 is a 0.96-inch monochrome OLED graphic display module with a resolution of 128 × 64 pixels. It uses the SSD1315 display controller chip and communicates via the I2C interface. The display is categorized under Optoelectronics / LCD, OLED, Graphic (LCSC# C5248080) and is RoHS compliant. It is sold individually (minimum order: 1 piece, standard packaging: 1 piece per bag). The part is available in a small lot from HS (Zhongshan) manufacturer.

On LCSC (LCSC# C5248080), the HS96L03W2C03 is priced as follows: 1+ pcs: $2.3178 each 10+ pcs: $1.9264 each 30+ pcs: $1.7177 each 100+ pcs: $1.5285 each 500+ pcs: $1.4395 each 1,000+ pcs: $1.4039 each At the time of this FAQ, only 9 units are in stock. For volume purchases, it is advisable to request a quote or check for restocking lead times. The minimum order is 1 piece.
